Bike details
Overview
Key information split into simple groups.

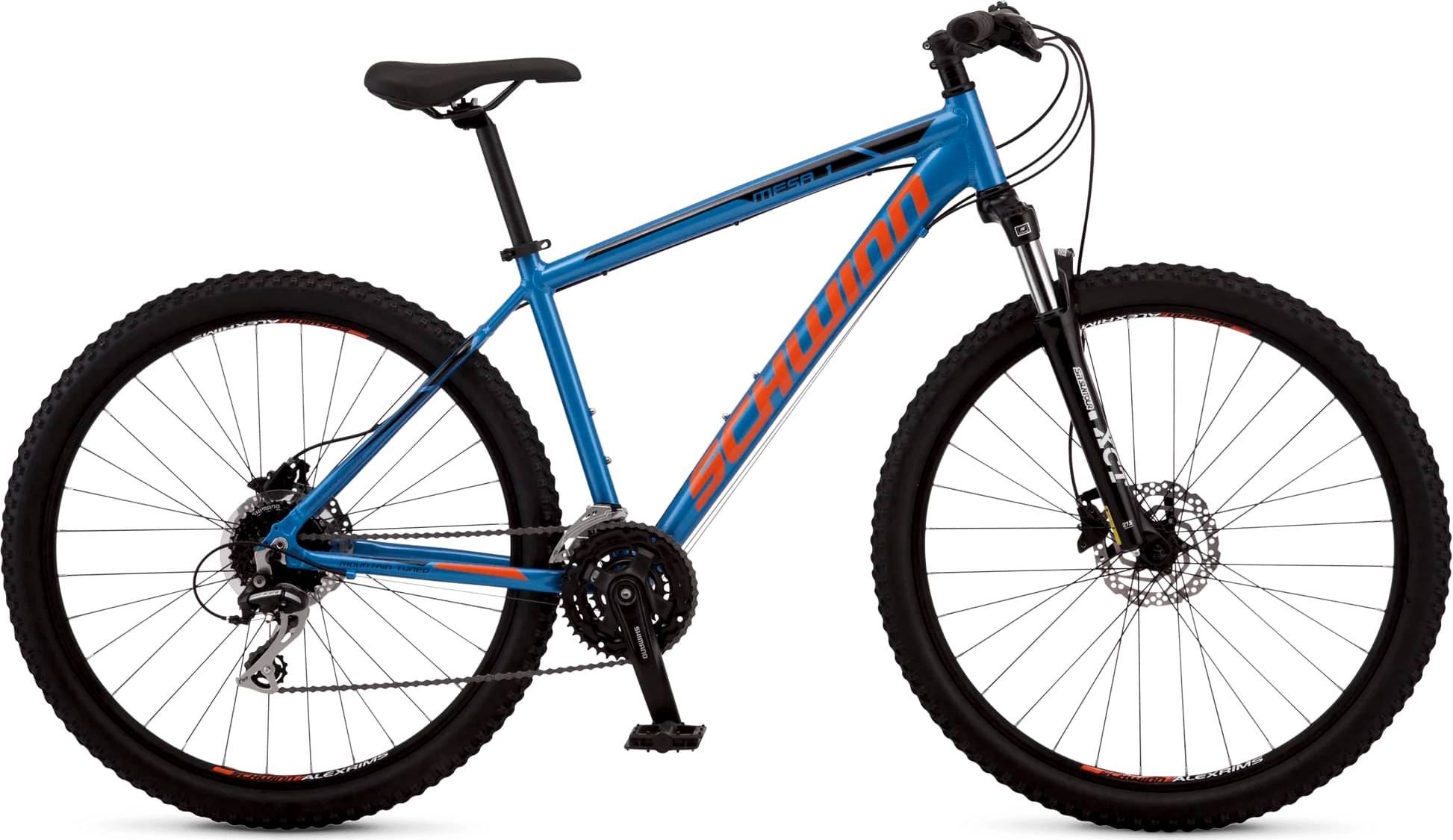

Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour XCT30 DS, 27.5", steel steerer, 9 mm x 100 mm QR, 80 mm travel
Drivetrain
Rear Derailleur
Shimano Acera RD-M360
Front Derailleur
Shimano FD-TY700, 31.8 mm clamp
Shift Levers
Shimano EF500 EZ-FIRE, 24-speed
Crank
Shimano FC-TY701, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z8.1
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Shimano FH-TX505, aluminum, 10 mm x 135 mm QR, 32H, CENTER LOCK
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 27.5 in x 2.25 in, wire bead
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless, 6° rise, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 700 mm width, 25 mm rise, 31.8 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.497 mm | 1.657 mm | 1.55 mm | 1.489 mm | 1.435 mm |
| Bottom Bracket Height | 313 mm | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 596 mm | 607 mm | 632 mm | 657 mm | 683 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 549.6 mm | 599.5 mm | 599.5 mm | 608.9 mm | 618.3 mm |
| Reach | 367.2 mm | 361.7 mm | 386.7 mm | 408.8 mm | 431 mm |
| Top Tube Length | 525 mm | 545 mm | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 315 mm | 330 mm | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1022 mm | 1037 mm | 1062 mm | 1087 mm | 1113 mm |
| Bottom Bracket Drop | 42 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 674 mm | 702 mm | 747 mm | 783 mm | 817 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
