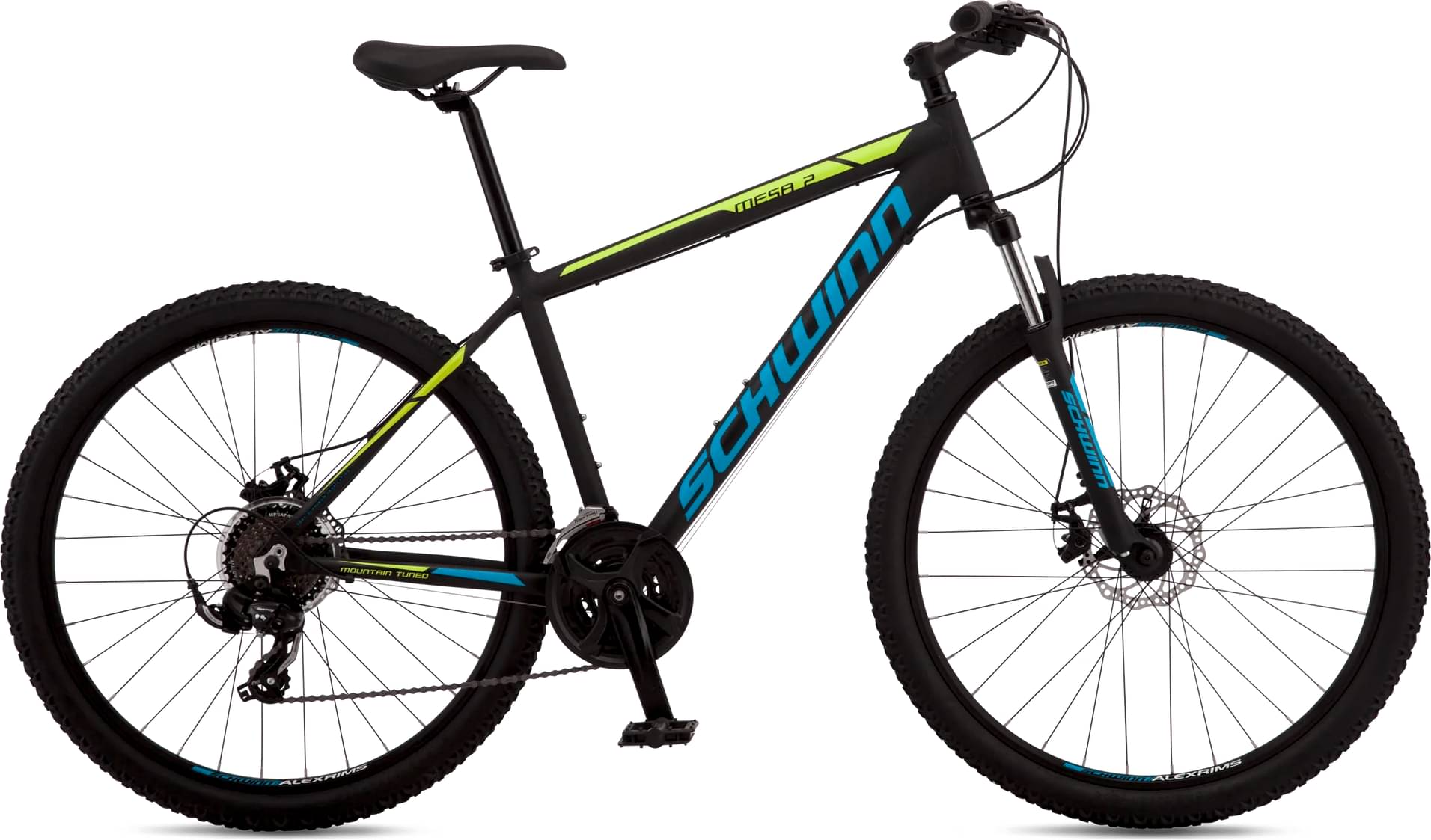

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Zoom HL565, 27.5", steel steerer, 9 mm x 100 mm QR, 80 mm travel
Drivetrain
Rear Derailleur
Shimano RD-TY500
Front Derailleur
Shimano FD-TY500, 31.8 mm clamp
Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain disc, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Radius BR-CX7, mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 313 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 587 mm | 609 mm | 609 mm | 648 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 394 mm | 431 mm | 470 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1013 mm | 1041 mm | 1041 mm | 1080 mm |
| Bottom Bracket Drop | 42 mm | 41 mm | 41 mm | 41 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
