Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 26" / 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube

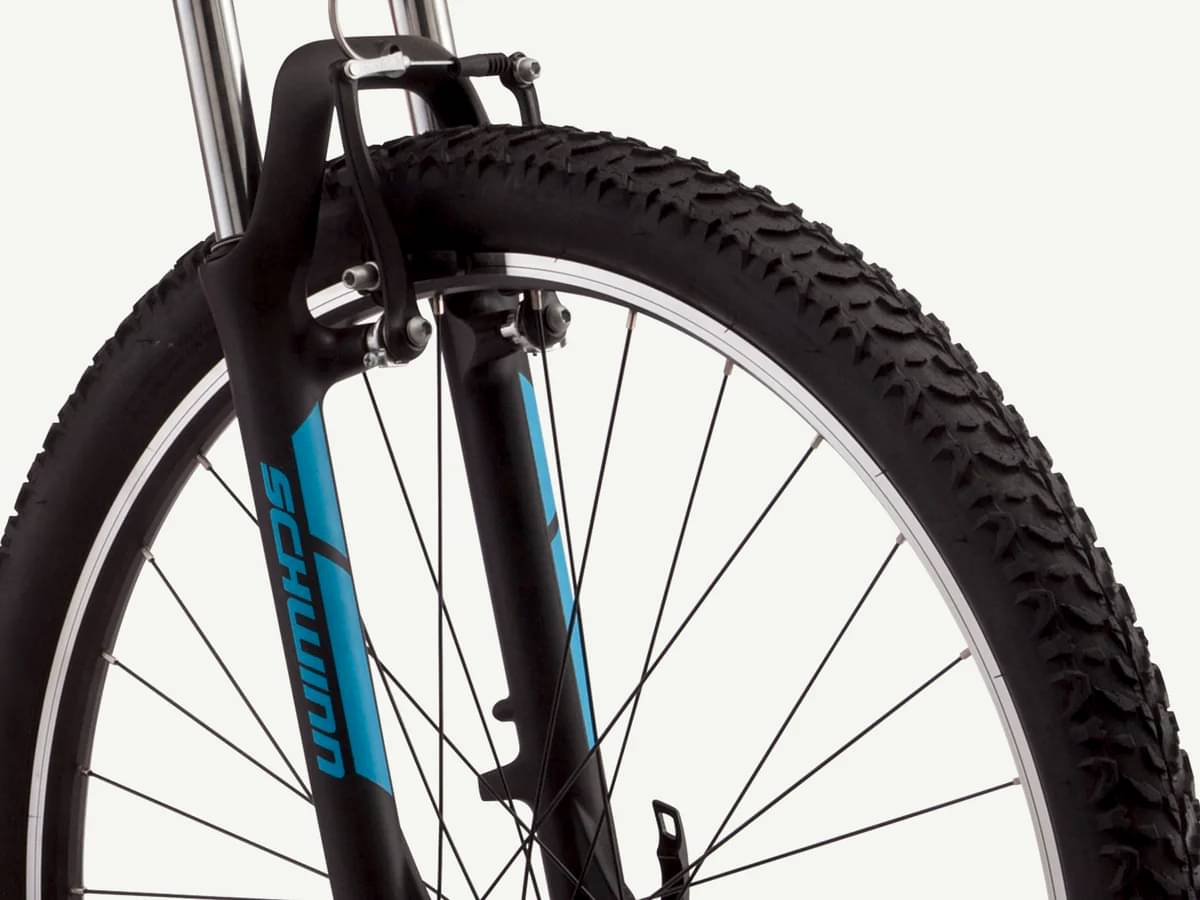

Suspension Fork
Zoom HL565, 26"/27.5", steel steerer, 9mm x 100mm QR, 80mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano Tourney, 31.8 mm clamp

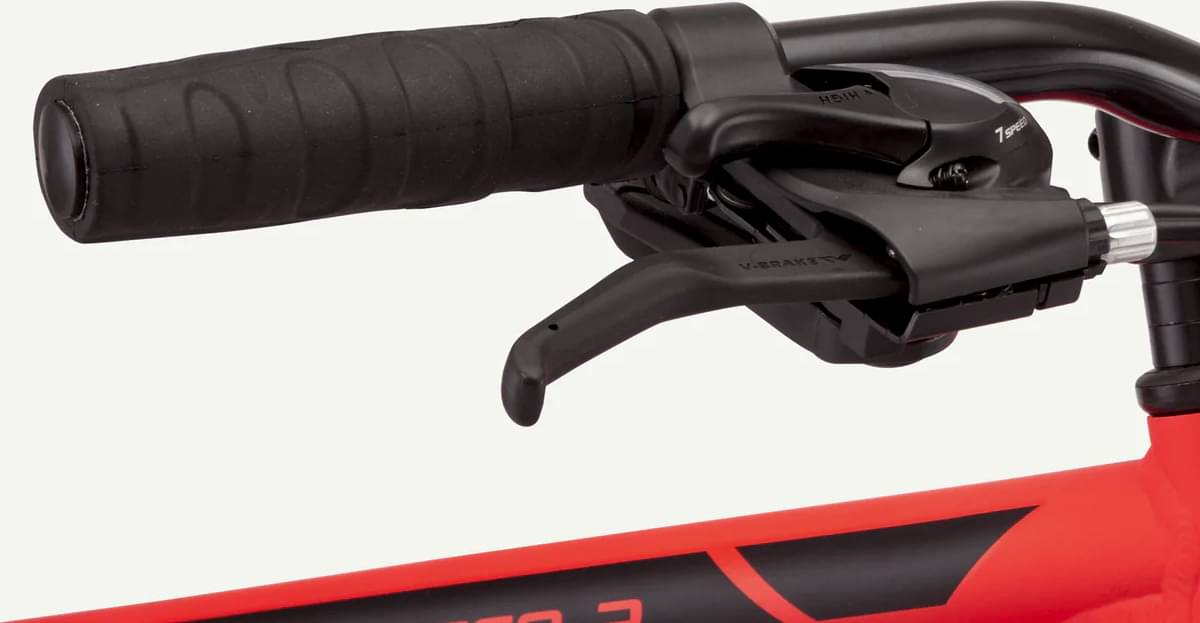

Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 26 in / 27.5 in x 2.1 in, wire bead

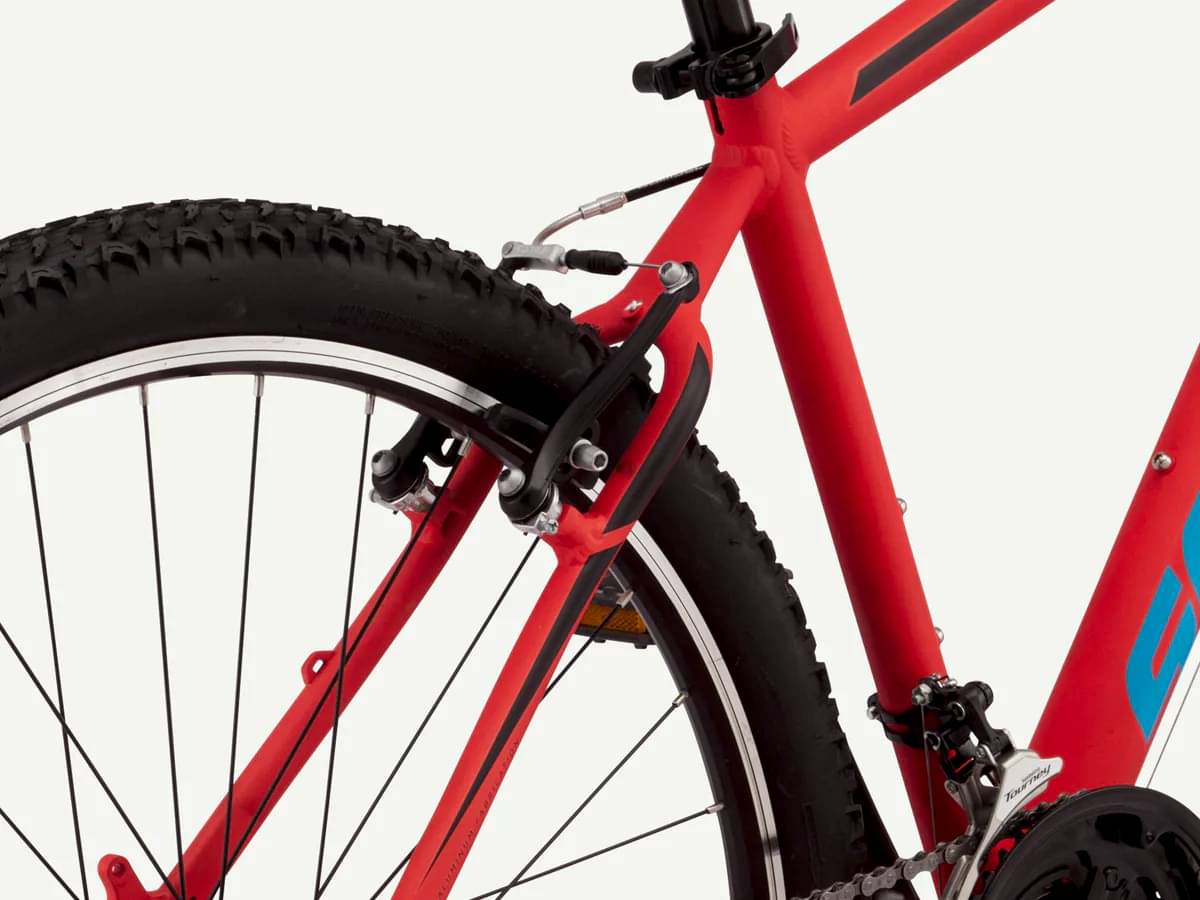

Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 20 mm rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.489 mm | 1.435 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm |
| Front Center | 632 mm | 657 mm | 683 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 599.5 mm | 608.9 mm | 618.3 mm |
| Reach | 386.7 mm | 408.8 mm | 431 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1062 mm | 1087 mm | 1113 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm |
| Standover Height | 747 mm | 783 mm | 817 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
