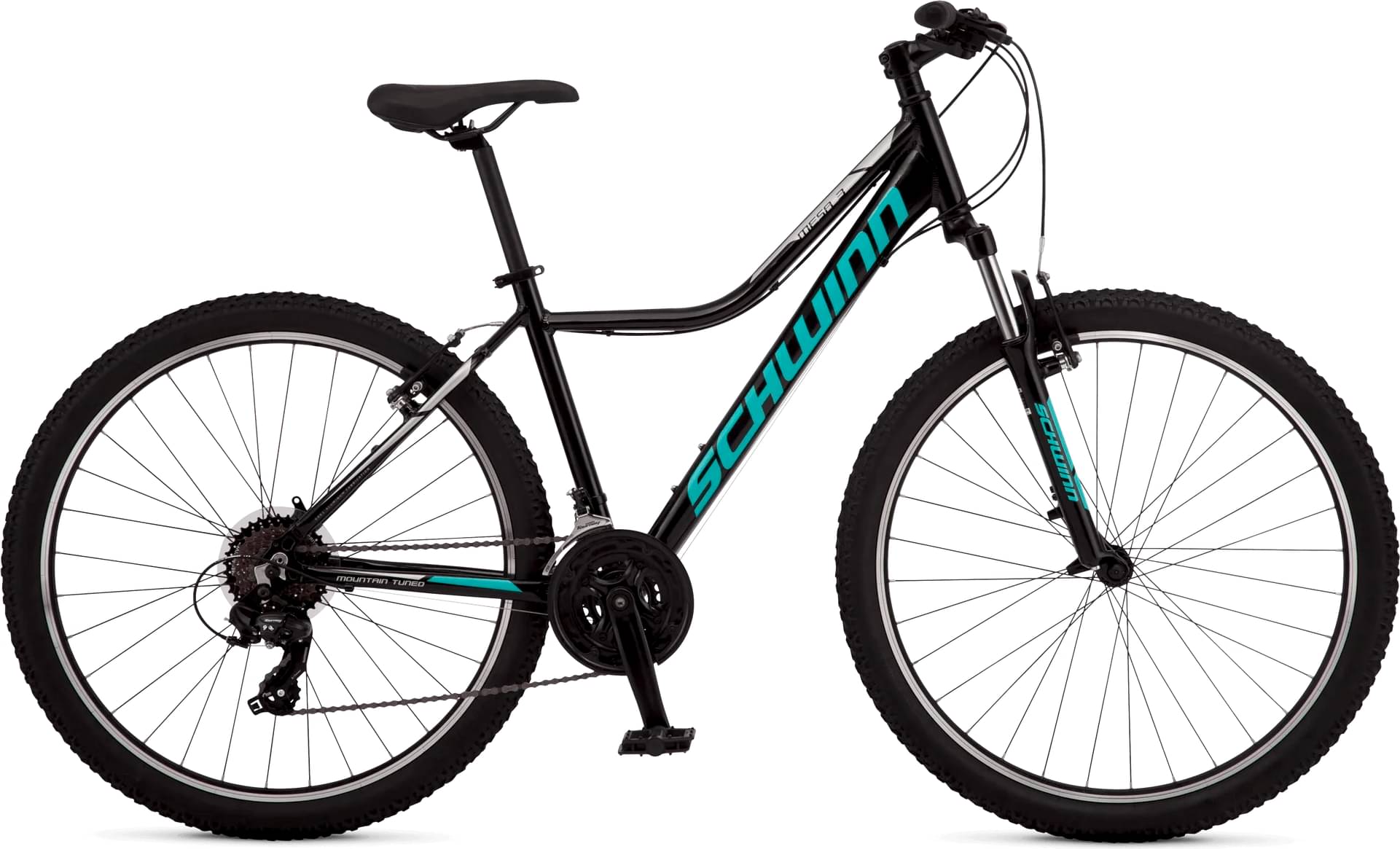

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Zoom HL565, 27.5", steel steerer, 9mm x 100mm QR, 80mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano Tourney, 31.8 mm clamp
Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 20 mm rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.669 mm | 1.657 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 609 mm | 609 mm |
| Rake | 40 mm | 40 mm |
| Trail | 87 mm | 107 mm |
| Stack | 601.9 mm | 620.7 mm |
| Reach | 360.7 mm | 374.7 mm |
| Top Tube Length | 545 mm | 565 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 431 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1040 mm | 1041 mm |
| Bottom Bracket Drop | 41 mm | 41 mm |
| Standover Height | 660 mm | 673 mm |
| Wheels | 27" | 27" |
