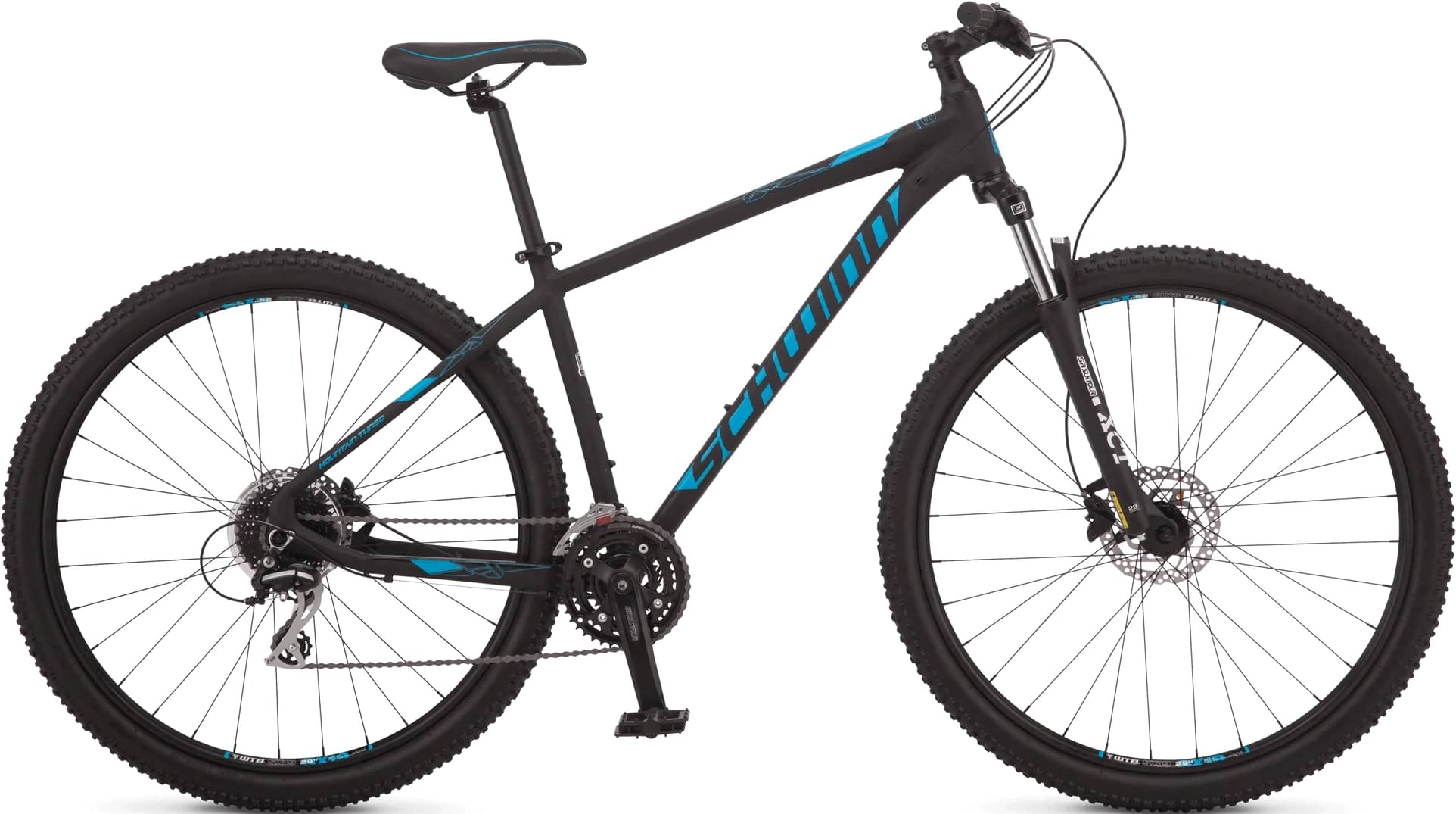

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
N LITENED 2 aluminum, 29" mountain tuned geometry, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour XCT30 DS, 29", steel steerer, 9 mm x 100 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Acera RD-M360
Front Derailleur
Shimano FD-TY700, 31.8 mm clamp

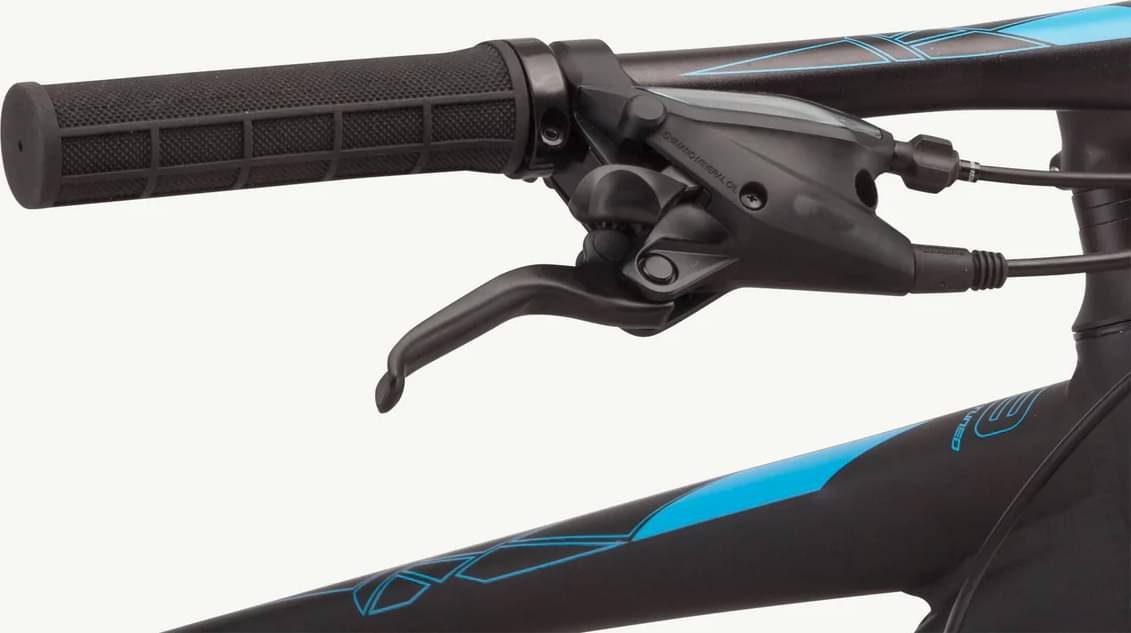

Shift Levers
Shimano EF500 EZ-FIRE, 24-speed
Crank
SR Suntour XCE, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z8.1
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain disc, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Rims
WTB SX19, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
WTB Transition sport, 27.5 in x 2.25 in / 29 in x 2.25 in, wire bead
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless, 7° rise, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 680 mm width, 25 mm rise, 31.8 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, ZS44, semi-cartridge bearings
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 350 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.52 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.4 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 297 mm | 297 mm | 297 mm | 297 mm |
| Front Center | 622 mm | 644 mm | 668 mm | 698 mm | 718 mm | 718 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 84 mm | 84 mm | 92 mm | 84 mm | 84 mm | 84 mm |
| Stack | 564.5 mm | 583.2 mm | 616.6 mm | 626 mm | 626 mm | 626 mm |
| Reach | 370 mm | 384.5 mm | 408.6 mm | 425.8 mm | 445.8 mm | 445.8 mm |
| Top Tube Length | 539 mm | 559 mm | 584 mm | 604 mm | 624 mm | 624 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 419 mm | 445 mm | 483 mm | 483 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1041 mm | 1063 mm | 1106 mm | 1135 mm | 1155 mm | 1155 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 685 mm | 716 mm | 756 mm | 775 mm | 799 mm | 799 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Moab 3 completes the Schwinn Moab model. 4 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 949$. Doing a quick comparison, we notice that Moab 3 price is 100.74% smaller than the average cost of a Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Moab 3 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.

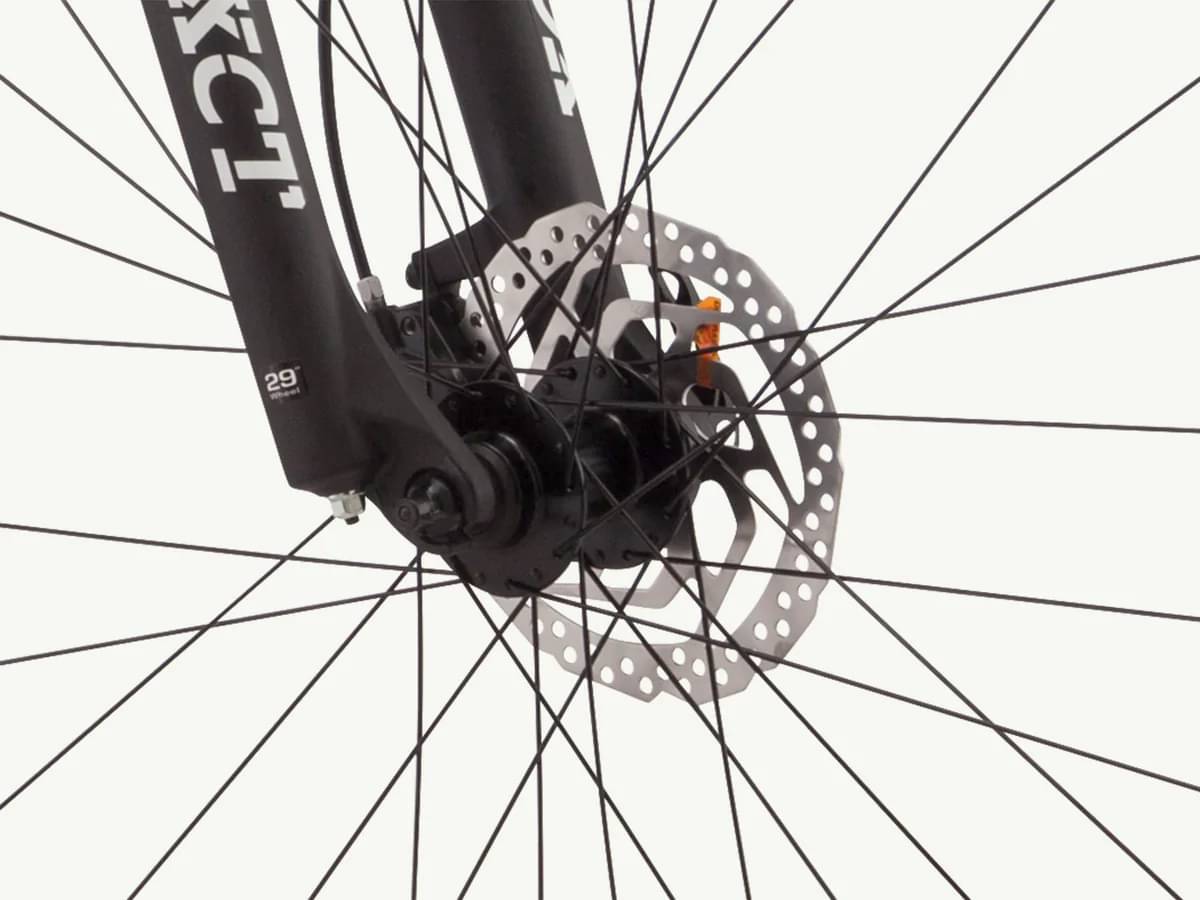

Brakes
For your safety, it is important to have quality breaks on your bike. Schwinn Moab 3 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
