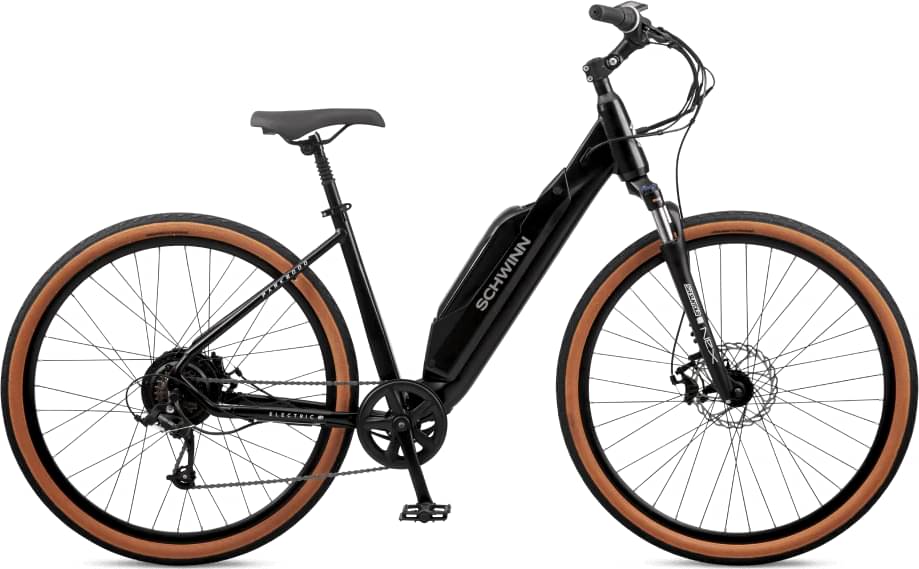

Schwinn Parkwood Electric Bike 2025
2025 E-bike
Estimate price |
1,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset microSHIFT -
Suspension Hardtail -
Motor hub-drive -
Battery 540 watt-hour internal downtube battery -
Drivetrain 1 × 7 -
Brakes JAK Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 18", rigid, comfort

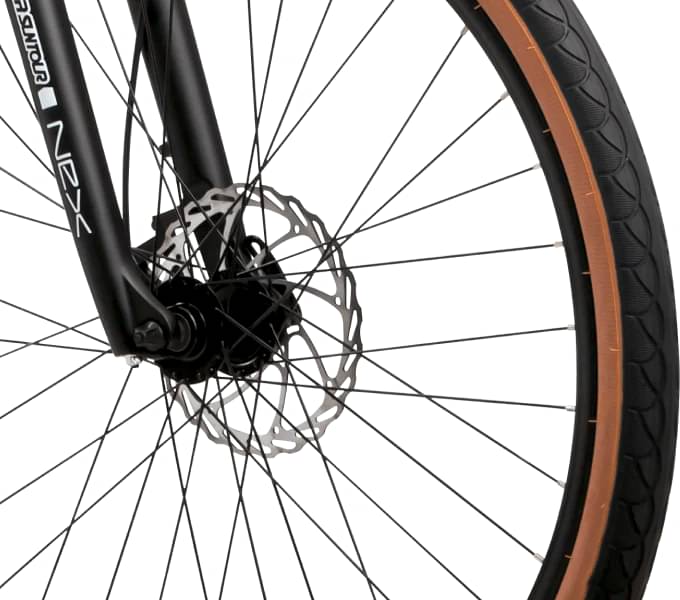

Suspension Fork
SR Suntour NEX, 700c, Hi-Ten steel, 100 mm QR, QR axle, 63 mm travel
Drivetrain

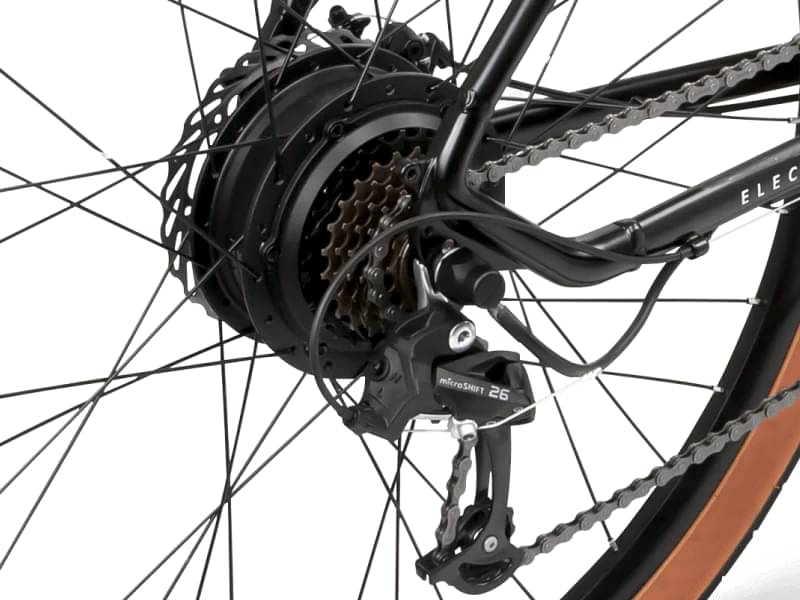

Rear Derailleur
Microshift
Shift Levers
Microshift, 7-speed
Crank
Prowheel, aluminum, 42T
Bottom Bracket
Cartridge, square taper
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Steel, 135 mm bolt-on, 36H, 160MM, 6-bolt
Rims
Aluminum, double wall, 19.4 mm, 36H, non tubeless
Spokes
14G/13G, stainless steel
Tires
700c x 45c, wire bead
Brakes
Brakes
JAK, cable actuated disc, aluminum, 180 mm front, 160 mm rear rotor

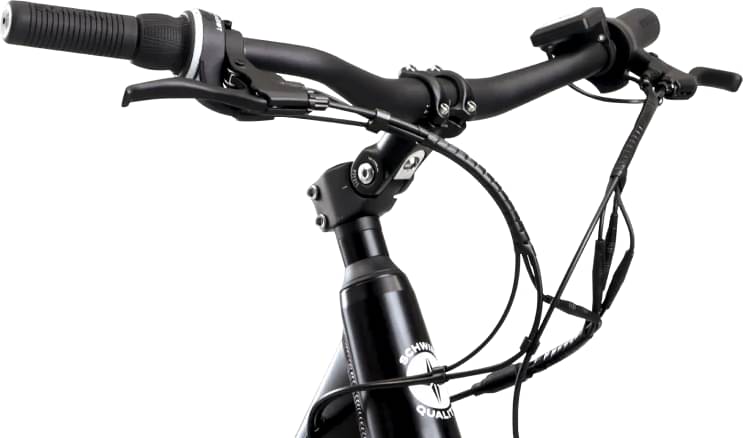

Cockpit
Stem
Aluminum, threadless, 100 mm, adjustable rise, 31.8 mm clamp, 31.8 mm clamp
Handlebar
Aluminum, 660 mm width, 30 mm rise, 31.8 mm clamp
Grips
Kraton
Headset
Threadless, 1-1/8 in, loose ball bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Motor & Battery
Motor
500-watt hub drive motor

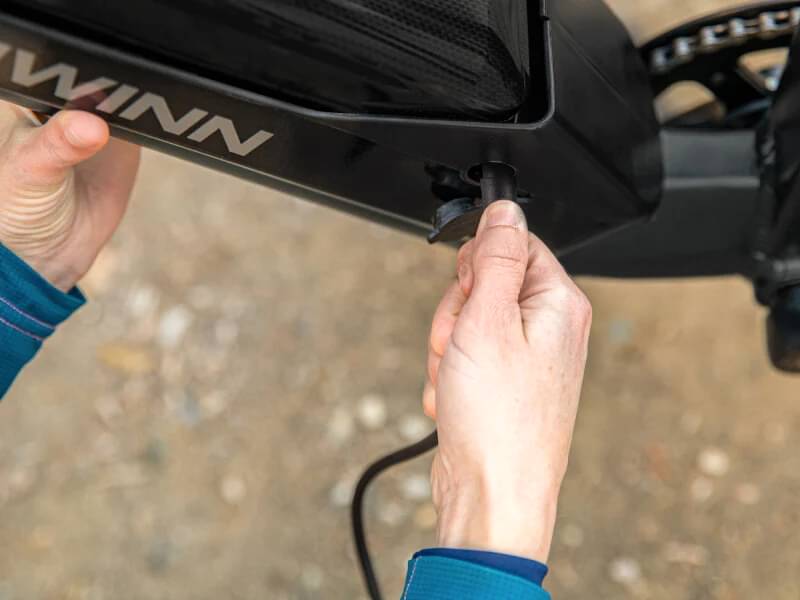

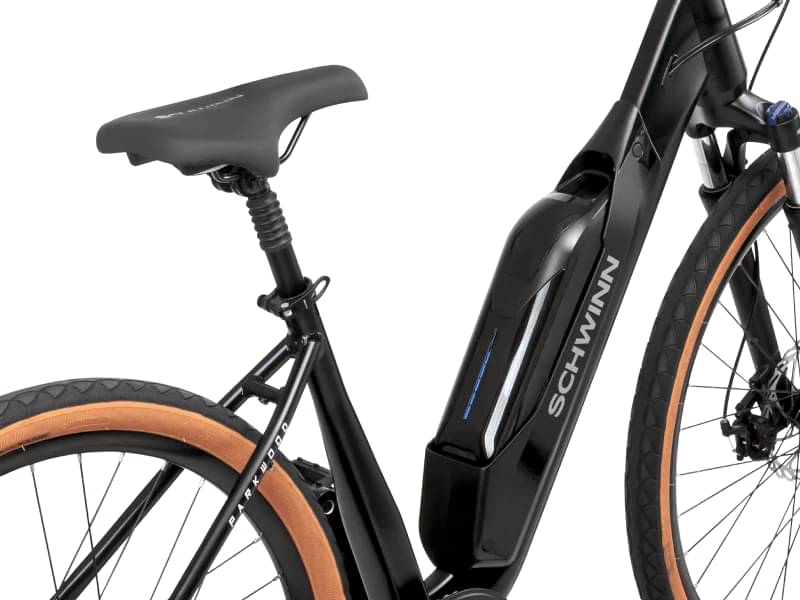

Battery
540 watt-hour internal downtube battery
Remote

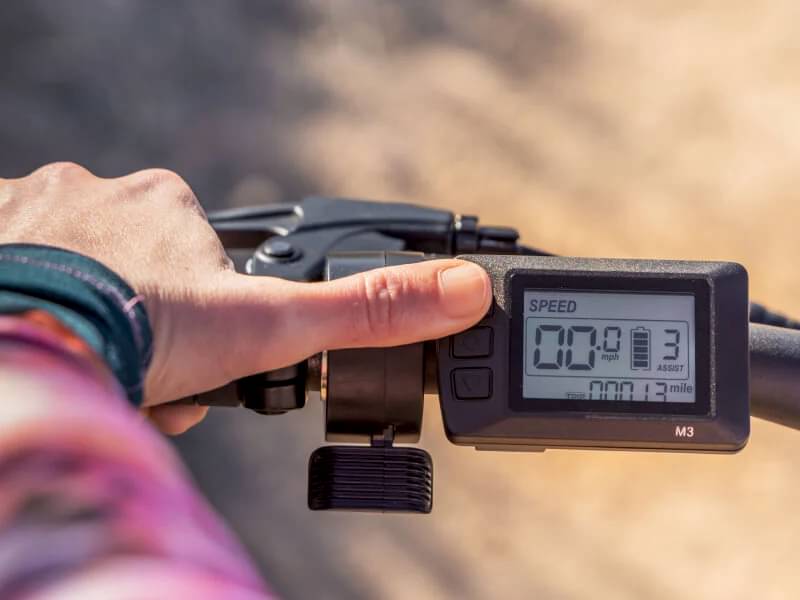

Multi-function LCD controller
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 27.5" wheel |
|---|---|
| Stack Reach Ratio | 1.553 mm |
| Bottom Bracket Height | 295 mm |
| Front Center | 671 mm |
| Rake | 40 mm |
| Trail | 83 mm |
| Stack | 648.1 mm |
| Reach | 417.3 mm |
| Top Tube Length | 615 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 455 mm |
| Head Tube Angle | 70.5 ° |
| Head Tube Length | 160 mm |
| Chainstay Length | 460 mm |
| Wheelbase | 1124 mm |
| Bottom Bracket Drop | 60 mm |
| Standover Height | 544 mm |
| Wheels | 27" |
