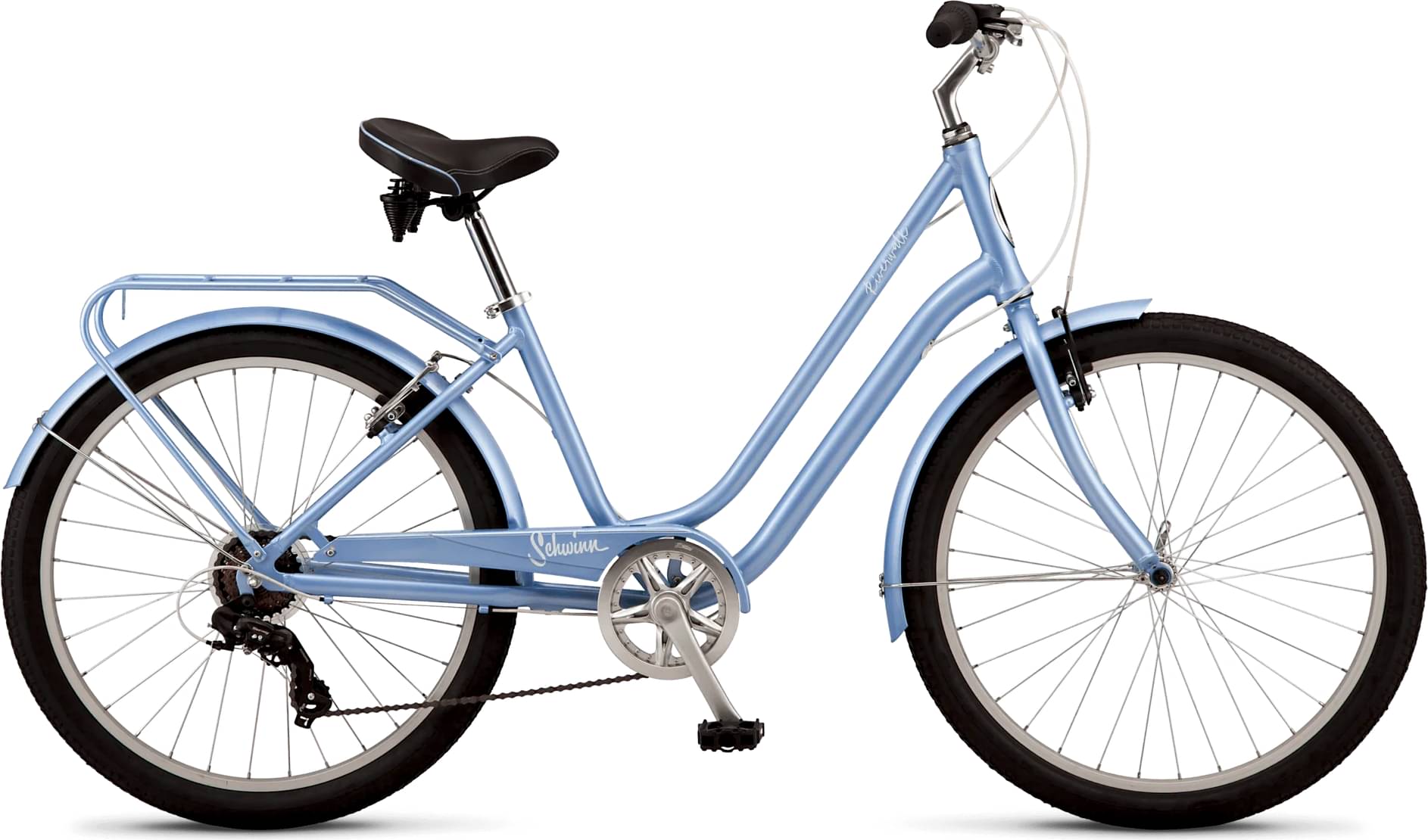

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

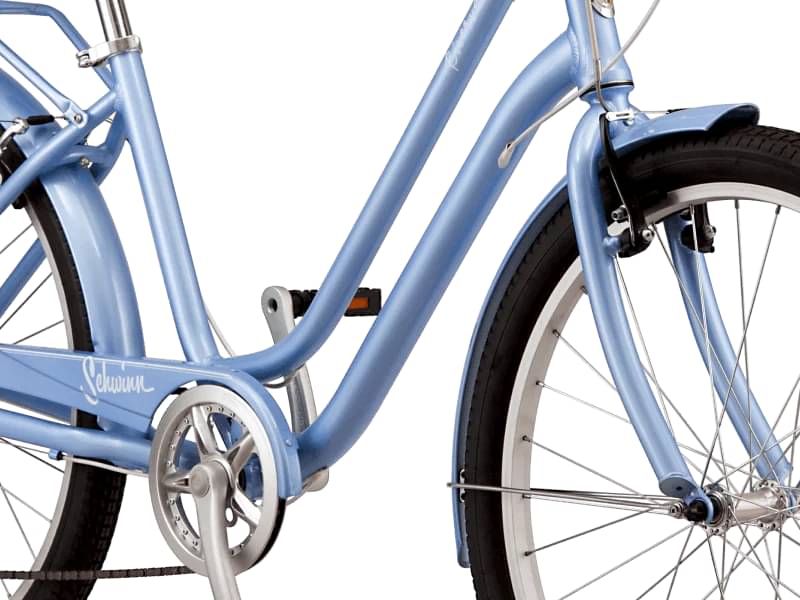

Frame
Frame
Aluminum, 17.5", rigid, step-through comfort
Suspension Fork
Hi-Ten steel, 26", steel steerer, 9 mm x 100 mm QR, QR
Drivetrain
Rear Derailleur
Shimano RD-TY500

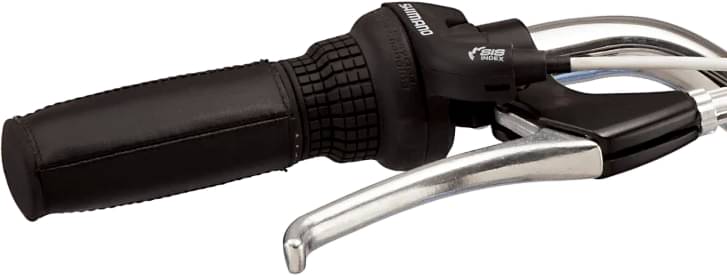

Shift Levers
Shimano REVOSHIFT twist

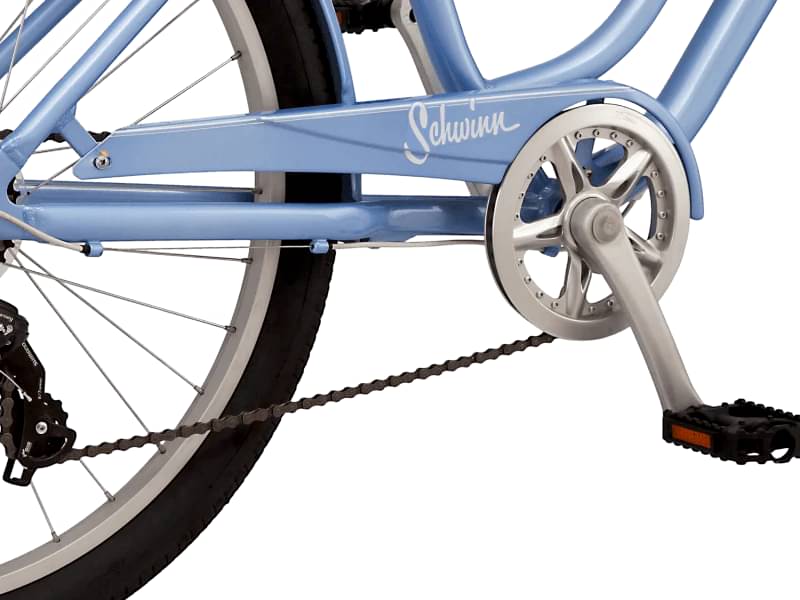

Crank
Prowheel, aluminum, 40T
Bottom Bracket
Semi-cartridge, square taper, 68 mm
Chain
KMC
Pedals
Schwinn comfort, aluminum / nylon, reflector
Wheels
Rear Hub
Schwinn, aluminum, ball bearing, 135 mm bolt-on, 32H
Rims
Alex, aluminum, aluminum single wall, 32H
Spokes
14G, steel
Tires
26 in x 2.125 in, wire bead

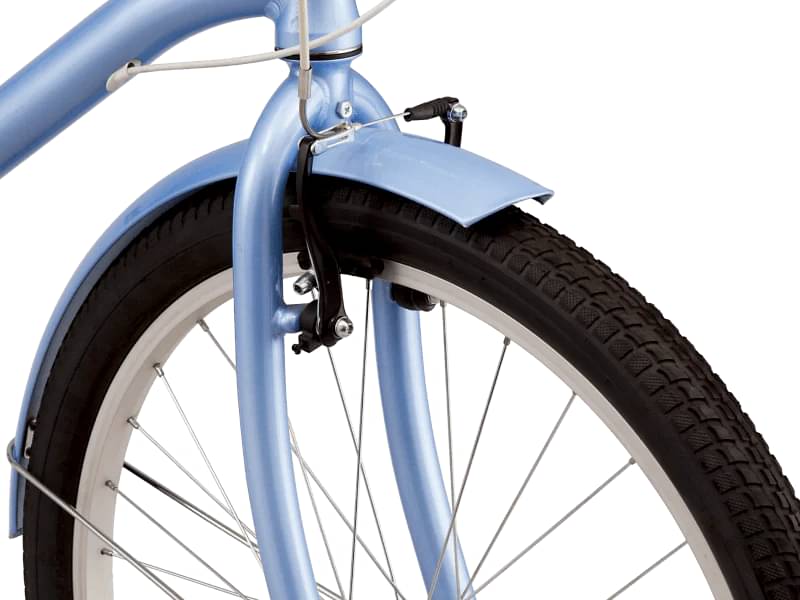

Brakes
Brakes
V-brake, aluminum
Cockpit
Stem
Schwinn, aluminum, quill, 30? rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 60 mm rise, 25.4 mm clamp
Grips
Schwinn Comfort semi-ergonomic stitched, single density
Headset
Threaded, ZS44, ball bearing

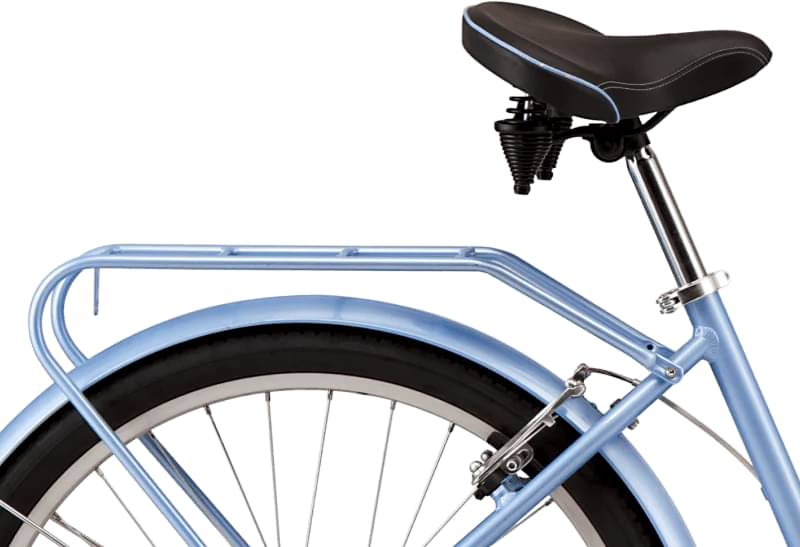

Seat

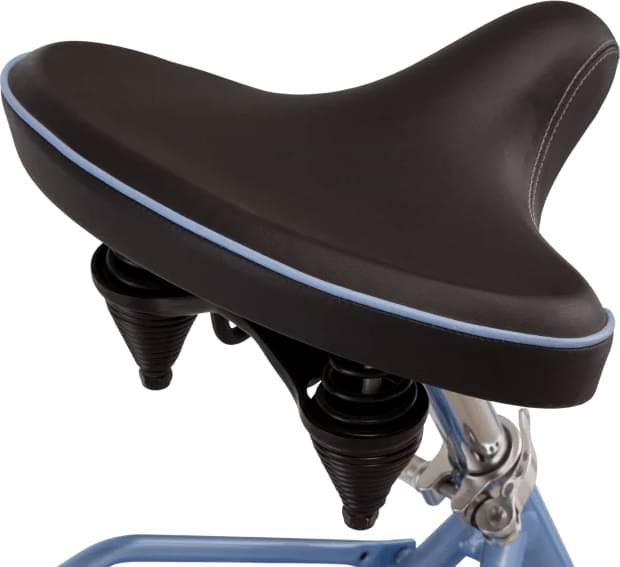

Saddle
Selle Royal Comfort, steel rails
Seatpost
Steel, 350 mm, 27.2 mm
