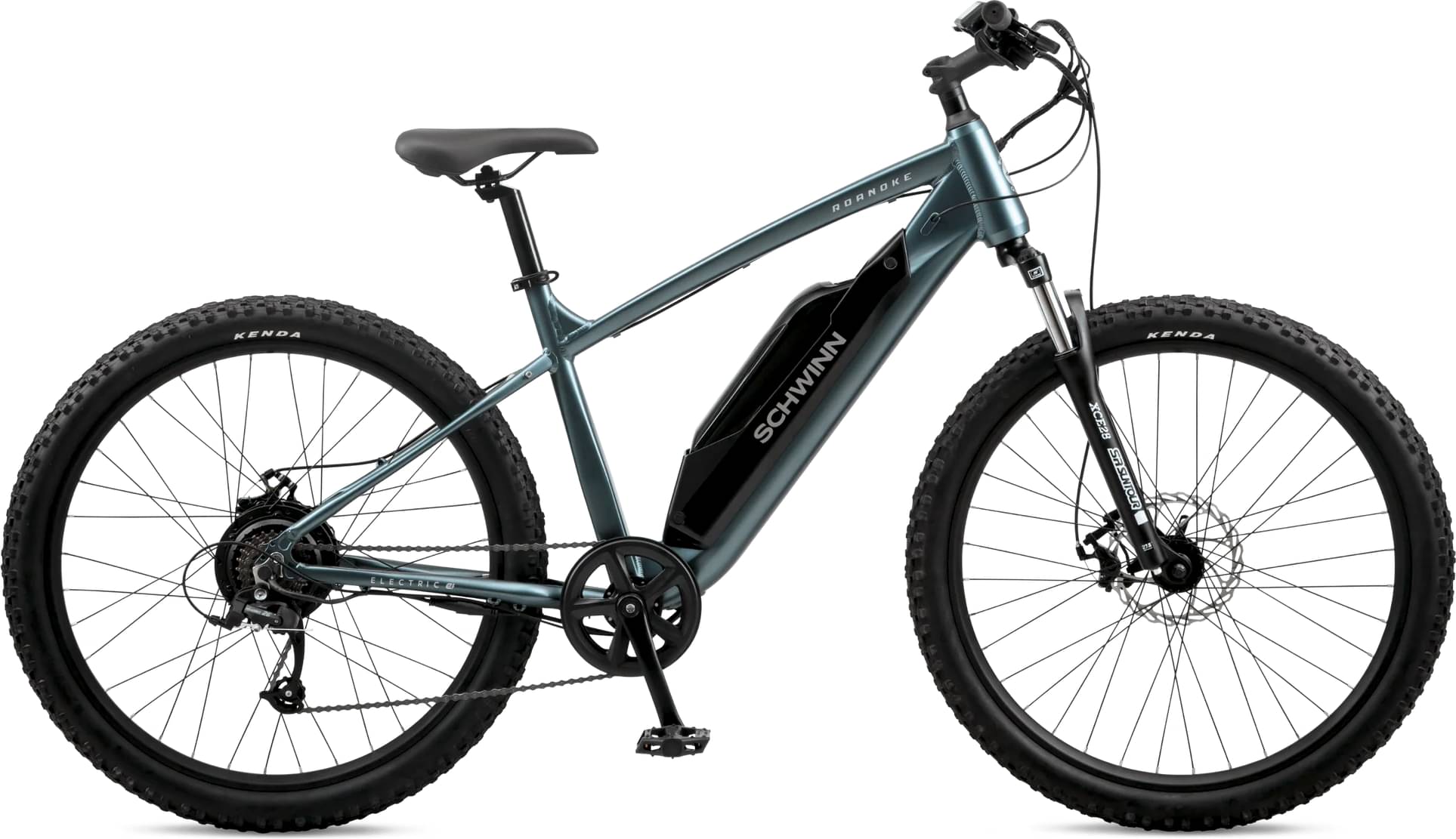

Schwinn Roanoke 27.5in Electric Bike 2024
2024 E-bike
Estimate price |
999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour
-
Groupset microSHIFT -
Suspension Hardtail -
Motor hub-drive -
Battery 540 watt-hour internal downtube battery -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 17.5", rigid, mountain
Suspension Fork
SR Suntour, 27.5", Hi-Ten steel, 100 mm bolt-on, QR, 80 mm travel

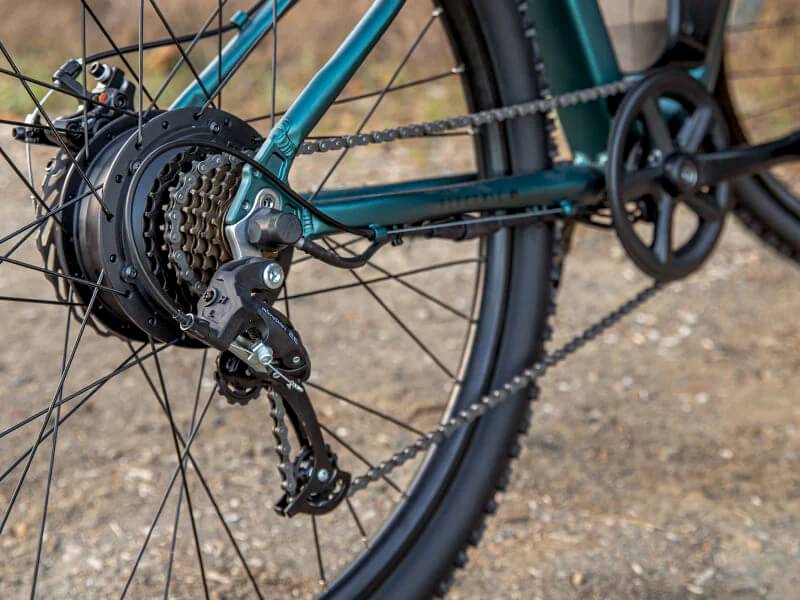

Drivetrain
Rear Derailleur
Microshift
Shift Levers
Microshift, 7-speed
Crank
Prowheel, aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Steel, 36H, 6-bolt
Rims
Aluminum, double wall, 36H, non tubeless
Spokes
14G/13G, stainless steel
Tires
27.5 in x 2.4 in, wire bead
Brakes
Brakes
JAK, cable actuated disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless, 80 mm, 7? 31.8 mm clamp
Handlebar
Aluminum, 700 mm width, 6? rise, 31.8 mm clamp
Grips
Kraton
Headset
Threadless, 1-1/8 in, ball bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Motor & Battery
Motor
500-watt hub drive motor

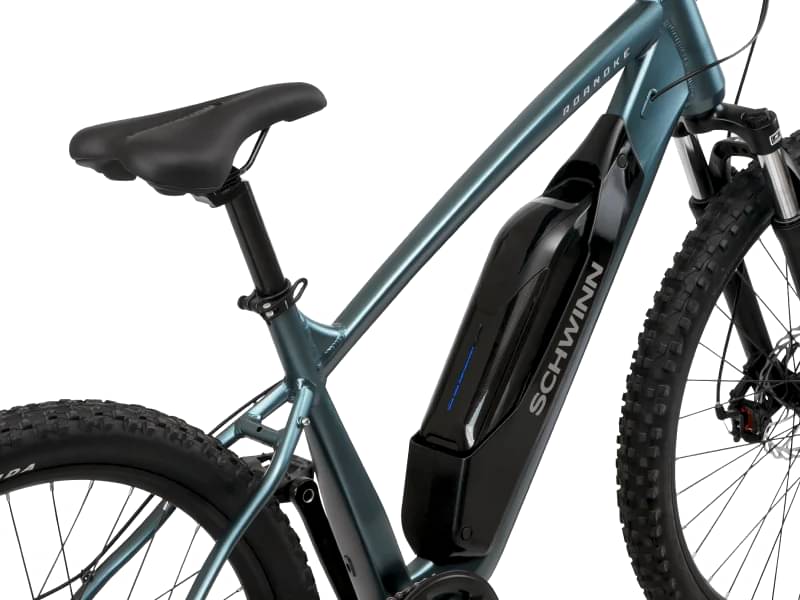

Battery
540 watt-hour internal downtube battery
Remote
Multi-function LCD controller
Fit data
Geometry
