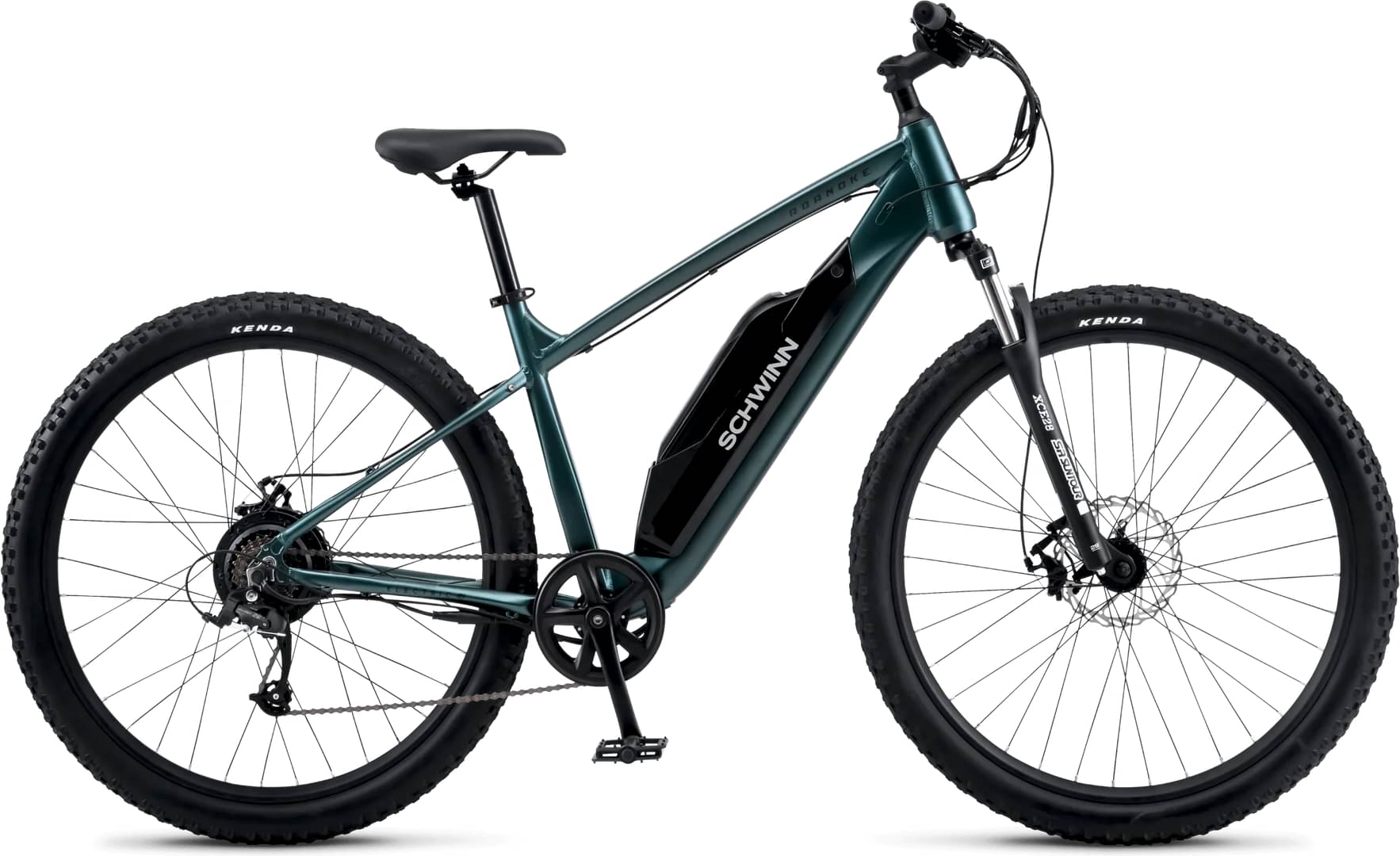

Schwinn Roanoke 29in Electric Bike 2023
2023 E-bike
Estimate price |
1,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour
-
Groupset microSHIFT M26 -
Suspension Hardtail -
Motor hub-drive -
Battery 540 watt-hour lithium ion battery -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 17.5", rigid, mountain
Suspension Fork
SR Suntour, 29", Hi-Ten steel, 100 mm, bolt-on, 80 mm travel
Drivetrain
Rear Derailleur
Microshift RD-M26
Shift Levers
Microshift, 7
Crank
Prowheel, aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Plastic
Wheels
Rear Hub
Steel, ball bearing, 36H, 6-bolt
Rims
Alloy double wall
Spokes
14G/13G, steel
Tires
Kenda Kadre, 29 in x 2.4 in, wire bead
Brakes
Brakes
JAK 7, cable actuated disc, aluminum, 180 mm front, 160 mm rear roto
Cockpit
Stem
Aluminum, threadless, 80 mm, 7°, 31.8 mm clamp
Handlebar
Aluminum, 700 mm width, 30 mm rise, 31.8 mm clamp
Grips
Kraton
Headset
Threadless, 1-1/8 in, cartridge bearing
Seat
Saddle
Vinyl
Seatpost
Aluminum, 400 mm, 20 mm offset, 27.2 mm
Motor & Battery
Motor
500-watt hub drive motor
Battery
540 watt-hour lithium ion battery
Remote
Multi-function LCD controller
Fit data
Geometry
