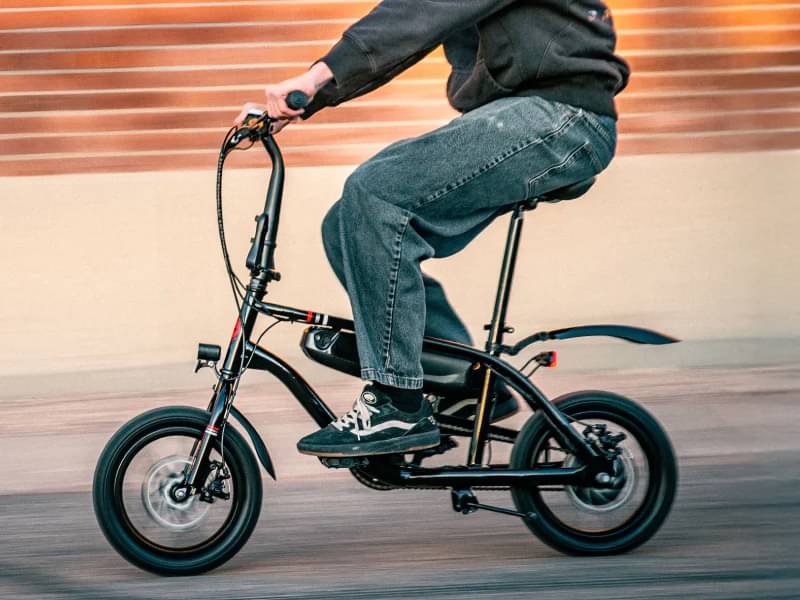

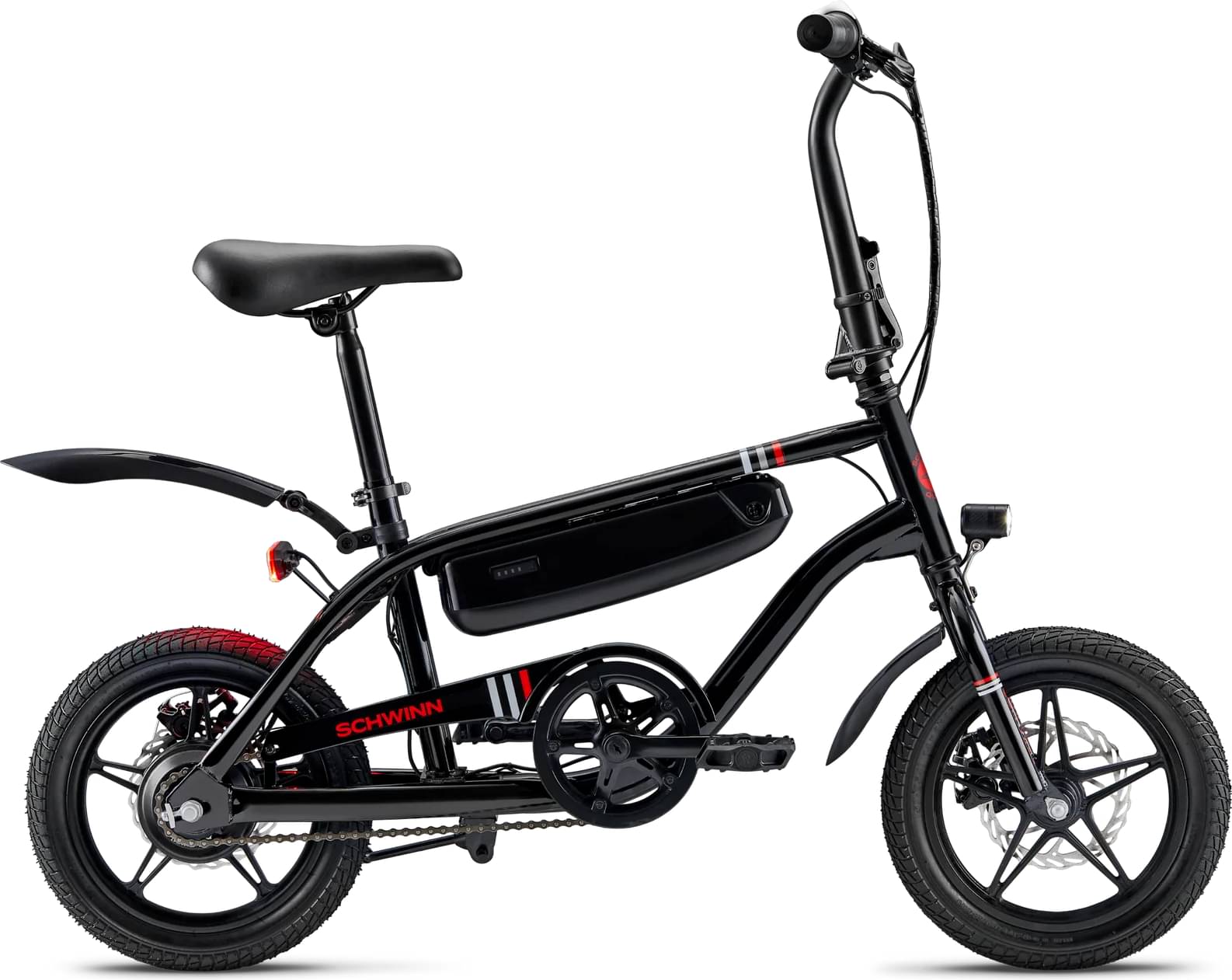

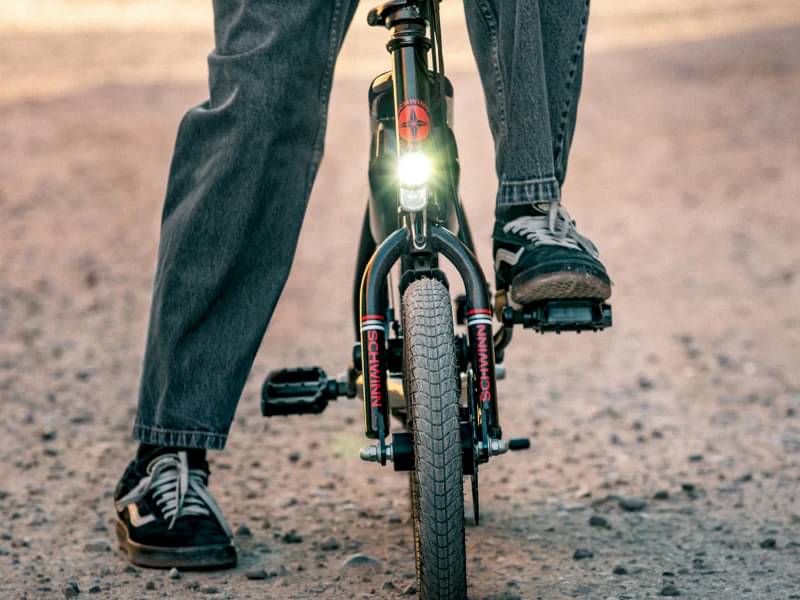

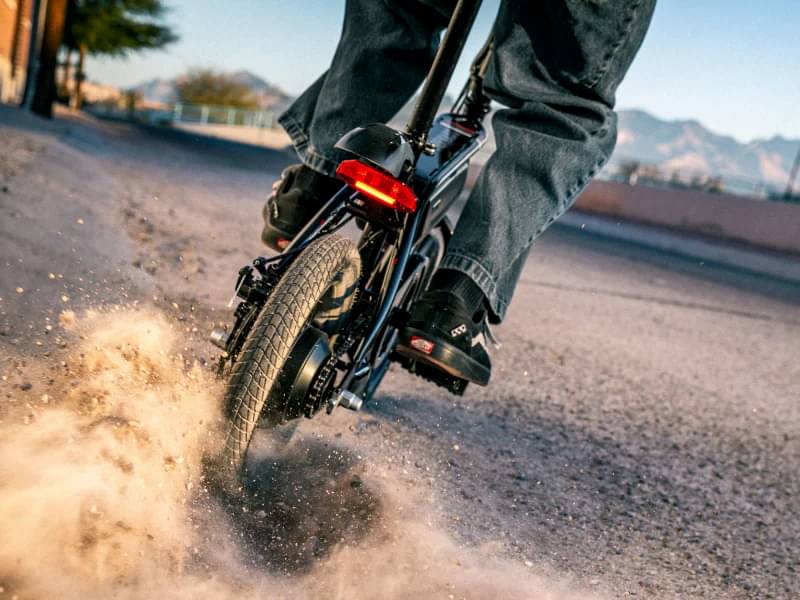

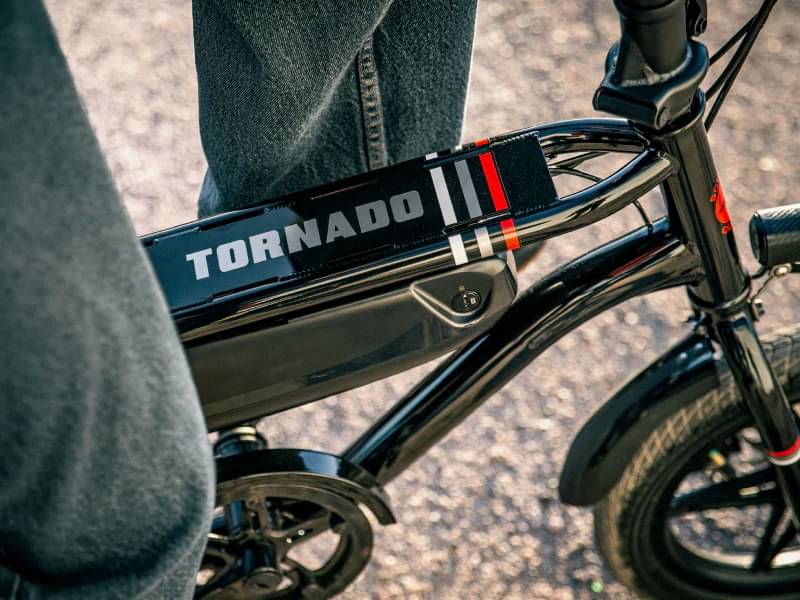

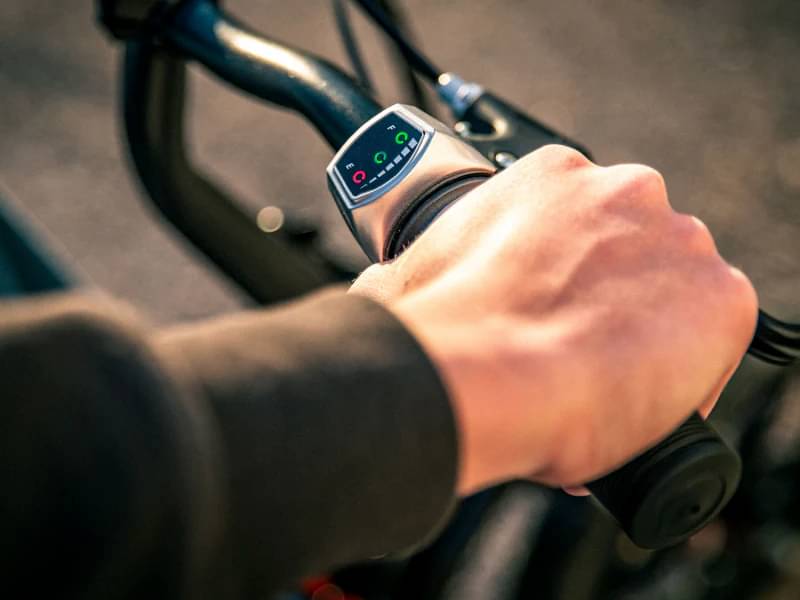

Schwinn Tornado Compact Electric Bike 2025
2025 E-bike
Estimate price |
599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Suspension Rigid -
Motor hub-drive -
Battery 36V 5.2Ah lithium-ion battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Durable steel
Suspension Fork
Steel, rigid
Wheels
Rims
Aluminum
Tires
14” x 1.95”
Brakes
Brakes
Aluminum 160 mm mechanical disc
Cockpit
Handlebar
Folding, Steel, 620 mm width, 25.4 mm clamp
Grips
Soft comfort, single density
Seat
Saddle
Foam padded, tool-free adjustable height
Motor & Battery
Motor
250-watt hub drive motor
Battery
36V 5.2Ah lithium-ion battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" |
|---|---|
| Stack Reach Ratio | 1.266 mm |
| Front Center | 464 mm |
| Rake | 30.7 mm |
| Stack | 343 mm |
| Reach | 271 mm |
| Top Tube Length | 520 mm |
| Seat Tube Angle | 68 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 170 mm |
| Chainstay Length | 432 mm |
| Wheelbase | 887 mm |
| Bottom Bracket Drop | 62 mm |
| Standover Height | 522 mm |
| Wheels | 14" |
| Rider Min Height | 120 cm |
