Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 15.5", rigid, comfort
Suspension Fork
Steel, suspension
Drivetrain
Shift Levers

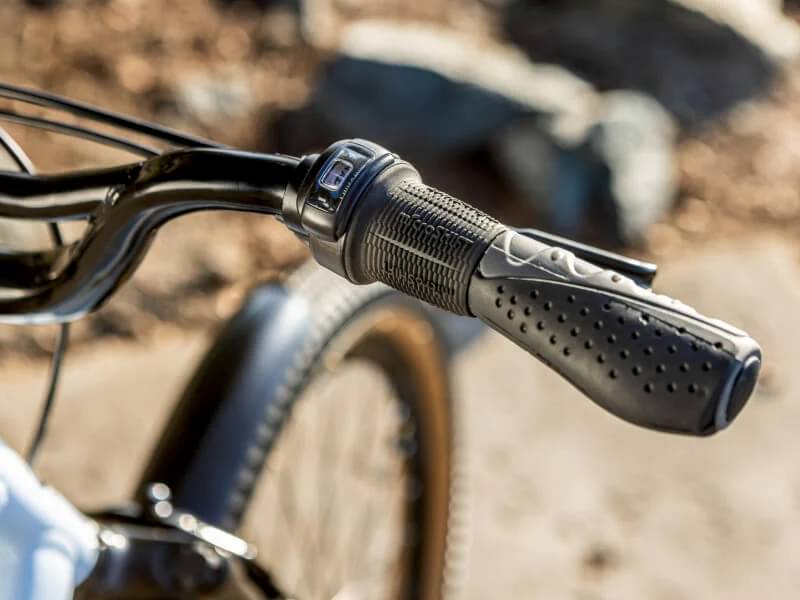

Twist shifter
Pedals
Resin platform w/ reflector platform w/ reflector
Wheels
Rims
Alloy high profile double wall, aluminum
Brakes
Brakes
Rim
Cockpit
Stem
Threadless, aluminum
Headset
Steel, threadless
Seat
Saddle
Vinyl, comfort
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Front Center | 608 mm | 626 mm |
| Rake | 46 mm | 46 mm |
| Trail | 92 mm | 92 mm |
| Stack | 680 mm | 680 mm |
| Reach | 325.8 mm | 343.8 mm |
| Top Tube Length | 601.7 mm | 619.7 mm |
| Seat Tube Angle | 67 ° | 67 ° |
| Seat Tube Length | 394 mm | 433 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1078 mm | 1096 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 712 mm | 697 mm |
| Wheels | 650 | 650 |
