Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 700c comfort tuned geometry, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube

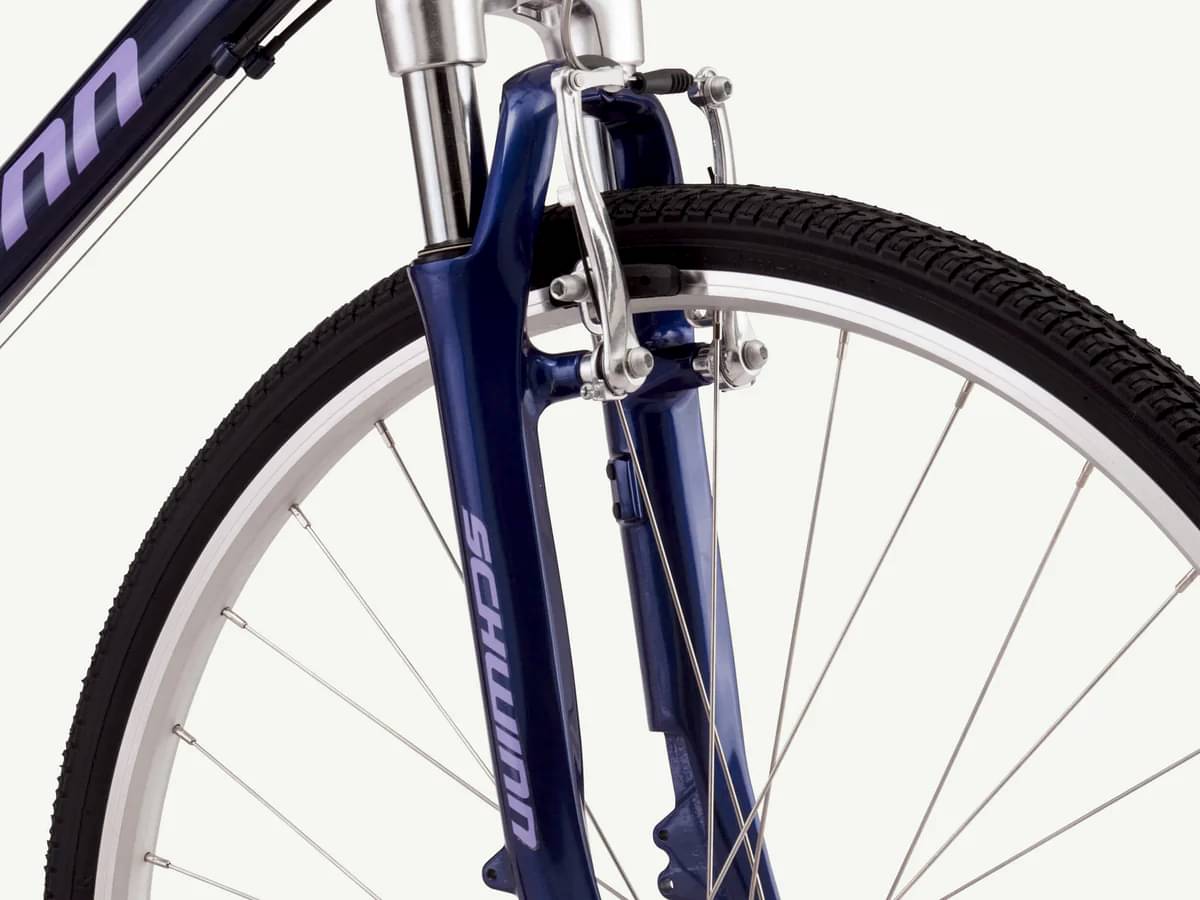

Suspension Fork
Zoom 730 AMS, 700c, steel steerer, 9 mm x 100 mm QR, 50 mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano FD-TY500, 31.8 mm clamp

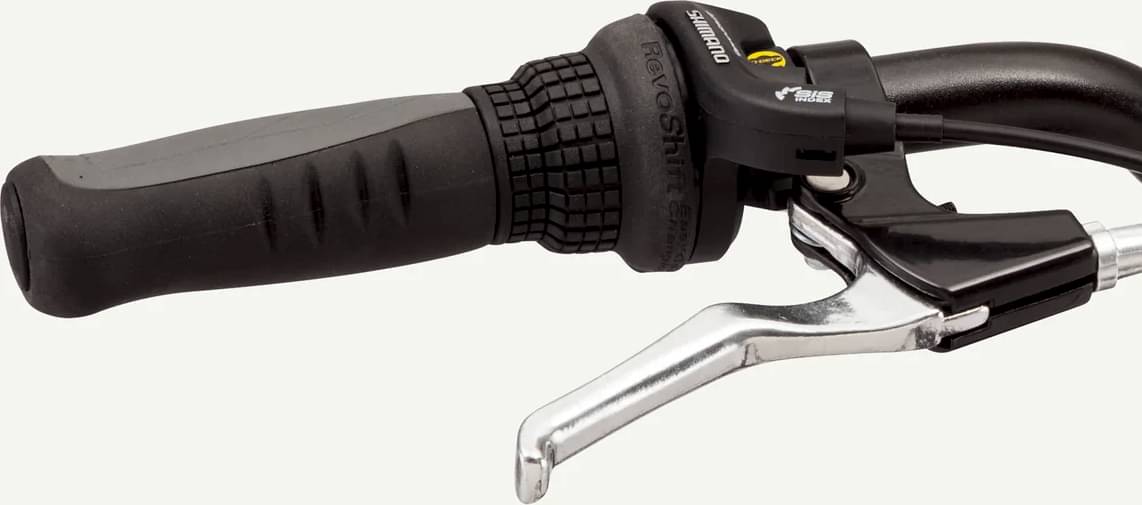

Shift Levers
Shimano REVOSHIFT twist, 21-speed
Crank
SR Suntour XCC, 48/38/28T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn comfort, nylon / Kraton
Wheels
Rear Hub
Schwinn sport, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
Stainless steel
Tires
Kenda Kourier, 700c x 38c, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, adjustable rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 50 mm rise, 25.4 mm clamp
Grips
Schwinn ergo, dual density
Headset
Threadless, ZS44, semi-cartridge bearings
Seat
Saddle
Schwinn Comfort sport, steel rails
Seatpost
Aluminum, 300 mm, 18 mm offset, suspension, 27.2 mm
