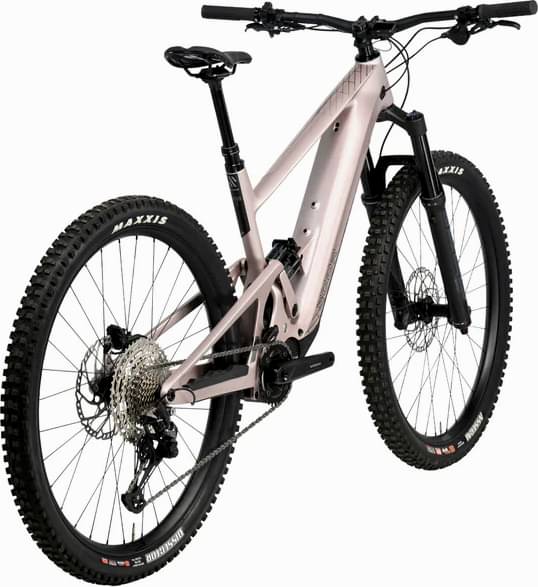

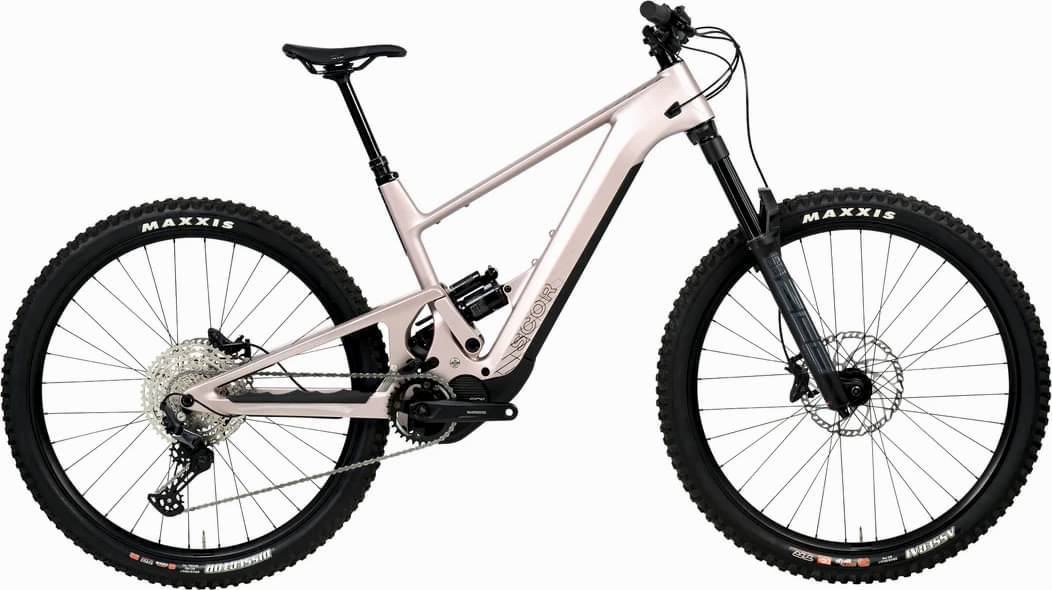

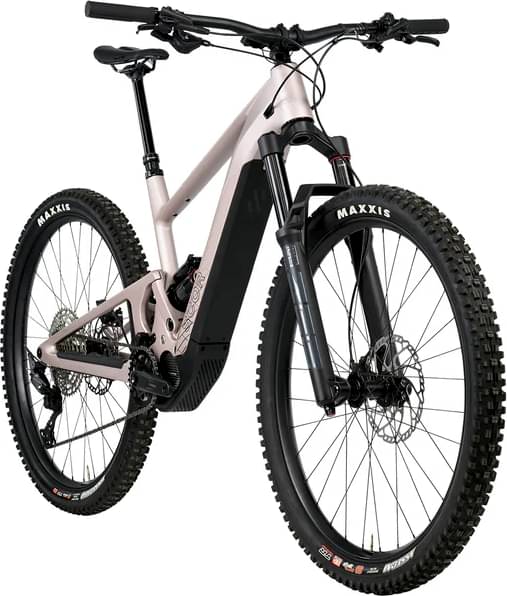

SCOR 4060 Z ST Deore 2024
2024 E-bike
Estimate price |
8,142$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 160mm -
Fork RockShox ZEB Select
-
Groupset Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Darfon 36V | SHIMANO Steps service included | 720 Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Boost 148 | SRAM UDH
Suspension Fork
RockShox ZEB Select RC | 150mm Travel | 44mm Rake
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SHIMANO Deore (RD-M6100)
Shift Levers
SHIMANO Deore (SL-M6100)
Cassette
SHIMANO Deore (CS-M6100-12)
Crank
SHIMANO (FC-EM600) | 165mm Length
Chain
SHIMANO Deore CN-M6100
Wheels
Rims
XDH-130 | 32 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Brakes
Brakes
SHIMANO Deore | BL-M6100 Levers | BR-M6120 Calipers
Cockpit
Stem
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle
Handlebar
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep
Grips
VP VPG-125A | External diam. 30mm | Length 137mm
Seat
Saddle
WTB Solano | DNAx padding | Steel Rail | 142mm
Seatpost
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel
Motor & Battery
Motor
SHIMANO Steps EP8 DU-EP801
Battery
Darfon 36V | SHIMANO Steps service included | 720 Wh
Charger
Darfon Smart Plus 100-240V | 4A | EU
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.333 mm | 1.291 mm | 1.237 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 773 mm | 798 mm | 823 mm | 853 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 140 mm | 147 mm | 153 mm |
| Stack | 601 mm | 612 mm | 626 mm | 637 mm |
| Reach | 435 mm | 459 mm | 485 mm | 515 mm |
| Top Tube Length | 562 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 77.9 ° | 77.9 ° | 77.9 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1206 mm | 1230 mm | 1255 mm | 1285 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
