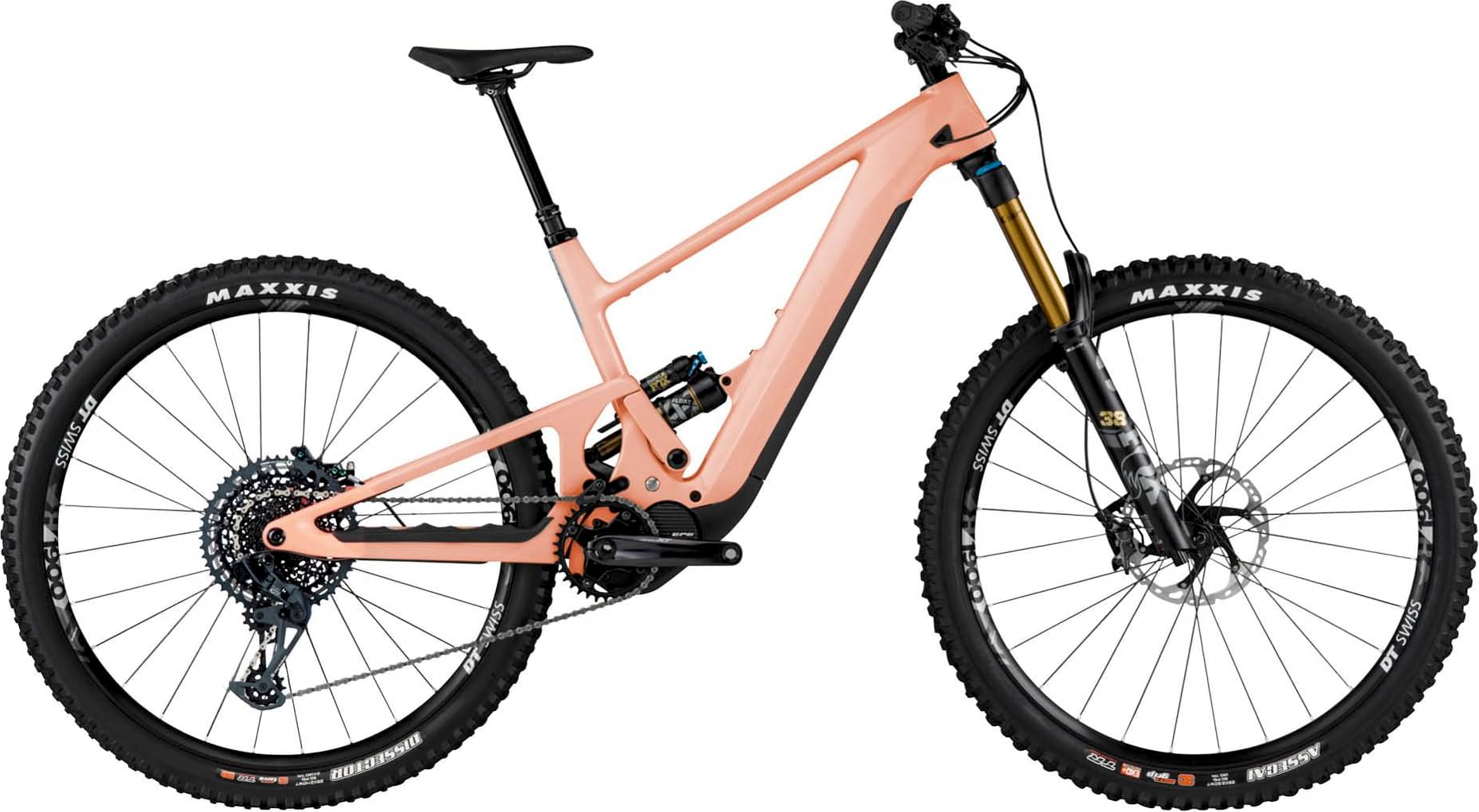

SCOR 4060 Z ST GX USA 2024
2024 E-bike
Estimate price |
8,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V | 720Wh | Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Boost 148 | SRAM UDH
Suspension Fork
Fox 38 Factory GRIP2 | 150mm travel | 44mm rake
Rear Shock
Float X Factory Suspension
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle Trigger
Cassette
SRAM GX Eagle (XG-1275) | 10-52T
Crank
Shimano FC-M8150 | 165mm length | 34T X-Sync Eagle chainring
Chain
SRAM GX Eagle
Wheels
Rims
DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Burgtec Enduro MK3 | 31.8mm bar bore | 35mm length | 0° angle
Handlebar
SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep
Grips
Burgtec Bartender Pro
Seat
Saddle
WTB Silverado Medium Cromoly SL
Seatpost
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm travel | Triggy Alpha lever
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP801)
Battery
Darfon 36V | 720Wh | Shimano Steps service included
Charger
Darfon Smart Plus 100-240V | 4A | US
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.357 mm | 1.308 mm | 1.269 mm | 1.217 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 765 mm | 790 mm | 815 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 127 mm | 132 mm | 139 mm | 144 mm |
| Stack | 597 mm | 608 mm | 622 mm | 633 mm |
| Reach | 440 mm | 465 mm | 490 mm | 520 mm |
| Top Tube Length | 560 mm | 589 mm | 620 mm | 654 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1198 mm | 1223 mm | 1248 mm | 1278 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
