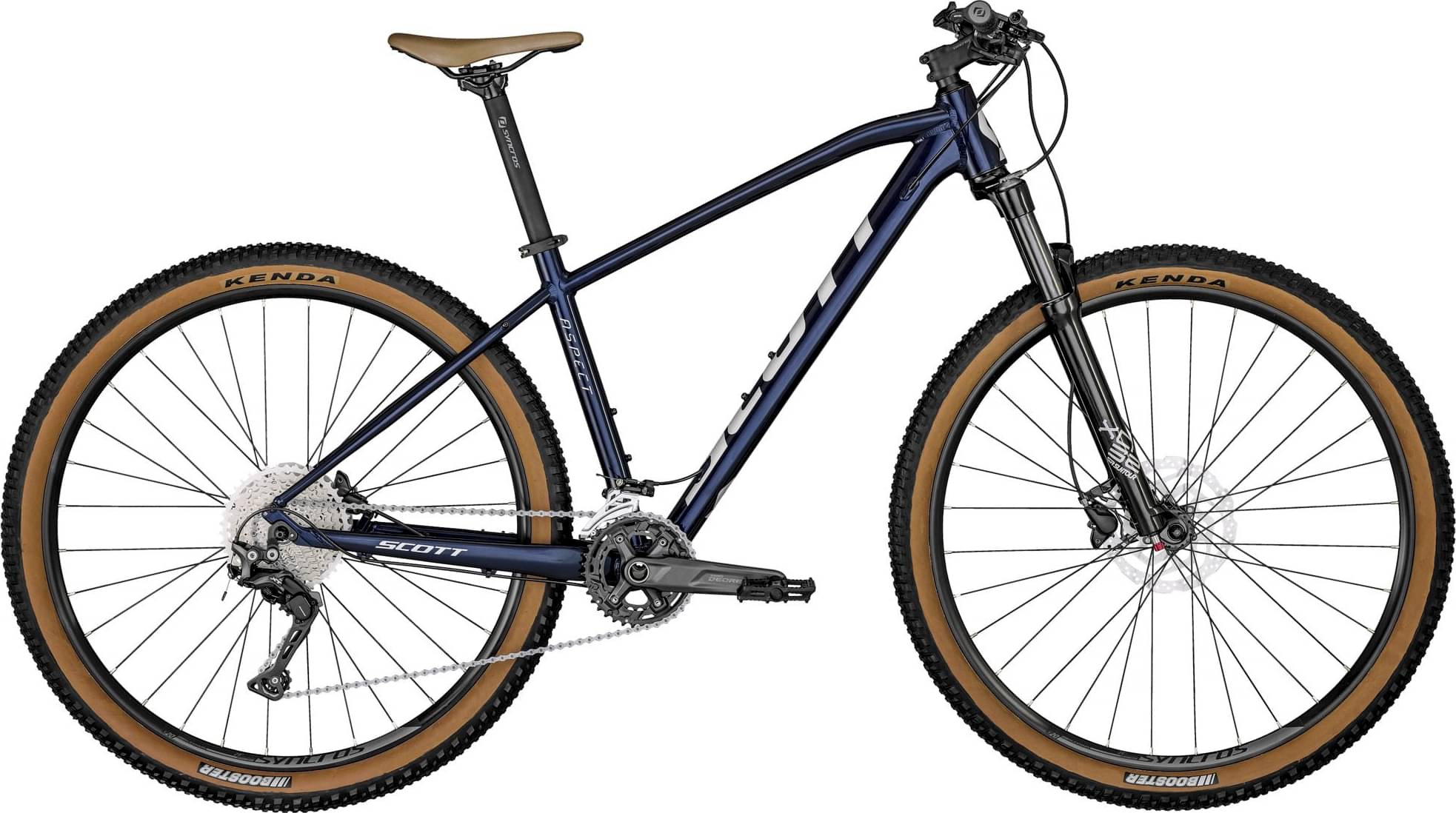

Scott Aspect 920 Cu (EU) 2024
2024 Mountain
Estimate price |
1,162$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 900 series / Alloy 6061 Custom Butted Tubing; Boost QR 5x141mm / Tapered Headtube / BB92; Internal Cable Routing / replaceable hanger
Suspension Fork
Suntour XCR32-RL-R; Air / Alloy Steerer; Remote Lockout / Reb. Adj.; 100mm travel
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-SGS; Shadow Type / 11 Speed
Shift Levers
Shimano CUES SL-U6000-11 / 2 way release
Cassette
Shimano CUES CS-LG400-11 / 11-50T
Crank
Shimano CUES FC-U6000-1; 32T
Bottom Bracket
Shimano BB-MT500-PA / shell 41x92mm
Chain
KMC X11
Pedals
VP VP-536
Wheels
Front Hub
Formula CL51
Rear Hub
Formula CL2241 / 141QR
Rims
Syncros X-20 Disc; 32H / black
Spokes
14 G / stainless / black
Tires
Front: Kenda Booster; 2.4" / 30TPI, Rear: Kenda Booster; 2.4" / 30TPI
Brakes
Brakes
Shimano MT200 / Hydr. Disc Brakes
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 / 720mm; black / 31.8mm / 12mm rise / 9° BS; Syncros Comfort Lock-on Grip
Headset
Syncros OE Press Fit / Reduce 1.5"-1 1/8"; OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros 3.0
Seatpost
Syncros 3.0; 31.6mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.485 mm | 1.461 mm | 1.443 mm | 1.423 mm | 1.402 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 659 mm | 647 mm | 659 mm | 680 mm | 701 mm | 721 mm |
| Rake | 59 mm | 22 mm | 18 mm | 23 mm | 22 mm | 21 mm |
| Trail | 84 mm | 124 mm | 128 mm | 123 mm | 124 mm | 125 mm |
| Stack | 580 mm | 603 mm | 612 mm | 622 mm | 636 mm | 649 mm |
| Reach | 388 mm | 406 mm | 419 mm | 431 mm | 447 mm | 463 mm |
| Top Tube Length | 560 mm | 585 mm | 600 mm | 615 mm | 635 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 395 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1102 mm | 1090 mm | 1102 mm | 1123 mm | 1144 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 743 mm | 771 mm | 783 mm | 821 mm | 857 mm | 891 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
