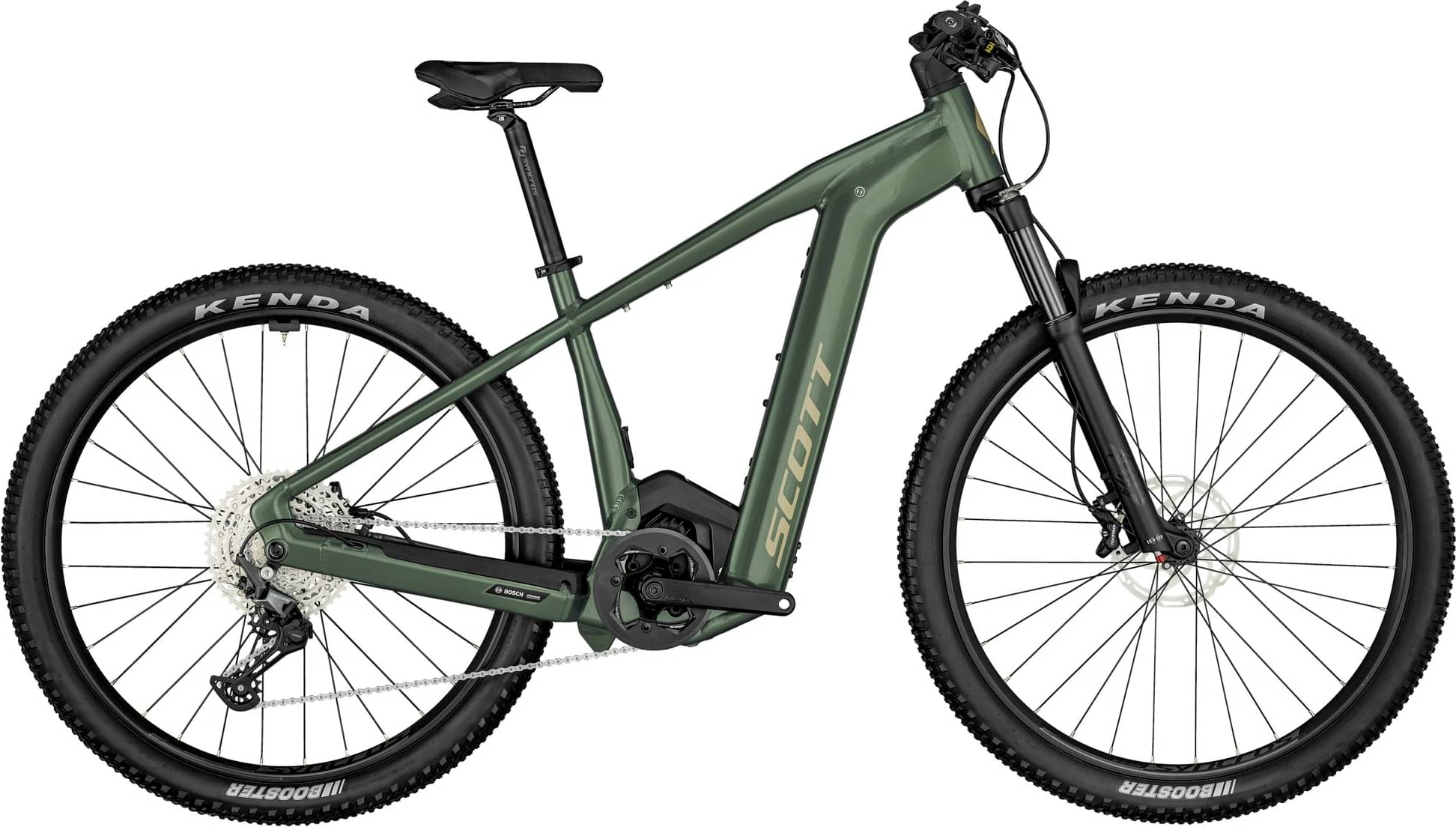

Scott Aspect eRIDE 900 2024
2024 E-bike
Estimate price |
5,352$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy custom butted tubing; Bosch Integr. removable Battery; internal cable routing
Suspension Fork
SR Suntour XCR34 Air / Tapered / S-XL 29"/ 120mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano Deore / 12 Speed
Shift Levers
Shimano Deore Trigger SL-M6100RC
Cassette
Shimano CS-M6100-12 10-51T 12S
Crank
Miranda 172,5MM
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula CL-148S / Boost 148x12mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Black Spokes
Tires
Front: Kenda Booster 29x2.6" / 30TPI, Rear: Kenda Booster 29x2.6" / 30TPI
Brakes
Brakes
Tektro HD-M745 4 Piston
Cockpit
Stem
Syncros AM2.0 / 6061 Alloy; 31.8mm / 4° / 1 1/8"
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B.; 12mm rise / 9° / 740mm; Syncros Comfort lock-on grips
Headset
Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Remote
SR Suntour Remote
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.621 mm | 1.614 mm | 1.641 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 643.6 mm | 652.8 mm | 662.1 mm | 680.7 mm |
| Reach | 395.5 mm | 402.8 mm | 410.1 mm | 414.8 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1175 mm | 1186 mm | 1197 mm | 1210 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 780 mm | 798 mm | 819 mm | 850 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
