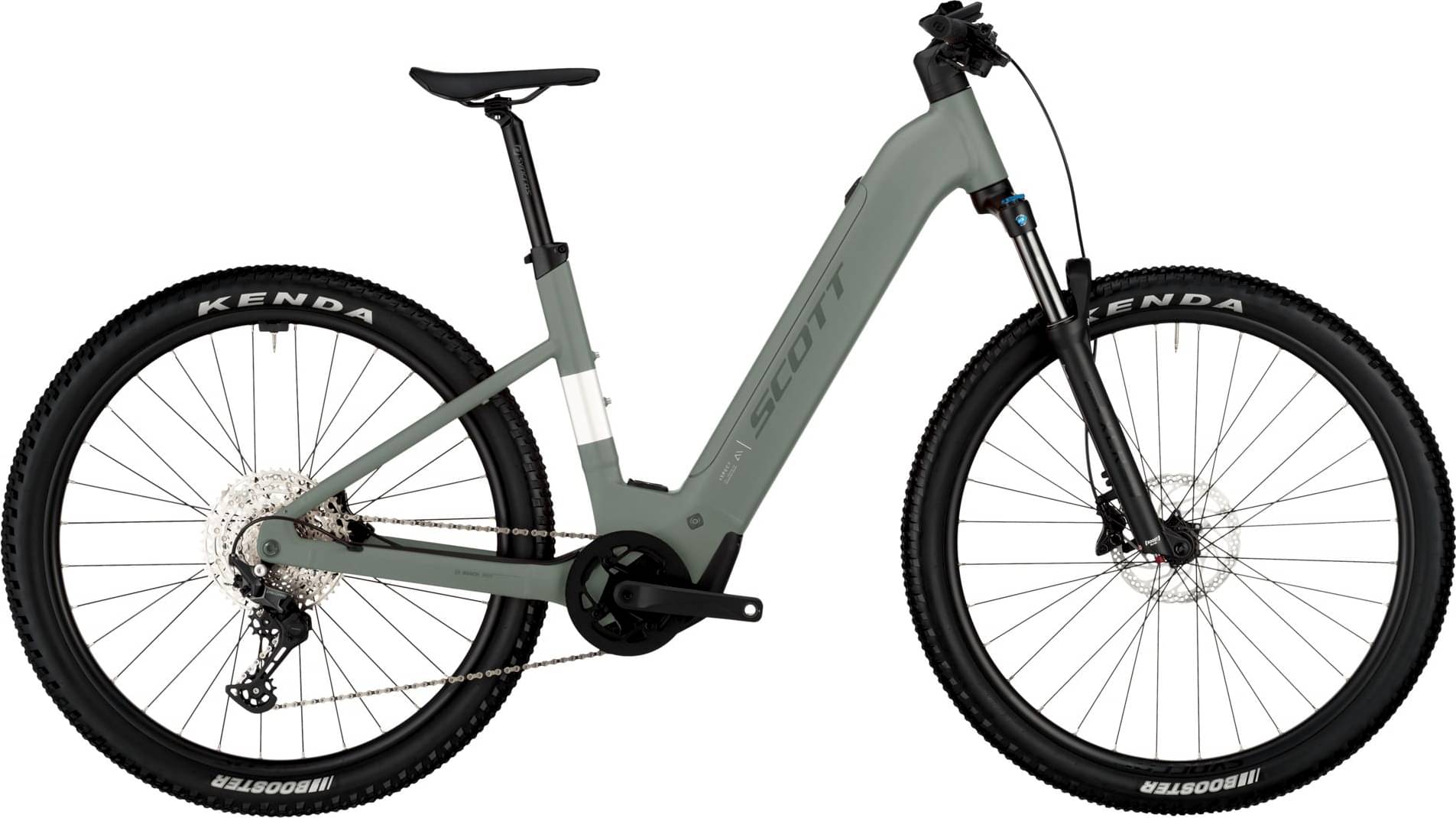

Scott Aspect eRIDE 900 Wave 2025
2025 E-bike
Estimate price |
5,045$
Weight | 28.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 800Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29", 6061 Alloy custom butted tubing; Top extraction battery; UDH Interface, 12x148mm with 52mm Chainline
Suspension Fork
SR Suntour XCR34X LOR Air, Tapered 120mm Travel, 15x110 bolt Axle, Remote Lock Out
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 SGS; Shadow Plus, 12 Speed
Shift Levers
Shimano Deore Trigger SL-M6100RC
Cassette
Shimano CS-M6100, 10-51
Crank
FSA CK-220; 165mm
Chain
KMC e12S
Wheels
Front Hub
Formula CL-811, 15x110mm
Rear Hub
Formula MSC-148S, 148x12mm
Rims
Cross X19, 32H, 30mm, Pin Joint
Spokes
Black Spokes
Tires
Front: Kenda Booster 29x2.6", 30TPI, Rear: Kenda Booster 29x2.6", 30TPI
Brakes
Brakes
Shimano BR-MT420 Disc Brakes
Cockpit
Stem
Syncros AM2.0, 6061 Alloy; 31.8mm, 0°
Handlebar
Syncros 3.0 720mm, 31.8mm, 9°, 12mm rise; Syncros Comfort lock-on grips
Headset
Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm
Seat
Saddle
Syncros Tofino E 2.0
Seatpost
Syncros M3.0, 31.6mm; 350mm
Motor & Battery
Motor
Bosch Performance Line CX (BDU384Y); EU: 25kmh
Battery
PowerTube 800Wh
Remote
SR Suntour Remote
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.744 mm | 1.661 mm | 1.613 mm | 1.613 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 730 mm | 750 mm | 772 mm | 772 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm |
| Stack | 696 mm | 696 mm | 705 mm | 705 mm |
| Reach | 399 mm | 419 mm | 437 mm | 437 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 615 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 160 mm | 160 mm | 170 mm | 170 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1205 mm | 1225 mm | 1247 mm | 1247 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 638 mm | 633 mm | 630 mm | 630 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
