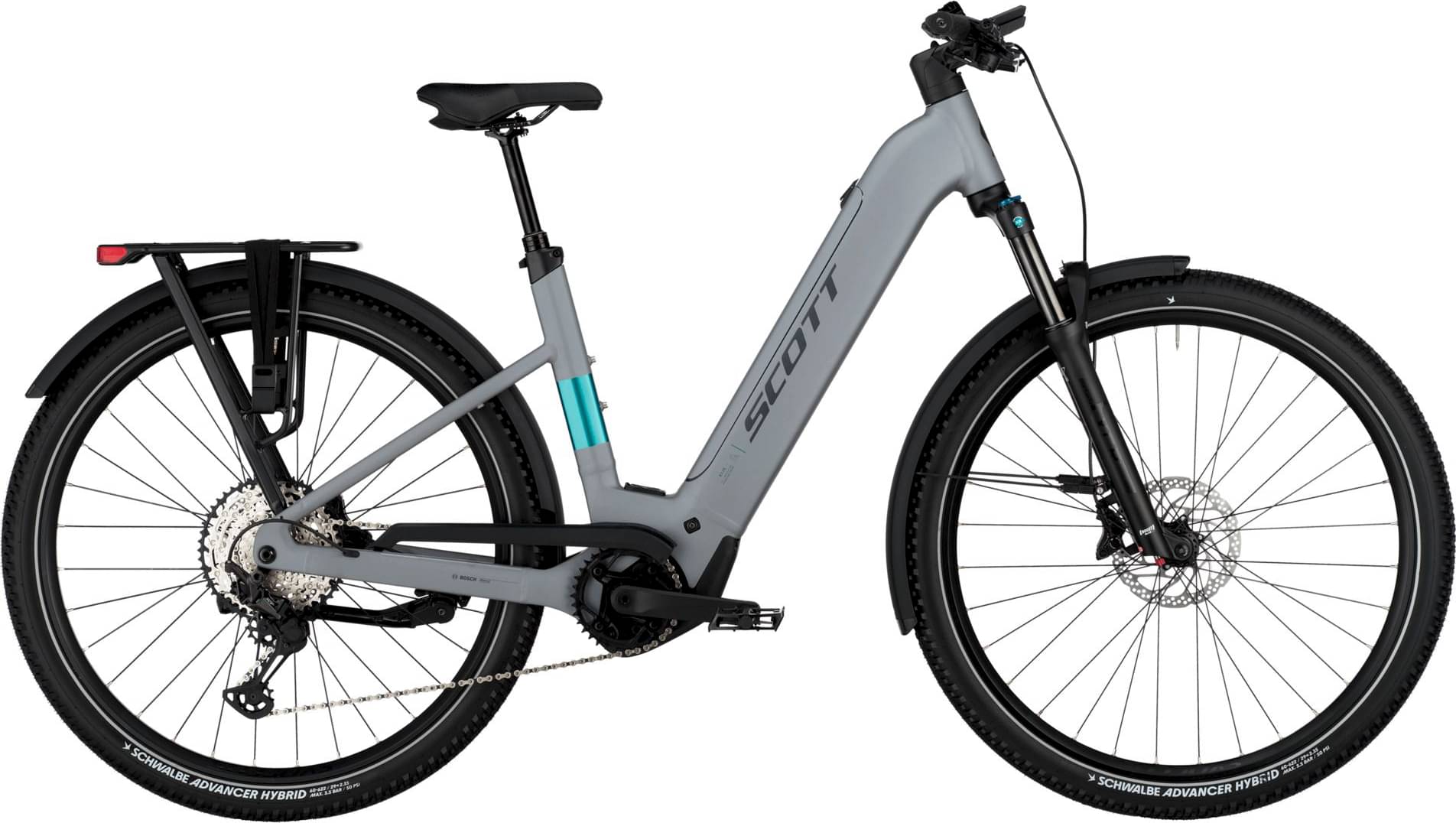

Scott Axis 10 Wave 2025
2025 E-bike
Estimate price |
5,583$
Weight | 29.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 800Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29", 6061 Alloy custom butted tubing; Top extraction battery; UDH Interface, 12x148mm with 52mm Chainline
Suspension Fork
SR Suntour XCR34X Air, Tapered, 15x110 bolt Axle, Remote Lock Out, 120mm Travel
Drivetrain
Rear Derailleur
Shimano XT RD M8100SGS 12 Speed
Shift Levers
Shimano Deore SL-M6100RA
Cassette
Shimano CS-M7100-12 10-51T 12 Speed
Crank
FSA CK-220 165mm
Chain
KMC E12S
Chain Guide
Syncros
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-TC50015BB CL, 15x110mm
Rear Hub
Shimano FH-TC500HMSBB CL, Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Advancer 60-622 Wired, Rear: Schwalbe Advancer 60-622 Wired
Brakes
Brakes
Shimano BR-MT420 Disc Brakes
Cockpit
Handlebar
Syncros Forged Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount and Kiox 300 mount
Headset
Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros Duncan Dropper Post 2.5; 31.6mm, S&M 361mm, L&XL 403mm
Motor & Battery
Motor
Bosch Performance Line CX (BDU384Y); EU: 25kmh
Battery
PowerTube 800Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.685 mm | 1.589 mm | 1.567 mm | 1.567 mm |
| Bottom Bracket Height | 299.5 mm | 299.5 mm | 299.5 mm | 299.5 mm |
| Front Center | 718 mm | 738 mm | 760 mm | 760 mm |
| Rake | 49 mm | 52 mm | 50 mm | 50 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 696 mm | 688 mm | 705 mm | 705 mm |
| Reach | 413 mm | 433 mm | 450 mm | 450 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 615 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 160 mm | 160 mm | 170 mm | 170 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1190 mm | 1210 mm | 1232 mm | 1232 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 638 mm | 633 mm | 630 mm | 630 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
