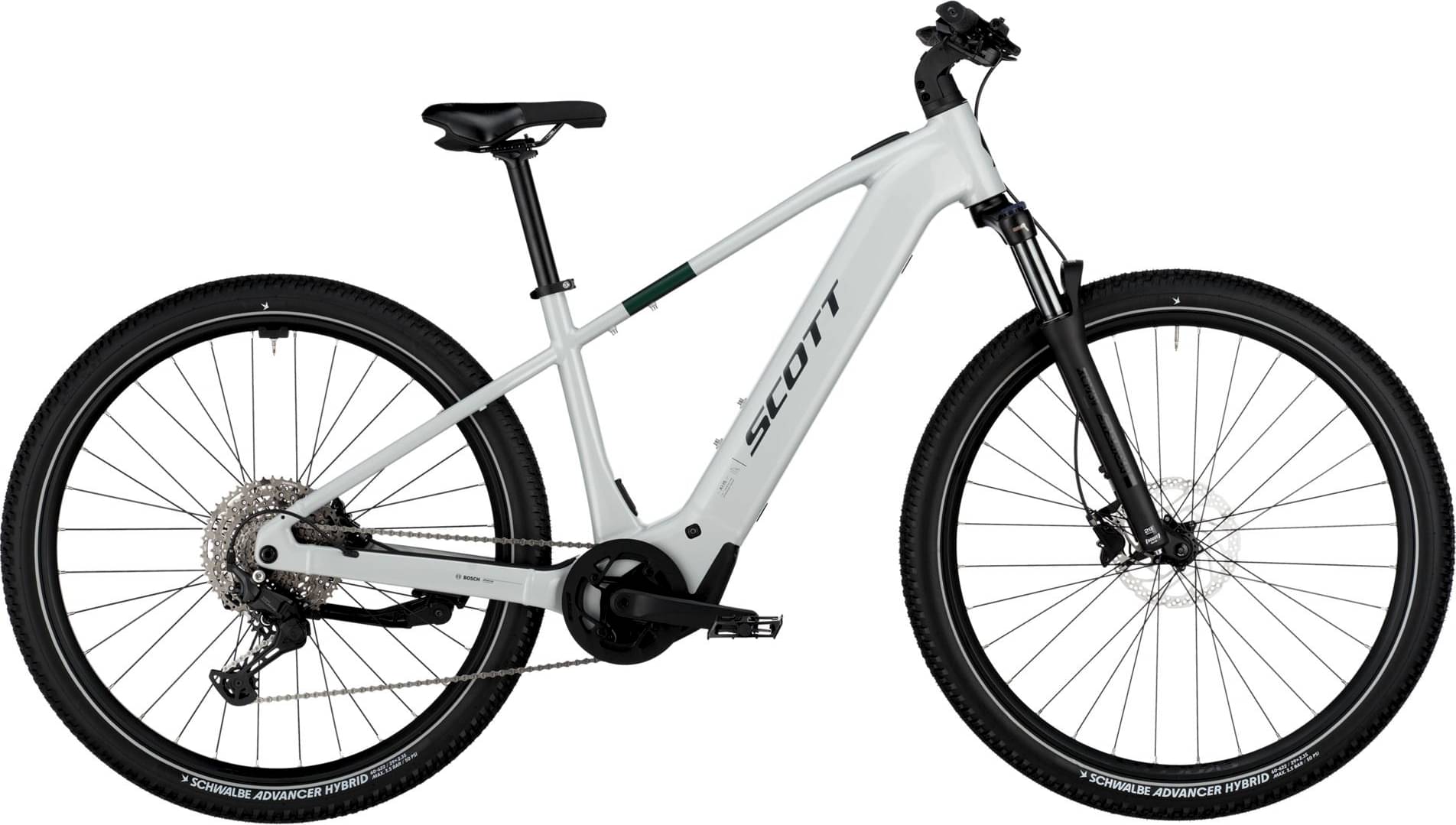

Scott Axis 30 2025

2025 E-bike
Estimate price | 4,303$
Weight | 27 kg
E-bike
Open compare Use advisor
Scott Axis 30 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 120mm
  • Fork Suntour XCM
  • Groupset CUES
  • Suspension Hardtail
  • Motor Bosch 600W 85Nm mid-drive
  • Battery PowerTube 600Wh
  • Drivetrain 1 × 11
  • Brakes Shimano Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Alloy S-XL=29" / 6061 Alloy custom butted tubing; Side extraction battery; UDH Interface / 12x148mm with 52mm Chainline

Suspension Fork

SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 120mm Travel

Drivetrain

Rear Derailleur

Shimano CUES RD-U6000GS 11 Speed

Shift Levers

Shimano SL-U600011RC

Cassette

Shimano CS-LG40011 11-50T 11 Speed

Crank

FSA CK-220 165mm

Chain

Shimano LG500

Pedals

VP VPE-506

Wheels

Front Hub

Shimano HB-TC50015BB CL / 15x110mm

Rear Hub

Shimano FH-TC500HMBB CL / Boost 12x148mm

Rims

Syncros X18 Disc

Spokes

Black Spokes

Tires

Front: Schwalbe Advancer 60-622 Wired, Rear: Schwalbe Advancer 60-622 Wired

Brakes

Brakes

Shimano BR-MT200 Disc Brakes

Cockpit

Stem

Syncros

Handlebar

Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise; Syncros Lock On Grip

Headset

Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm

Seat

Saddle

Syncros Capilano

Seatpost

Syncros M3.0 / 31.6

Motor & Battery

Motor

Bosch Performance CX; EU: 25kmh

Battery

PowerTube 600Wh

Charger

2A Charger
