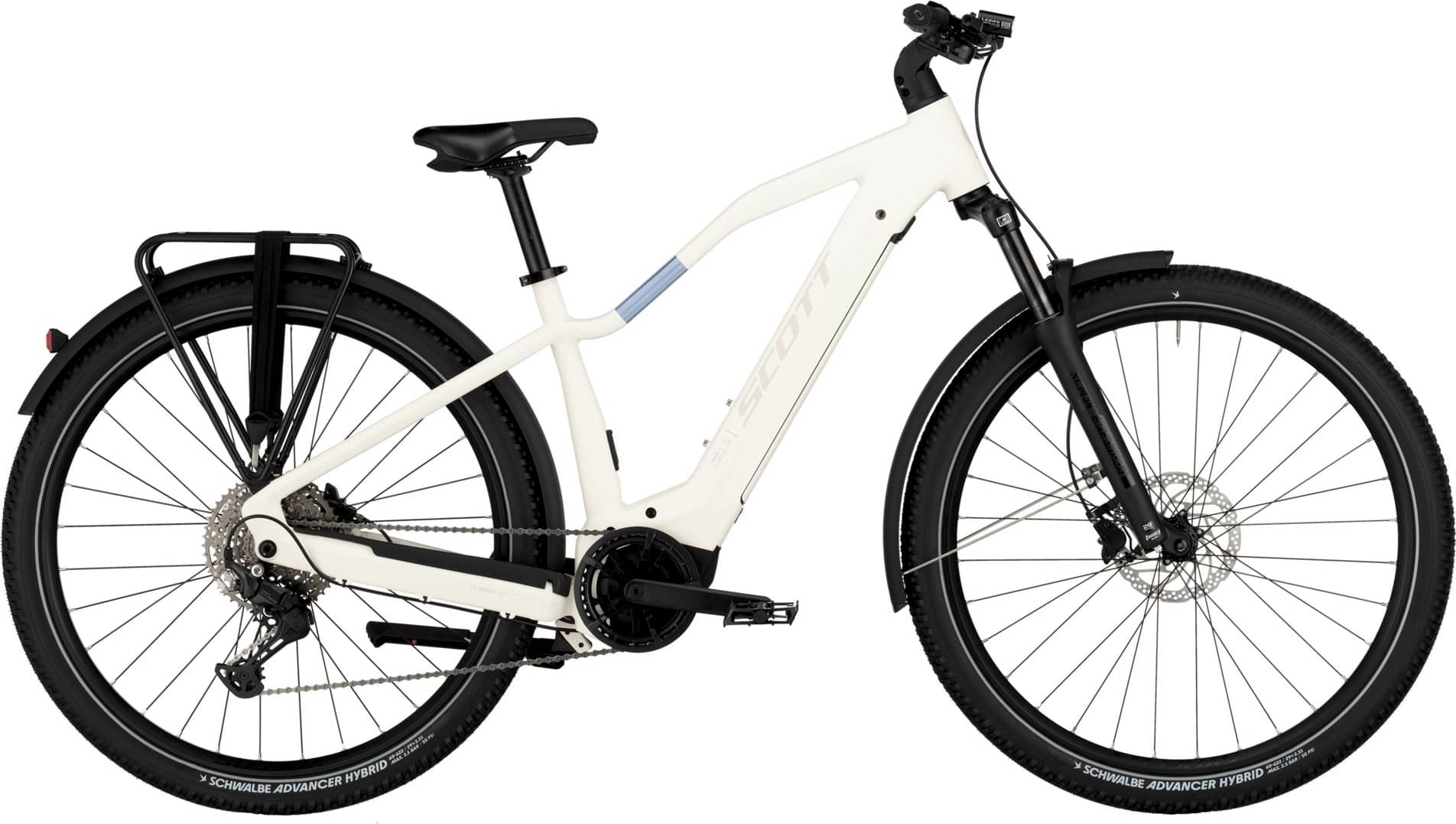

Scott Axis 40 2025

2025 E-bike
Estimate price | 4,187$
Weight | 27.5 kg
E-bike
Open compare Use advisor
Scott Axis 40 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 120mm
  • Fork Suntour XCM
  • Groupset CUES
  • Suspension Hardtail
  • Motor Bosch 600W 63Nm mid-drive
  • Battery PowerTube 625Wh
  • Drivetrain 1 × 10
  • Brakes Shimano Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Alloy S-XL=29" / 6061 Alloy custom butted tubing; Bottom extraction battery; internal cable routing

Suspension Fork

SR Suntour XCM34 Coil / Tapered / 15x110 bolt Axle / 120mm Travel

Drivetrain

Rear Derailleur

Shimano CUES RD-U6000GS 10 Speed

Shift Levers

Shimano SL-U600010RC

Cassette

Shimano CS-LG40010 11-48T 10 Speed

Crank

Miranda; 170mm

Chain

Shimano LG500

Pedals

VP VPE-506

Wheels

Front Hub

Shimano HBTC50015BB / 15x110mm

Rear Hub

Shimano FHTC500HMBB / 148x12mm

Rims

Syncros X18 Disc

Spokes

Stainless Black

Tires

Front: Schwalbe Advancer 60-622 Wired, Rear: Schwalbe Advancer 60-622 Wired

Brakes

Brakes

Shimano BR-MT200 Disc Brakes

Cockpit

Stem

Syncros with front Light mount

Handlebar

Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise; Syncros Lock On Grip

Headset

Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm

Seat

Saddle

Syncros Capilano

Seatpost

Syncros 3.0 / 31.6mm

Motor & Battery

Motor

Bosch Performance; EU: 25kmh

Battery

PowerTube 625Wh

Charger

2A Charger
