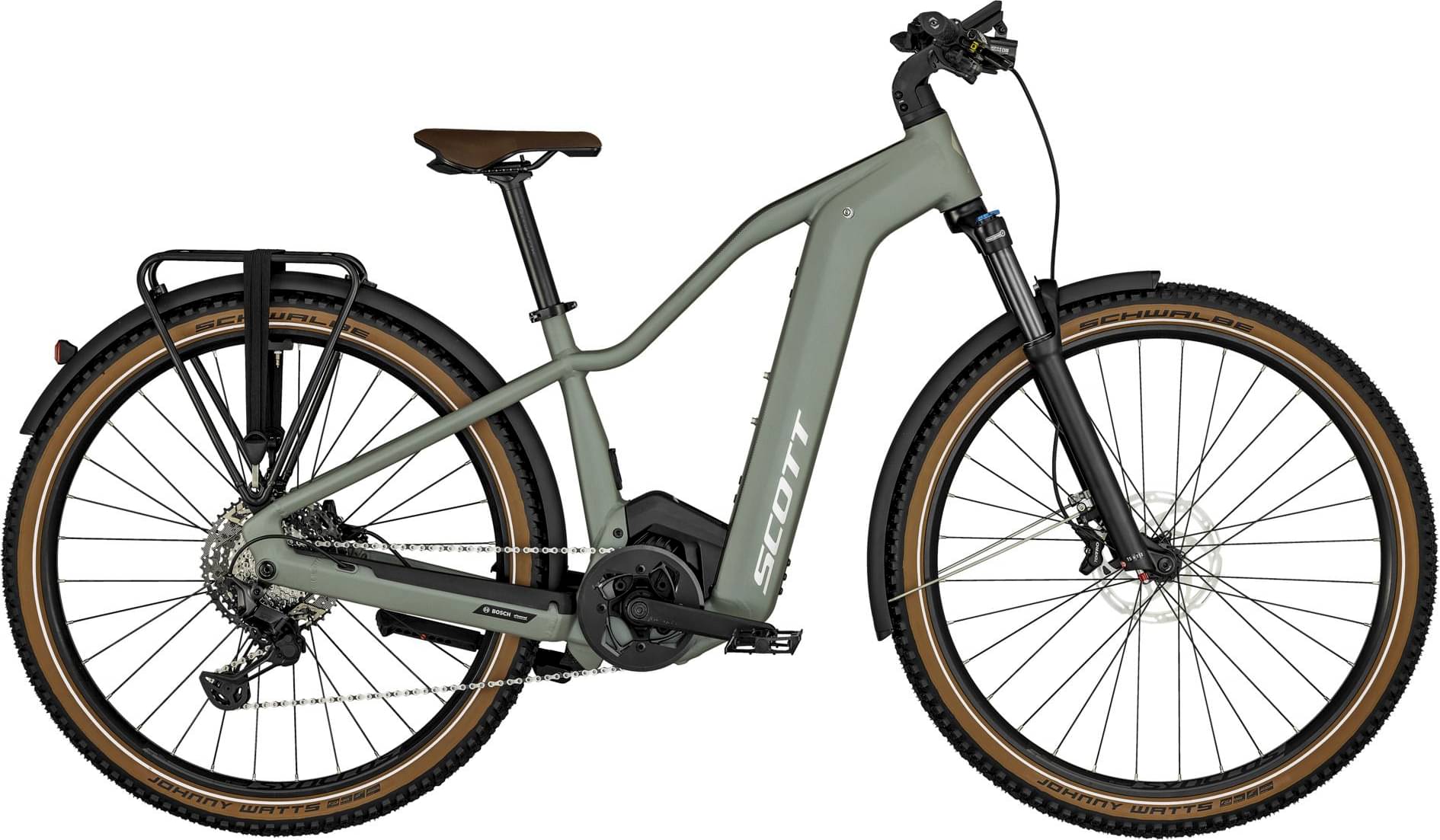

Scott Axis eRIDE 10 Lady 2024
2024 E-bike
Estimate price |
5,825$
Weight | 28.42 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy custom butted tubing; Bosch Integr. removable Battery; internal cable routing
Suspension Fork
SR Suntour XCR34 Air / Tapered / XS-L 29" / 120mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano RD M8130SGS Linkgilde / 11 Speed
Shift Levers
Shimano XT RD M8130SGS Linkgilde / 11 Speed
Cassette
Shimano CS-LG600-11 11-50T 11S
Crank
Miranda 172,5mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT400 / Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Tektro HD-M745 4 Piston
Cockpit
Stem
Syncros with front Light mount and Kiox 300 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise; Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX BES3
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.621 mm | 1.614 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 643.6 mm | 652.8 mm | 662.1 mm |
| Reach | 395.5 mm | 402.8 mm | 410.1 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1175 mm | 1186 mm | 1197 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 780 mm | 775 mm | 770 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
