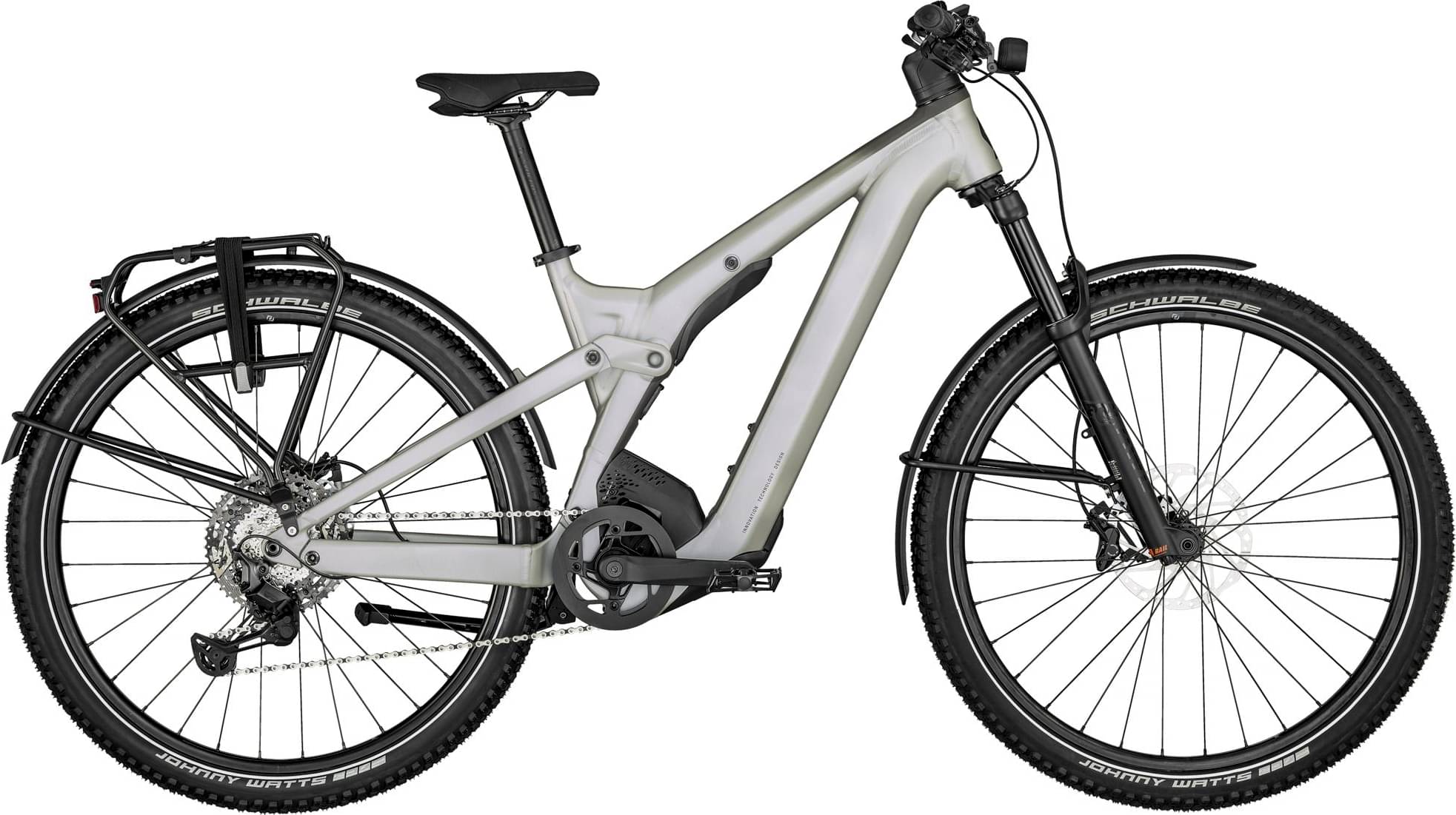

Scott Axis eRIDE FS 10 2024
2024 E-bike
Estimate price |
8,028$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / Virtual 4 link kinematic VLK; 29" / Boost 148x12mm; 140mm travel / Bosch 750Wh Integrated Battery; internal cable routing
Suspension Fork
FOX AWL / Tapered / S-XL 29" / 140mm Travel / Stealth / Remote Lock Out
Rear Shock
FOX Float eRIDE Trunnion 205x55mm
Drivetrain
Rear Derailleur
Shimano RD M8130SGS Linkgilde / 11 Speed
Front Derailleur
SCOTT Chainguide
Shift Levers
Shimano XT RD M8130SGS Linkgilde / 11 Speed
Cassette
Shimano CS-LG600-11 11-50T 11S
Crank
FSA CK-745 IS GEN4 MTB 170mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula MSC-148S / Boost 12x148mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Sapim double butted
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Shimano BR-MT520 4 Piston Disc Brakes
Cockpit
Stem
Syncros FL3.0 with front Light mount and Kiox 300 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise; Syncros Lock On Grip
Headset
Acros / 1.8"; ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Capilano
Seatpost
Syncros FL3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh
Battery
PowerTube 750Wh
Remote
SCOTT TwinLoc Remote
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.441 mm | 1.376 mm | 1.318 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 779 mm | 789 mm | 821 mm | 853 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 119.7 mm | 116 mm | 116 mm | 116 mm |
| Stack | 635 mm | 642.5 mm | 651.6 mm | 660.6 mm |
| Reach | 432.7 mm | 445.8 mm | 473.6 mm | 501.2 mm |
| Top Tube Length | 579.4 mm | 595 mm | 625.6 mm | 656.4 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 410.5 mm | 440.5 mm | 470.4 mm | 500.4 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1238 mm | 1248 mm | 1280 mm | 1312 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 759 mm | 759 mm | 759 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
