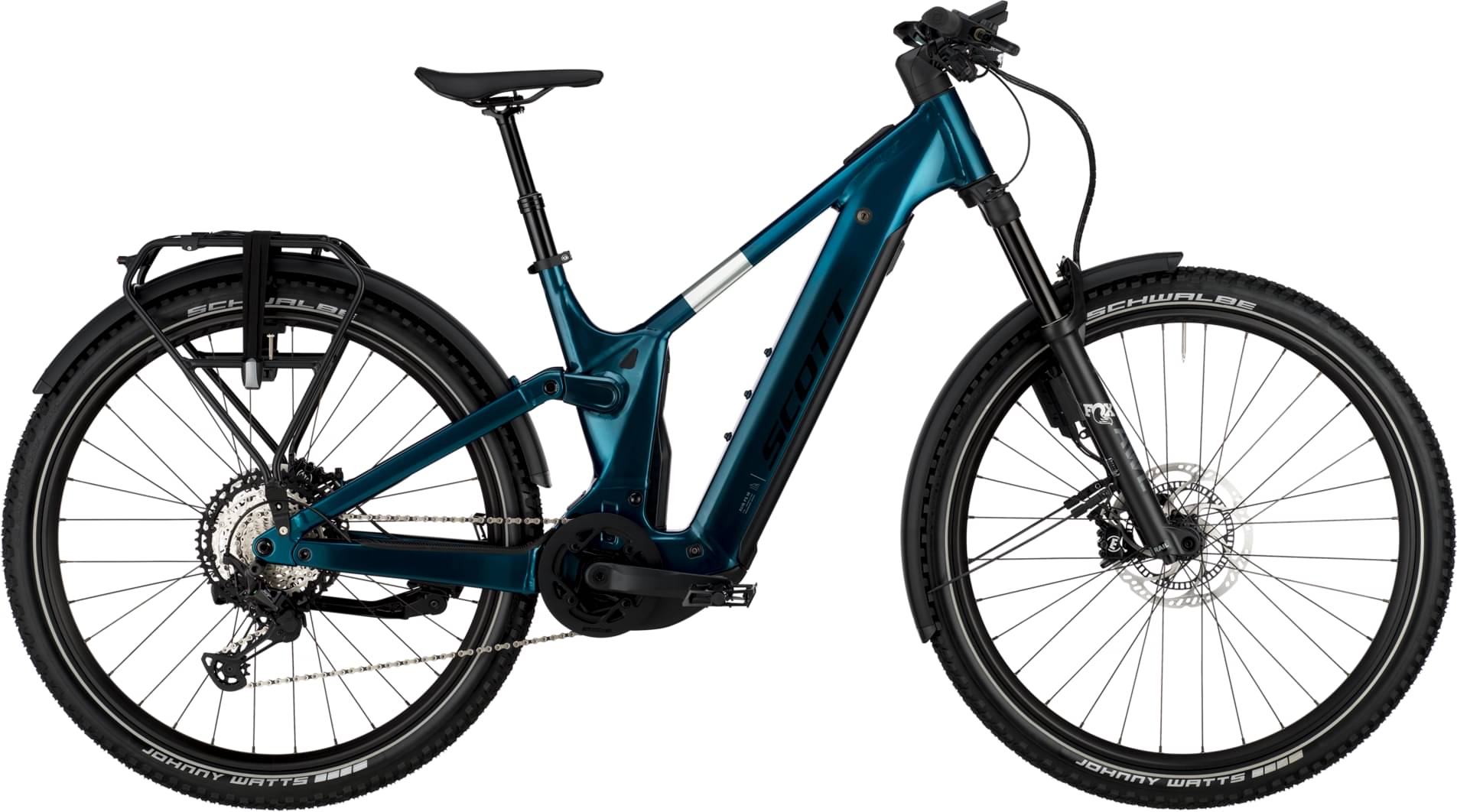

Scott Axis FS 10 2025
2025 E-bike
Estimate price |
8,491$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 800Wh -
Drivetrain 1 × 12 -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29"; Integrated Suspension Technology; Virtual 4 Link kinematic, Adjustable head angle; Syncros Cable Integration System; Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
Suspension Fork
FOX AWL 34, Grip Remote Damper 3P, 4QR Axle 15x110mm axle; 44mm offset, tapered steerer, 140mm travel
Rear Shock
FOX Float eRIDE 185x47; 5mm, 3P, Remote Ready, 140mm Travel
Drivetrain
Rear Derailleur
Shimano XT RD M8100SGS 12 Speed
Front Derailleur
SCOTT Chainguide
Shift Levers
Shimano XT SL-M8100IR
Cassette
Shimano CS-M8100-12 10-51T
Crank
FSA CK-745 165mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Formula CL-811, 15x110mm
Rear Hub
Formula CL-148M, Boost 12x148mm
Rims
Syncros MD30, 32H, 30mm, Pin Joint; Tubeless ready
Spokes
Sapim double butted
Tires
Front: Schwalbe Advancer 60-622 Wired, Rear: Schwalbe Advancer 60-622 Wired
Brakes
Brakes
Magura MTC Allroad Disc Brakes, Bosch ABS Trail
Cockpit
Handlebar
Syncros Forged Alloy Combo 680mm, Back Sweep 9°, Up Sweep 8°, 70mm, with front Light mount and Kiox 300 mount
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino E 2.0
Seatpost
Syncros Duncan Dropper Post 2.5; 31.6mm, S&M 361mm, L&XL 403mm
Motor & Battery
Motor
Bosch Performance Line CX (BDU384Y); EU: 25kmh
Battery
PowerTube 800Wh
Remote
SCOTT TwinLoc Remote 3P
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.403 mm | 1.348 mm | 1.288 mm |
| Bottom Bracket Height | 339.7 mm | 339.8 mm | 340 mm | 340.1 mm |
| Front Center | 767 mm | 790 mm | 819 mm | 853 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm |
| Trail | 123.9 mm | 124 mm | 124.2 mm | 124.4 mm |
| Stack | 641.6 mm | 646 mm | 654.8 mm | 663.5 mm |
| Reach | 440.5 mm | 460.3 mm | 485.7 mm | 515.1 mm |
| Top Tube Length | 578.2 mm | 604.5 mm | 625.4 mm | 655.8 mm |
| Seat Tube Angle | 77.6 ° | 77.4 ° | 77.3 ° | 77.3 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1218 mm | 1240 mm | 1270 mm | 1304 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 36 mm |
| Standover Height | 715 mm | 715 mm | 725 mm | 728 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
