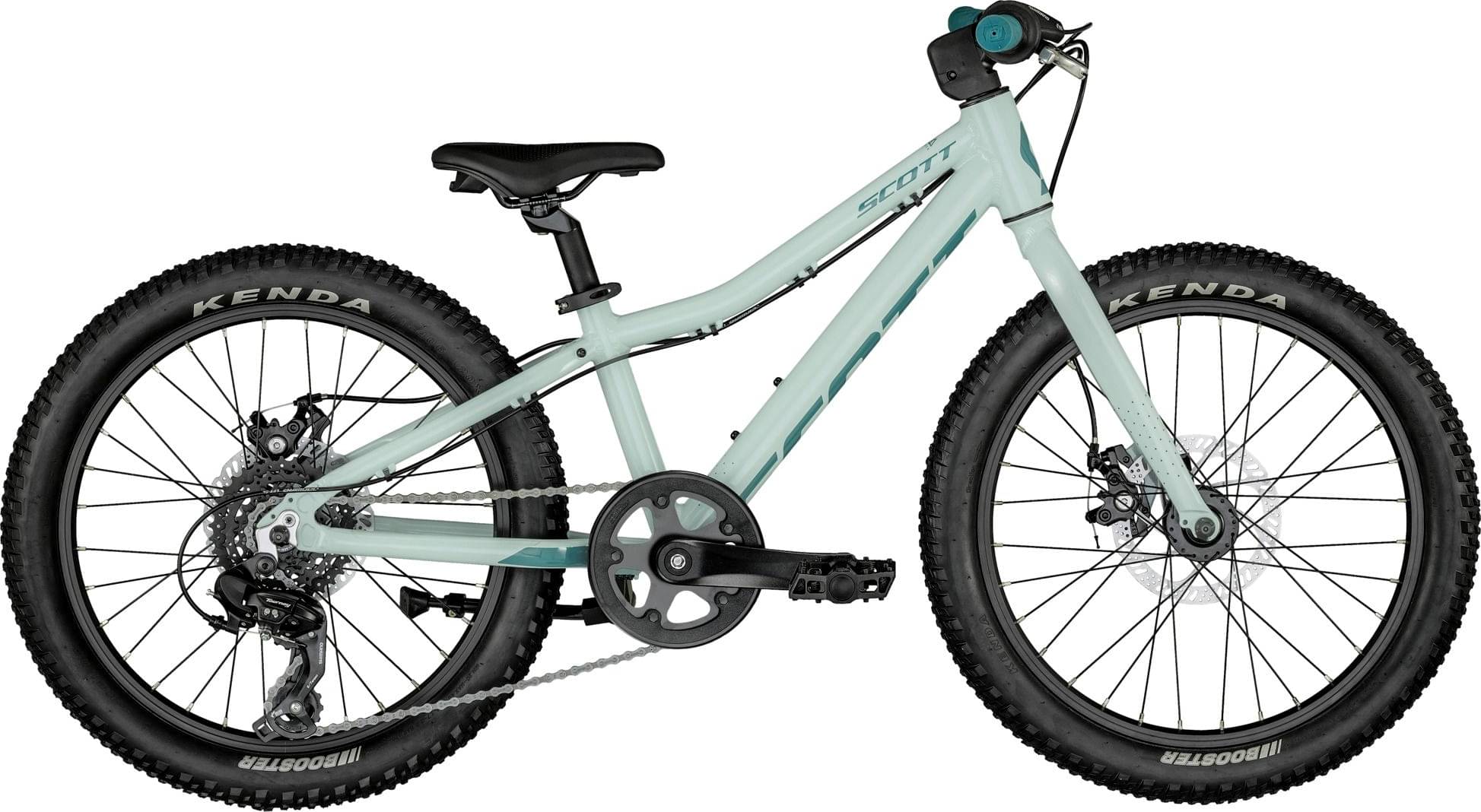

Scott Contessa 20 2024
2024 Youth
Estimate price |
464$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame JR20 Rigid Disc; Low standover height; Alloy 6061 / Semi int. HT; SCOTT dropout / IS
Suspension Fork
AL-6061 rigid fork / IS
Drivetrain
Rear Derailleur
Shimano RD-TY300; 7 Speed
Shift Levers
Shimano SL-RS 36-7; Revo Shifter
Cassette
SunRace CSM40; 7 Speed / 11-34
Crank
Prowheel / Alloy Crank 127mm; 36T / w/CG PVG double cover
Bottom Bracket
Feimin / BB68 / cartridge / square taper
Chain
KMC Z7
Pedals
MARWI SP-700 / w/Reflector
Wheels
Front Hub
Formula DC-19F / QR
Rear Hub
Formula DC-25-7-R / QR
Rims
Shining V-6NS Disc
Spokes
15G / UCP / black
Tires
Front: Kenda K1227 Booster / 20x2.4" / 30TPI, Rear: Kenda K1227 Booster / 20x2.4" / 30TPI
Brakes
Brakes
Tektro SCM-02; Mech. Disc Brake / 160mm rotor
Brake Levers
Tektro JL-510 TS / RS
Cockpit
Stem
LEADTEC LCS-7130; 50mm / 25.4mm clamp
Handlebar
Junior Flat-Bar / Alloy; 540mm / Syncros Youth 100/80 Grip
Headset
Feimin FP-H807; 1 1/8" Semi Int.
Seat
Saddle
Syncros Youth
Seatpost
Alloy 26.8x250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.478 mm |
| Bottom Bracket Height | 237 mm |
| Front Center | 489 mm |
| Rake | 44 mm |
| Stack | 427 mm |
| Reach | 289 mm |
| Top Tube Length | 435 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 260 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 365 mm |
| Wheelbase | 852 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 505 mm |
| Wheels | 20" |
