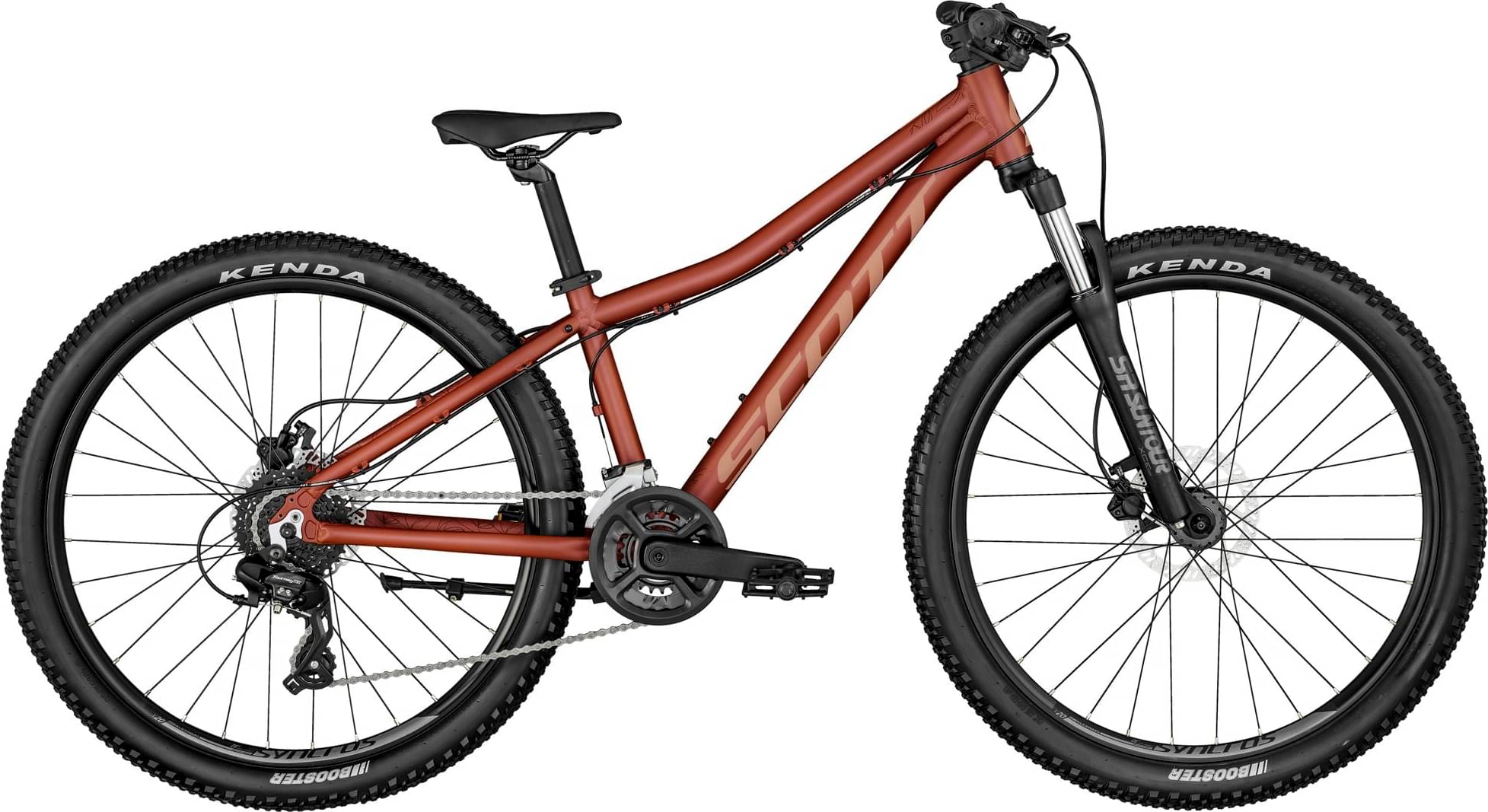

Scott Contessa 26 disc (KH) 2024
2024 Youth
Estimate price |
813$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JR26 Susp Disc; Alloy 6061 / Performance geometry; SCOTT dropout / IS
Suspension Fork
SR Suntour XCE28; 100mm travel; Softer spring setup
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800; 16 Speed
Front Derailleur
Shimano FD-M315-TS / 31.8mm
Shift Levers
Shimano SL-M315; R-Fire Plus
Cassette
SunRace CSM55 8AV / 11-34T
Crank
Prowheel; 36-22T w/CG
Bottom Bracket
Feimin / BB68 / cartridge / square taper
Chain
KMC Z8.3
Pedals
Feimin FP-803 / w/Reflector
Wheels
Front Hub
Formula DC-19-F / QR Disc
Rear Hub
Formula DC-25-8-R / QR Disc
Rims
Syncros X-20 Disc / 32H / black
Spokes
15G / stainless / black
Tires
Front: Kenda K1227 Booster / 26x2.4" / 30TPI, Rear: Kenda K1227 Booster / 26x2.4" / 30TPI
Brakes
Brakes
Tektro HD-M276 / Hydr. Disc; 160F/160R rotor
Brake Levers
Tektro HD-M276 short reach
Cockpit
Stem
Alloy 50mm / +10° / 25.4mm clamp
Handlebar
Kids riser bar alloy; 580mm / 20mm Rise; Syncros Grips Kids100/80
Headset
Feimin FP-H807; 1 1/8" Semi Int.
Seat
Saddle
Syncros Future Pro
Seatpost
Alloy / 26.8mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 26" |
|---|---|
| Stack Reach Ratio | 1.471 mm |
| Bottom Bracket Height | 308 mm |
| Front Center | 616 mm |
| Rake | 38 mm |
| Stack | 553 mm |
| Reach | 376 mm |
| Top Tube Length | 540 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 330 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 425 mm |
| Wheelbase | 1038 mm |
| Bottom Bracket Drop | 38 mm |
| Standover Height | 666 mm |
| Wheels | 26" |
