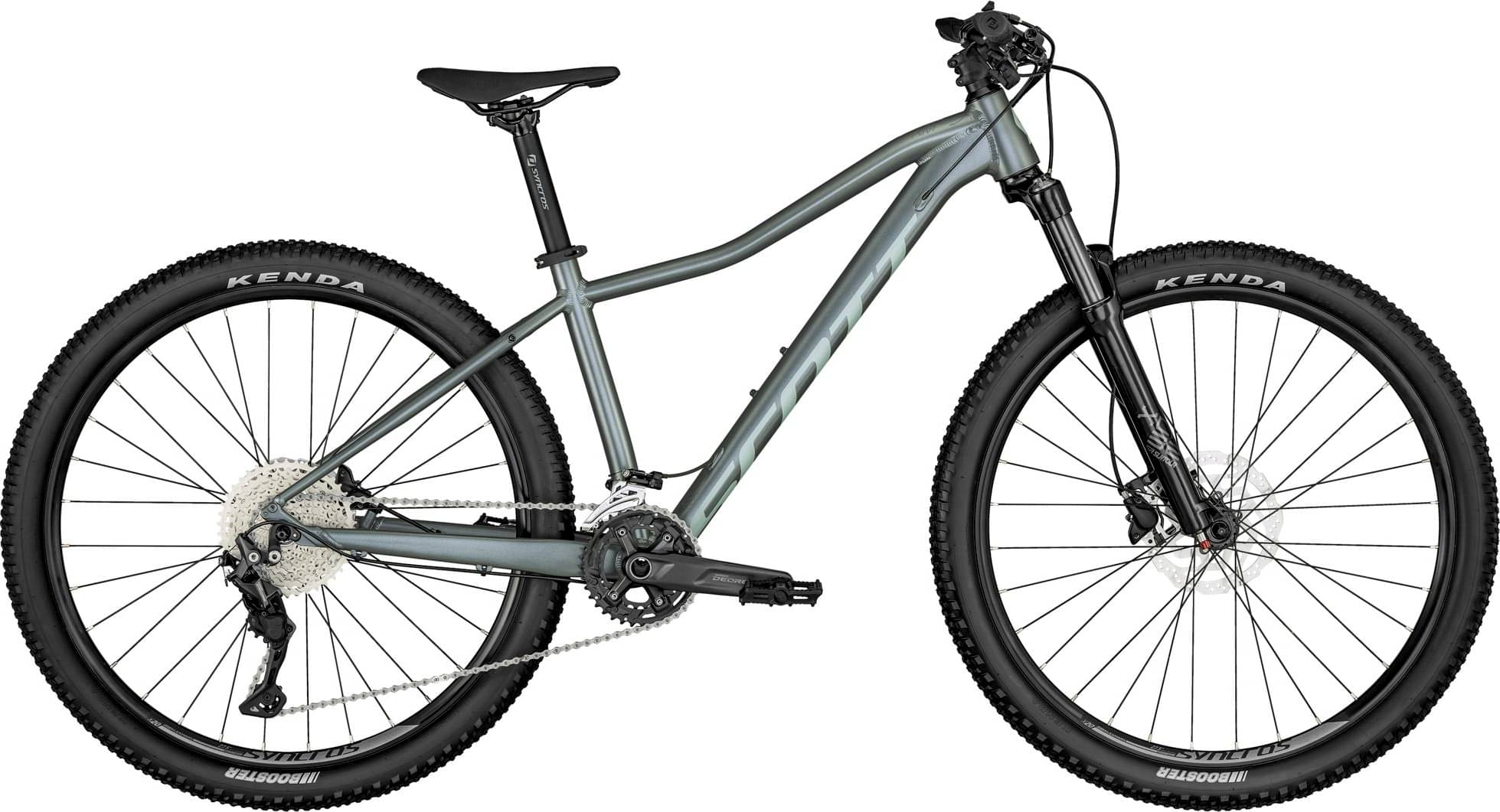

Scott Contessa Active 10 Cu (KH) 2024
2024 Mountain
Estimate price |
1,164$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Contessa Active 700/900 series / Alloy 6061 Custom Butted Tubing; Boost QR 5x141mm / Tapered Headtube / BB92 / PF; Internal Cable Routing / replaceable hanger
Suspension Fork
Suntour XCR32-RL-R; Air / Alloy Steerer; Remote Lockout / Reb. Adj.; 100mm travel
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-SGS; Shadow Type / 11 Speed
Shift Levers
Shimano CUES SL-U6000-11 / 2 way release
Cassette
Shimano CUES CS-LG400-11 / 11-50T
Crank
Shimano CUES FC-U6000-1; 32T
Bottom Bracket
Shimano BB-MT500-PA / shell 41x92mm
Chain
KMC X11
Pedals
VP VP-536
Wheels
Front Hub
Formula CL51
Rear Hub
Formula CL2241 / 141QR
Rims
Syncros X-20 Disc; 32H / black
Spokes
14 G / stainless / black
Tires
Front: Kenda Booster; 2.4" / 30TPI, Rear: Kenda Booster; 2.4" / 30TPI
Brakes
Brakes
Shimano MT200 / Hydr. Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 / 680mm; black / 31.8mm / 12mm rise / 9° BS; Syncros Women Comfort lock-on grip
Headset
Syncros OE Press Fit / Reduce 1.5"-1 1/8"; OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros Savona 2.5 V-Concept
Seatpost
Syncros 3.0; 31.6mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.369 mm | 1.461 mm | 1.443 mm |
| Bottom Bracket Height | 308.5 mm | 308.5 mm | 316 mm | 316 mm |
| Front Center | 656 mm | 684 mm | 659 mm | 680 mm |
| Rake | 44 mm | 44 mm | 18 mm | 23 mm |
| Trail | 96 mm | 96 mm | 128 mm | 123 mm |
| Stack | 552 mm | 575 mm | 612 mm | 622 mm |
| Reach | 402 mm | 420 mm | 419 mm | 431 mm |
| Top Tube Length | 560 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 395 mm | 440 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 450 mm | 450 mm |
| Wheelbase | 1087 mm | 1115 mm | 1102 mm | 1123 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 60 mm | 60 mm |
| Standover Height | 678 mm | 704 mm | 750 mm | 777 mm |
| Wheels | 27" | 27" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
