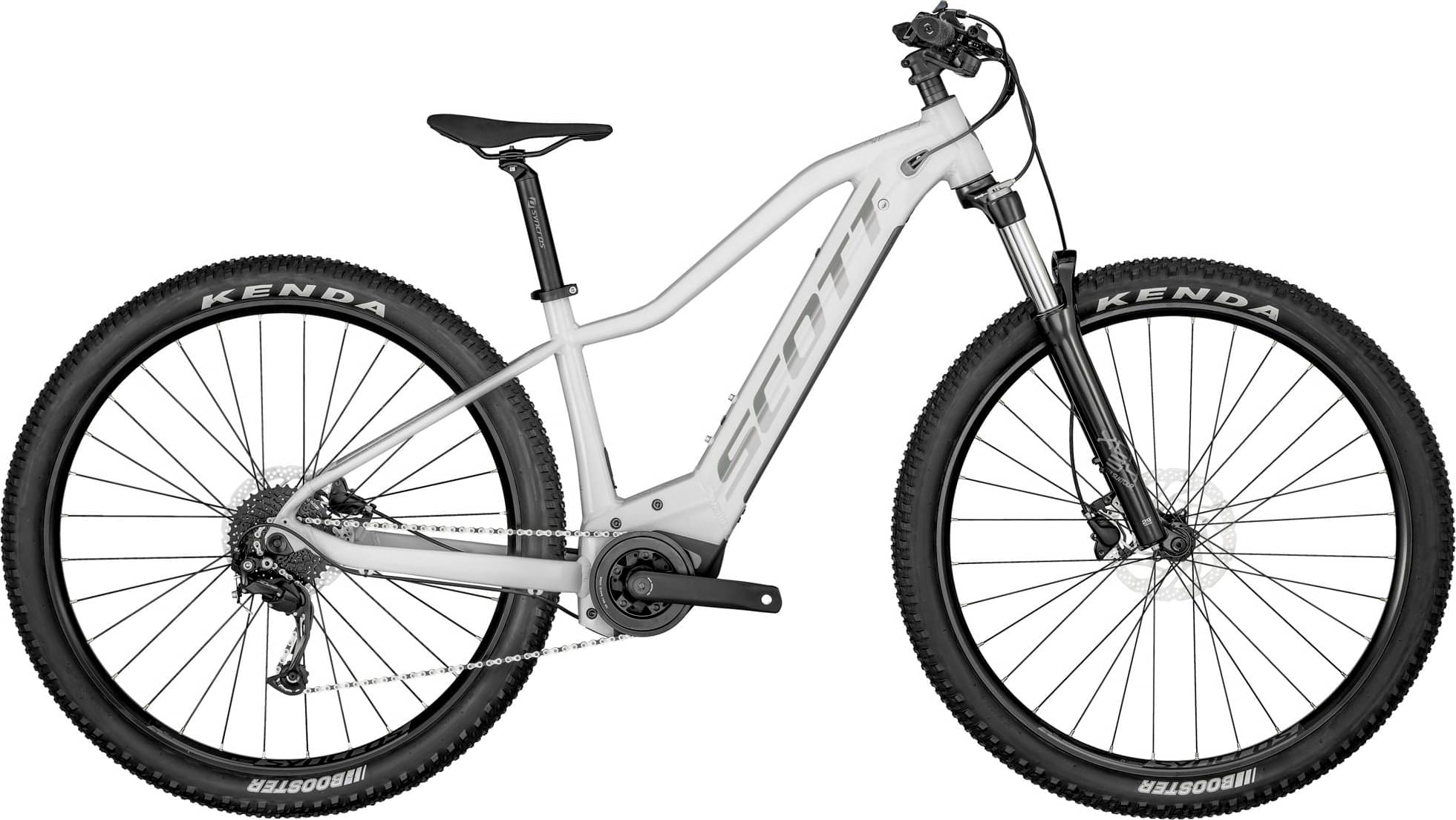

Scott Contessa Active eRIDE 930 2024
2024 E-bike
Estimate price |
3,657$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame; Bended TT; Tapered Headtube E2; Custom butted tubing / internal cable routing; Bosch Gen3 / Integr. removable Battery / Boost 148x12mm; DO Kickstand mount / Range Booster Ready
Suspension Fork
SR Suntour XCM34 Coil; 15x110mm QR axle / Tapered Steerer; Remote Lockout / 120mm travel
Drivetrain
Rear Derailleur
Shimano RD-M3100 / 9 Speed
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200-9 ACERA 11-36
Crank
FSA CK-200 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
KMC e9S
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X18 / 32H / 30mm / Pin Joint
Spokes
Stainless Black
Tires
Front: Kenda Booster 29x2.6" / 30TPI, Rear: Kenda Booster 29x2.6" / 30TPI
Brakes
Brakes
Shimano BR-MT200 Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise; Syncros Women Comfort lock-on grips
Headset
Syncros OE / Tapered 1.5"-1 1/8"; semi integ. OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros Savona 2.5 V-Concept
Seatpost
Syncros 3.0 / 31.6mm
Motor & Battery
Motor
Bosch Active Line Plus; EU: 25kmh / INT: 20mph
Battery
PowerTube 500Wh
Remote
SR Suntour Remote
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.586 mm | 1.543 mm | 1.509 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 691 mm | 691 mm | 712 mm | 727 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 114.4 mm | 114.4 mm | 114.4 mm | 110.7 mm |
| Stack | 632 mm | 632 mm | 642 mm | 653 mm |
| Reach | 398.6 mm | 398.6 mm | 416 mm | 432.6 mm |
| Top Tube Length | 580 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1165 mm | 1165 mm | 1186 mm | 1201 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 741 mm | 766 mm | 771 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
