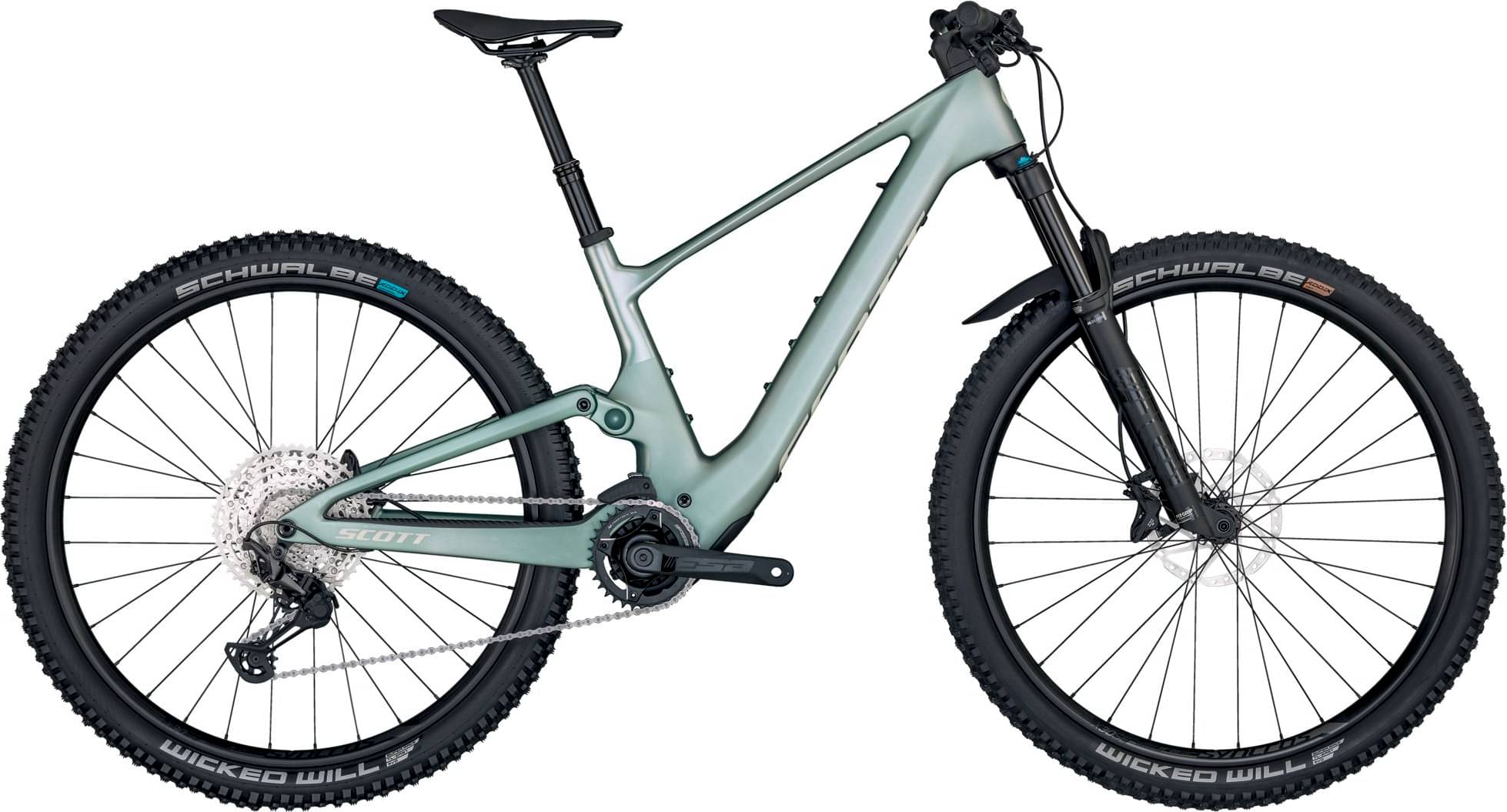

Scott Contessa Lumen eRIDE 900 2025
2025 E-bike
Estimate price |
8,142$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor TQ 50Nm mid-drive -
Battery TQ Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon HMF Main Frame / Alloy SST-CST; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 Float Rhythm Air Grip; 3 modes / Kabolt 15x110mm axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear Shock
FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Reb. Adj.; Bearing Hardware / Travel 130-90-Lockout / T165X45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed
Shift Levers
Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp
Cassette
Shimano CS-M6100 / 10-51T
Crank
FSA Alloy crankset / 175mm / 34T
Chain
Shimano CN-M6100
Chain Guide
e*thirteen / e*spec Slider
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula CL-148M / 12x148mm / Micro Spline; Syncros Axle w/Removable Lever; with 6mm Allen; T30 and T25 Tools
Rims
Syncros X-30SE / 32H / 30mm; Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
Shimano Deore M6120 4 Piston Disc
Cockpit
Stem
Syncros DC 2.0; Syncros Cable Integration System; 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.; mini Rise / back sweep 8° / 760mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Savona 1.5; CRMO rails
Seatpost
Syncros Duncan Dropper Post 2.0; 31.6mm / S & M size 125mm / L size 150mm
Motor & Battery
Motor
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery
TQ Internal 360Wh
Charger
TQ 100-240V-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.379 mm | 1.313 mm |
| Bottom Bracket Height | 338.5 mm | 338.5 mm | 338.5 mm |
| Front Center | 729 mm | 759 mm | 793 mm |
| Rake | 45 mm | 45 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 615 mm | 615 mm | 625 mm |
| Reach | 416 mm | 446 mm | 476 mm |
| Top Tube Length | 562 mm | 589 mm | 620 mm |
| Seat Tube Angle | 76.8 ° | 77 ° | 77.2 ° |
| Seat Tube Length | 415 mm | 440 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1176 mm | 1206 mm | 1240 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 765 mm | 767 mm | 780 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
