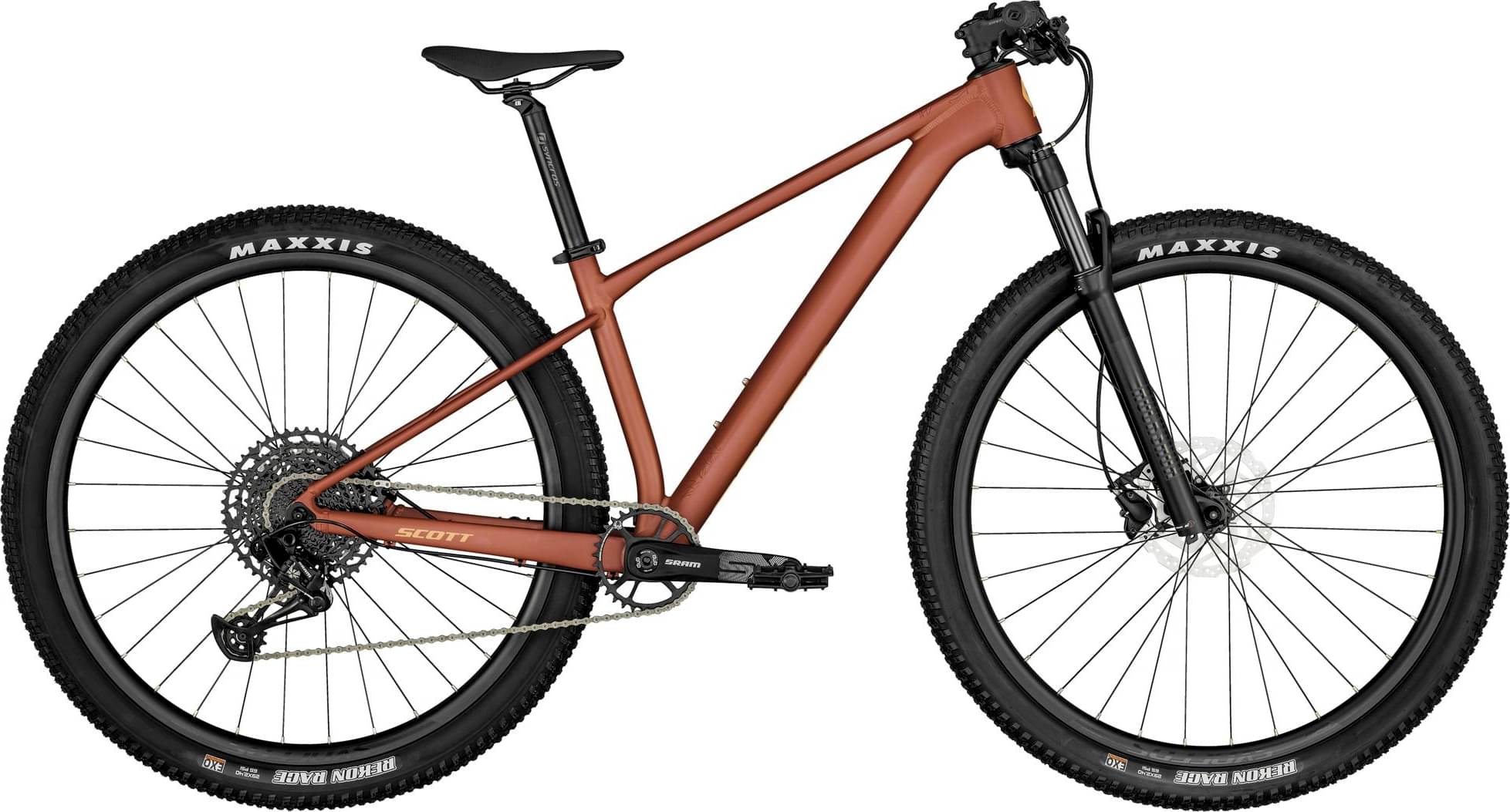

Scott Contessa Scale 940 2024
2024 Mountain
Estimate price |
1,375$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale Alloy 6061 Custom Butted Tubing; Syncros Cable Integration System / Tapered Headtube; BB92 / QR 5x141mm with 55mm Chainline
Suspension Fork
RockShox Judy Silver TK Solo Air; 46mm offset / Tapered Steerer / Reb. Adj.; Lockout / 100mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle 12 Speed
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM SX-PG1210 / 11-50 T
Crank
SRAM SX Eagle DUB; 55mm CL / 30T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN SX Eagle
Pedals
Femin FP873ZU
Wheels
Front Hub
Formula CL-51
Rear Hub
Formula CL-2241 / QR 5x141mm
Rims
Syncros X-27 / 32H / 27mm
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Maxxis Rekon Race / 2.4" / 60TPI, Rear: Maxxis Rekon Race / 2.4" / 60TPI
Brakes
Brakes
Shimano MT200 DiscBrake
Cockpit
Stem
Syncros Alloy 6061; oversized 31.8mm / 1 1/8" / 6° angle
Handlebar
Syncros Alloy 6061; T shape Flat / 9° / 700mm; Syncros Performance XC grips
Headset
Syncros - Acros OE Cable Routing HS System; OD 50/62mm / ID 42/56mm
Seat
Saddle
Syncros Savona 2.5 V-Concept
Seatpost
Syncros / 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.418 mm | 1.367 mm | 1.327 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm |
| Front Center | 694 mm | 720 mm | 746 mm |
| Rake | 44 mm | 44 mm | 46 mm |
| Trail | 112.6 mm | 112.6 mm | 112.6 mm |
| Stack | 596.1 mm | 605.3 mm | 614.6 mm |
| Reach | 420.3 mm | 442.8 mm | 463.3 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1111 mm | 1138 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 755 mm | 786 mm | 805 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
