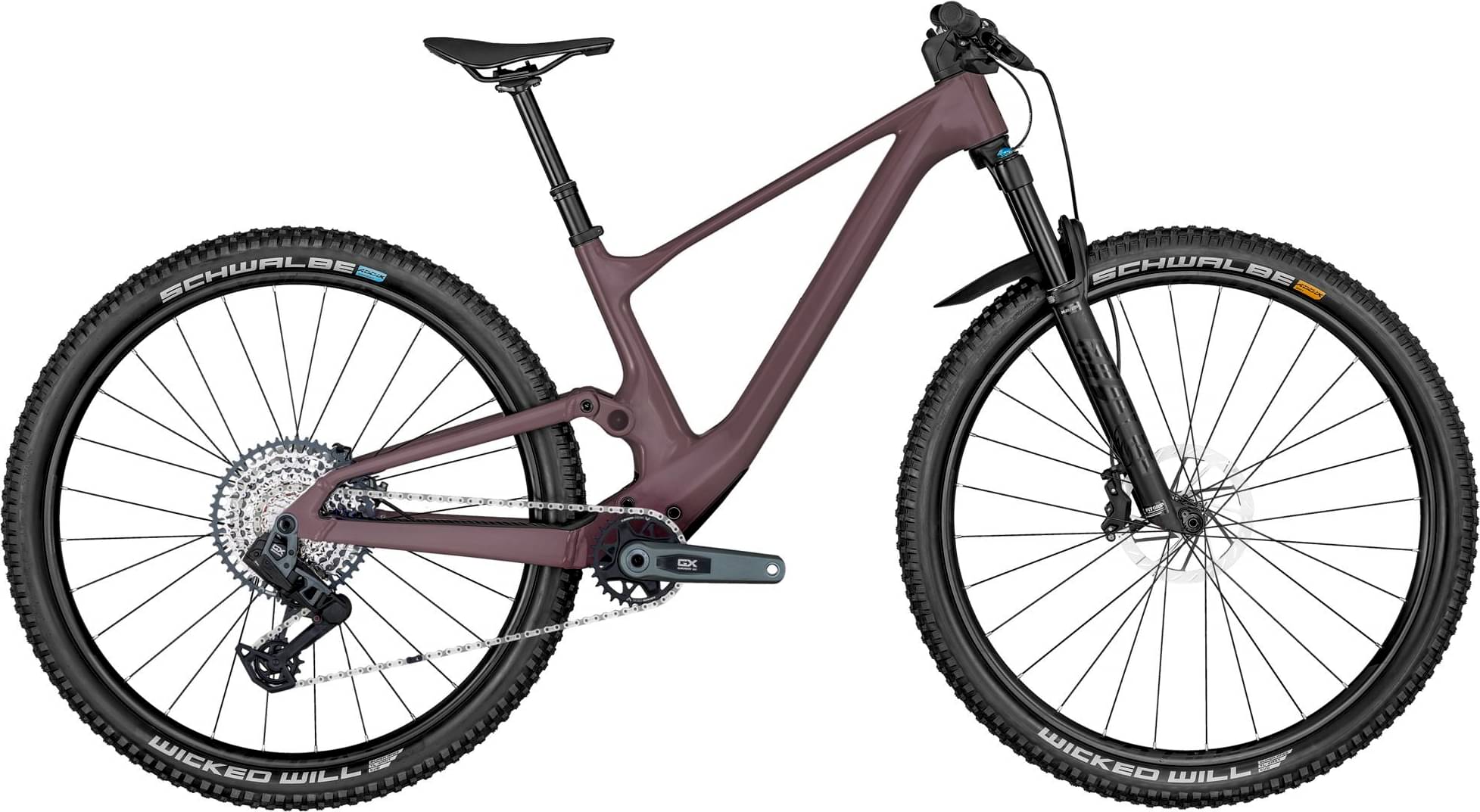

Scott Contessa Spark 910 TR 2024
2024 Mountain
Estimate price |
6,307$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle Transmission, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark Carbon HMF Mainframe with Alloy 6011 Swingarm; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 Float Performance Air Grip; 3-Modes / Kabolt 15x110mm axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear Shock
FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Reb. Adj.; Bearing Hardware / Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52
Crank
SRAM GX Eagle Transmission; DUB / 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN GX Eagle Transmission
Wheels
Rims
Syncros Silverton 2.5-30 6 Bolt; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready rim 28H / XD Driver; Syncros Axle w/Removable Lever; with 6mm Allen; T30 and T25 Tools
Tires
Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
SRAM DB8 4 Piston Disc
Cockpit
Stem
Syncros DC 1.5; Syncros Cable Integration System; 0° rise / 7050 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Fraser 1.5 DC Alloy 7075 D.B.; Mini Rise / back sweep 8° / 740mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Savona 2.0 V-Concept; CrMo rails
Seatpost
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S size 110mm / M size 140mm / L size 160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.381 mm | 1.314 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm |
| Front Center | 711 mm | 740 mm | 771 mm |
| Rake | 42 mm | 41 mm | 38 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 607.5 mm | 607.5 mm | 617.7 mm |
| Reach | 410 mm | 440 mm | 470 mm |
| Top Tube Length | 561 mm | 589 mm | 613 mm |
| Seat Tube Angle | 75.7 ° | 75.9 ° | 76.4 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1145 mm | 1174 mm | 1205 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Standover Height | 759 mm | 767 mm | 778 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
