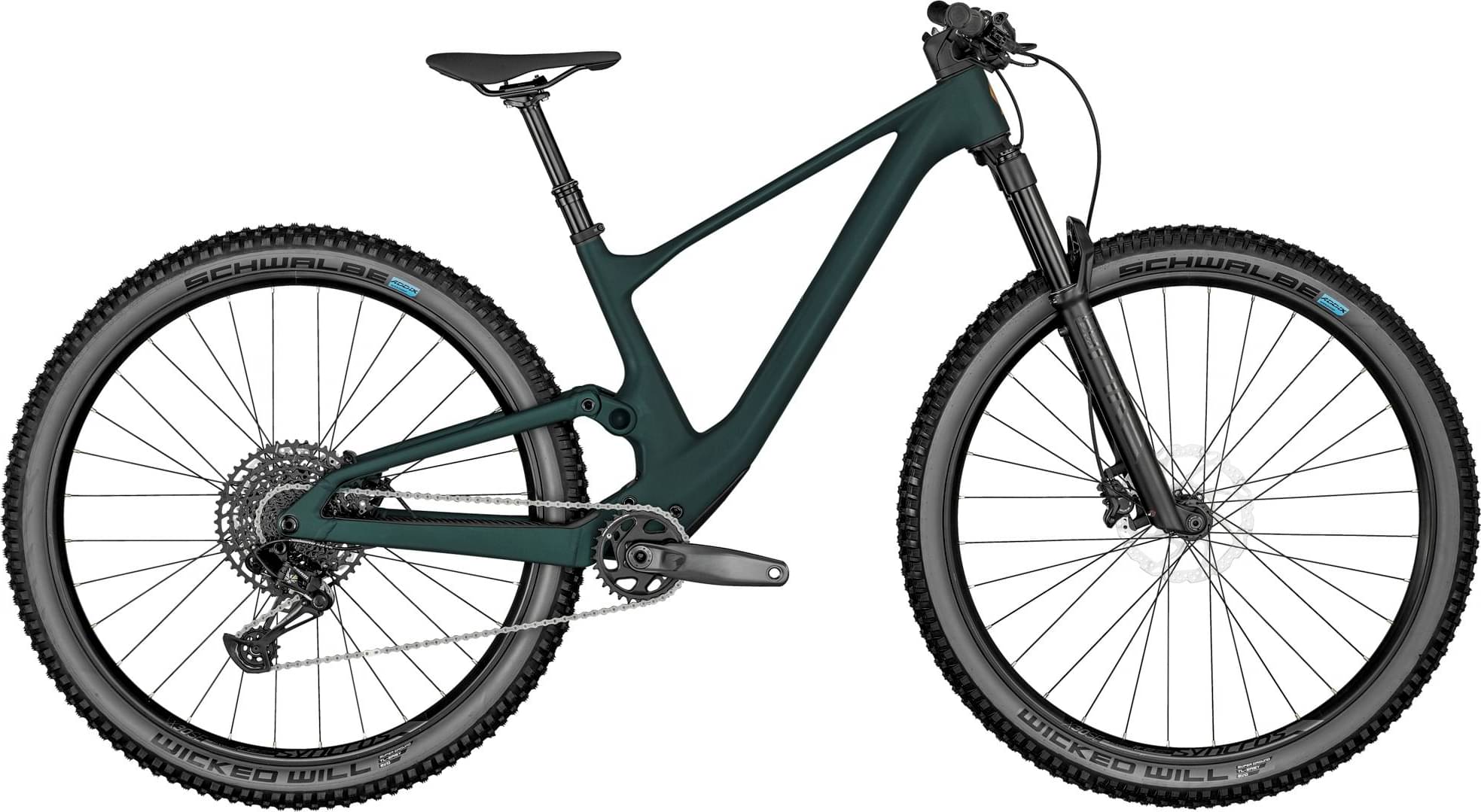

Scott Contessa Spark 920 2024
2024 Mountain
Estimate price |
3,999$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike
-
Groupset X1, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark Carbon HMF Mainframe with Alloy 6011 Swingarm; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
RockShox Pike RL3 Air; Custom Charger 3-Mode Damper; 15x110mm Maxle Lite / 44mm offset / Tapered steerer; Lockout / Reb. Adj. / 130mm travel
Rear Shock
RockShox Deluxe Select RL3 Trunnion; 3 modes / Lockout-Trail-Descend; Debon Air / Reb. Adj.; Travel 120mm / T165X45mm
Drivetrain
Rear Derailleur
SRAM NX Eagle 12 Speed
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM SX-PG1210 / 11-50 T
Crank
SRAM X1 Eagle DUB; 55mm CL / 30T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN NX Eagle
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula CL-148S / 12x148mm; Syncros Axle w/Removable Lever; with 6mm Allen, T30 and T25 Tools
Rims
Syncros X-30SE / 32H / 30mm; Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Schwalbe Wicked Will 29x2.4" EVO; Super Ground / TLE / 67EPI / Addix Speed Grip, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Ground / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
Shimano MT501 Disc
Cockpit
Stem
Syncros DC 2.0; Syncros Cable Integration System; 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B.; Mini Rise / back sweep 8° / 740mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Savona 2.5 V-Concept
Seatpost
Syncros Duncan Dropper Post 2.5; 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.381 mm | 1.314 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm |
| Front Center | 711 mm | 740 mm | 771 mm |
| Rake | 42 mm | 41 mm | 38 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 607.5 mm | 607.5 mm | 617.7 mm |
| Reach | 410 mm | 440 mm | 470 mm |
| Top Tube Length | 561 mm | 589 mm | 613 mm |
| Seat Tube Angle | 75.7 ° | 75.9 ° | 76.4 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1145 mm | 1174 mm | 1205 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Standover Height | 759 mm | 767 mm | 778 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
