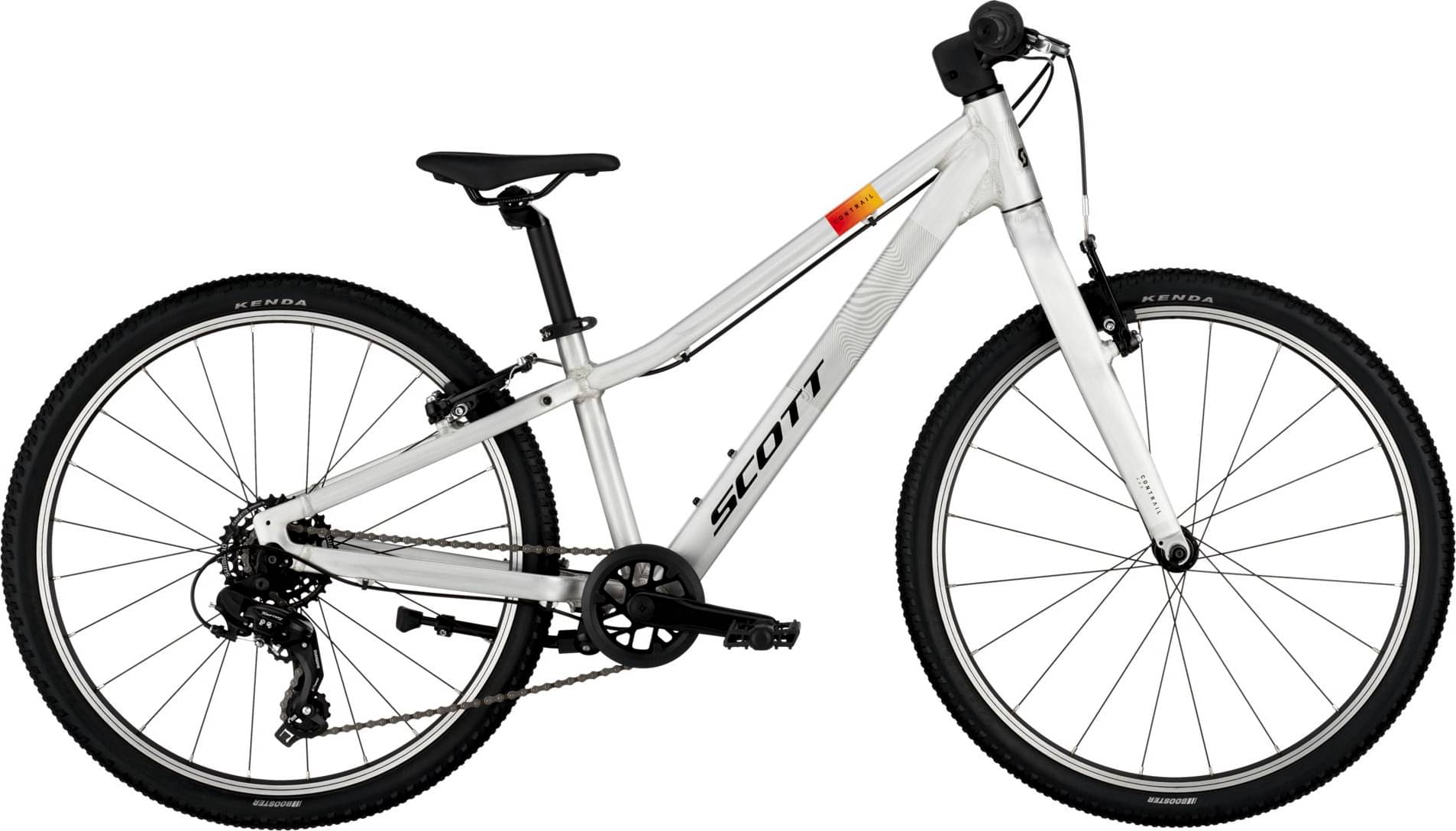

Scott Contrail 400 2025
2025 Youth
Estimate price |
581$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KIDS24 V-Brake / Alloy 6061 / custom tubing / semi int. CBR / BB68 / SCOTT dropout / PM
Suspension Fork
AL6061 rigid fork / V-Brake
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300; 7 Speed
Shift Levers
Shimano SL-RV300-7R; Revo Shifter
Cassette
Shimano CS-HG200-7; 12-28T / 7-Speed
Crank
Prowheel / Alloy Crank 130mm / 28T / narrow QF / w/CG PVG double cover
Bottom Bracket
Feimin / BB68 / cartridge / square taper
Chain
KMC Z7
Pedals
Kids pedal / w/Reflector
Wheels
Front Hub
Formula RB31-FQR / 20H / 5x100mm
Rear Hub
Formula RB32-7QR / 24H / 5x135mm
Rims
Alloy 21mm anodized black / V-Brake
Spokes
15G / UCP / black
Tires
Front: Kenda K1227 Booster / 24x17.5" / 30TPI, Rear: Kenda K1227 Booster / 24x17.5" / 30TPI
Brakes
Brakes
Tektro V-Brake
Brake Levers
Tektro TS325A / KIDS specific
Cockpit
Stem
LEADTEC Alloy 50mm / +10° / 25.4 clamp
Handlebar
LEADTEC Kids riser bar alloy D:19; 540mm / 20mm Rise; Syncros Grips Kids100/80
Headset
Feimin / 48/28.6/44/30 / semi int.
Seat
Saddle
Syncros KIDS
Seatpost
Alloy / 27; 2mm / 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.465 mm |
| Bottom Bracket Height | 260.9 mm |
| Front Center | 577 mm |
| Rake | 35 mm |
| Stack | 536.2 mm |
| Reach | 366.1 mm |
| Top Tube Length | 511.9 mm |
| Seat Tube Angle | 74.8 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 70.3 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 390 mm |
| Wheelbase | 960 mm |
| Bottom Bracket Drop | 58 mm |
| Standover Height | 344 mm |
| Wheels | 24" |
