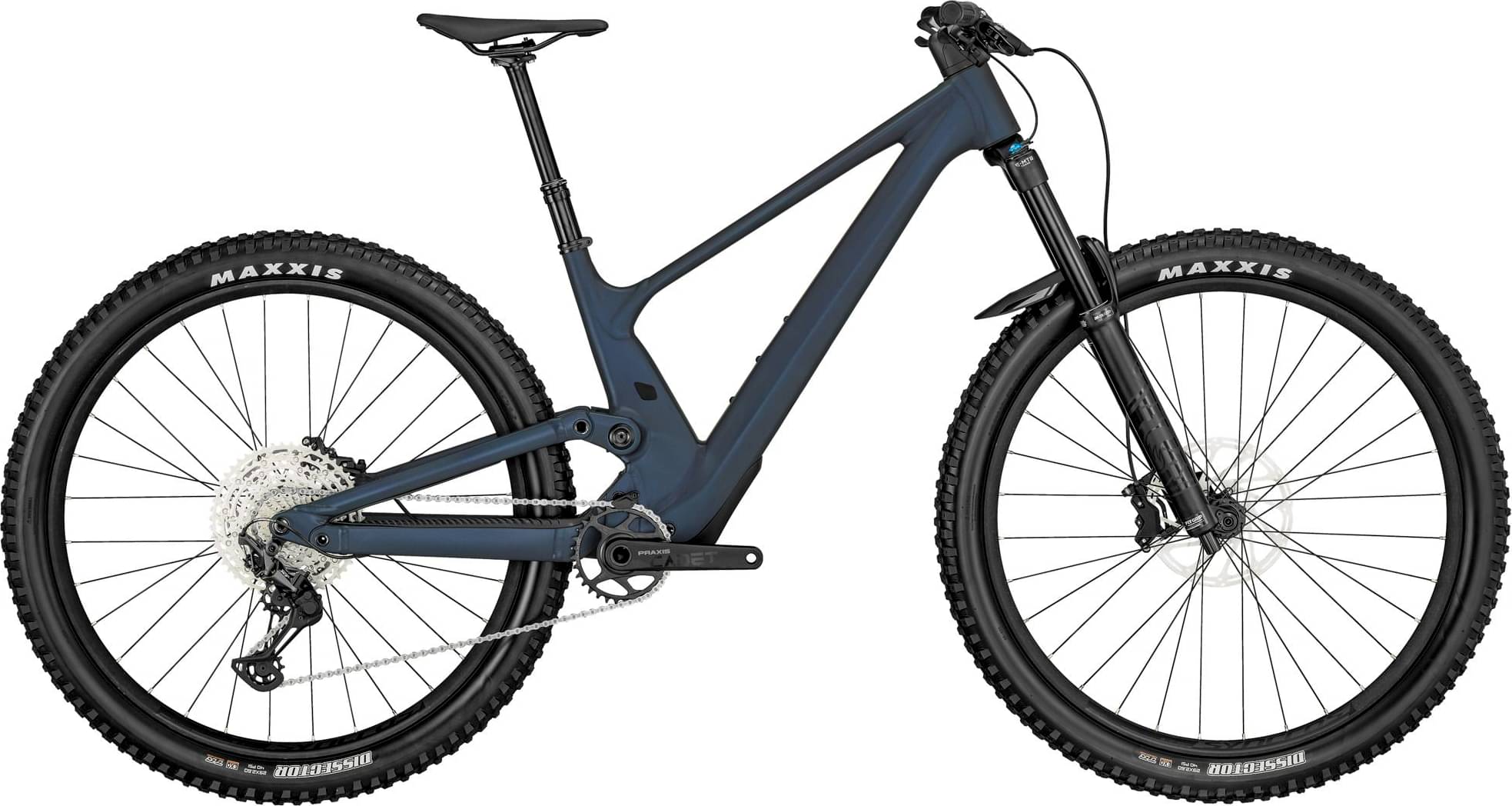

Scott Genius 930 2024
2024 Mountain
Estimate price |
4,587$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genius Alloy 6061; Integrated Suspension Technology; Virtual 4 Link kinematic / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 36 Float Rhythm Air Grip; 3-Modes / 15x110mm QR axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 160mm travel
Rear Shock
FOX Float Custom EVOL Performace Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 150mm / T185X55mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed
Shift Levers
Shimano Deore SL-M6100-R / Rapidfire Plus
Cassette
Shimano Deore CS-M6100-12 / 10-51 T
Crank
Praxis Cadet M24HD; 55mm CL / 32T
Bottom Bracket
Praxis M24 BB92 / shell 41x92mm
Chain
Shimano Deore CN-M6100
Chain Guide
SCOTT custom
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula CL-148M / 12x148mm
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint; Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Maxxis Dissector / 60TPI Foldable; Tubeless Ready / EXO, Rear: Maxxis Dissector / 60TPI Foldable; Tubeless Ready / EXO
Brakes
Brakes
SRAM DB8 4 Piston Disc
Cockpit
Stem
Syncros AM 2.0; Syncros Cable Integration System; 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Hixon 2.0 Alloy 6061 D.B.; 12mm Rise / back sweep 8° / 780mm; Syncros Endurance lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino 2.5 Regular
Seatpost
Syncros Duncan Dropper Post 2.5; 31.6mm / S size 125mm / M size 150mm / L & XLsize 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.361 mm | 1.328 mm | 1.29 mm |
| Bottom Bracket Height | 342.5 mm | 342.5 mm | 342.5 mm | 342.5 mm |
| Front Center | 744 mm | 778 mm | 811 mm | 843 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 125.8 mm | 125.8 mm | 125.8 mm | 125.8 mm |
| Stack | 617 mm | 626.1 mm | 644.2 mm | 657.8 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 570.1 mm | 602.2 mm | 631.3 mm | 659.3 mm |
| Seat Tube Angle | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 135 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1182 mm | 1216 mm | 1249 mm | 1281 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 728 mm | 738 mm | 753 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
