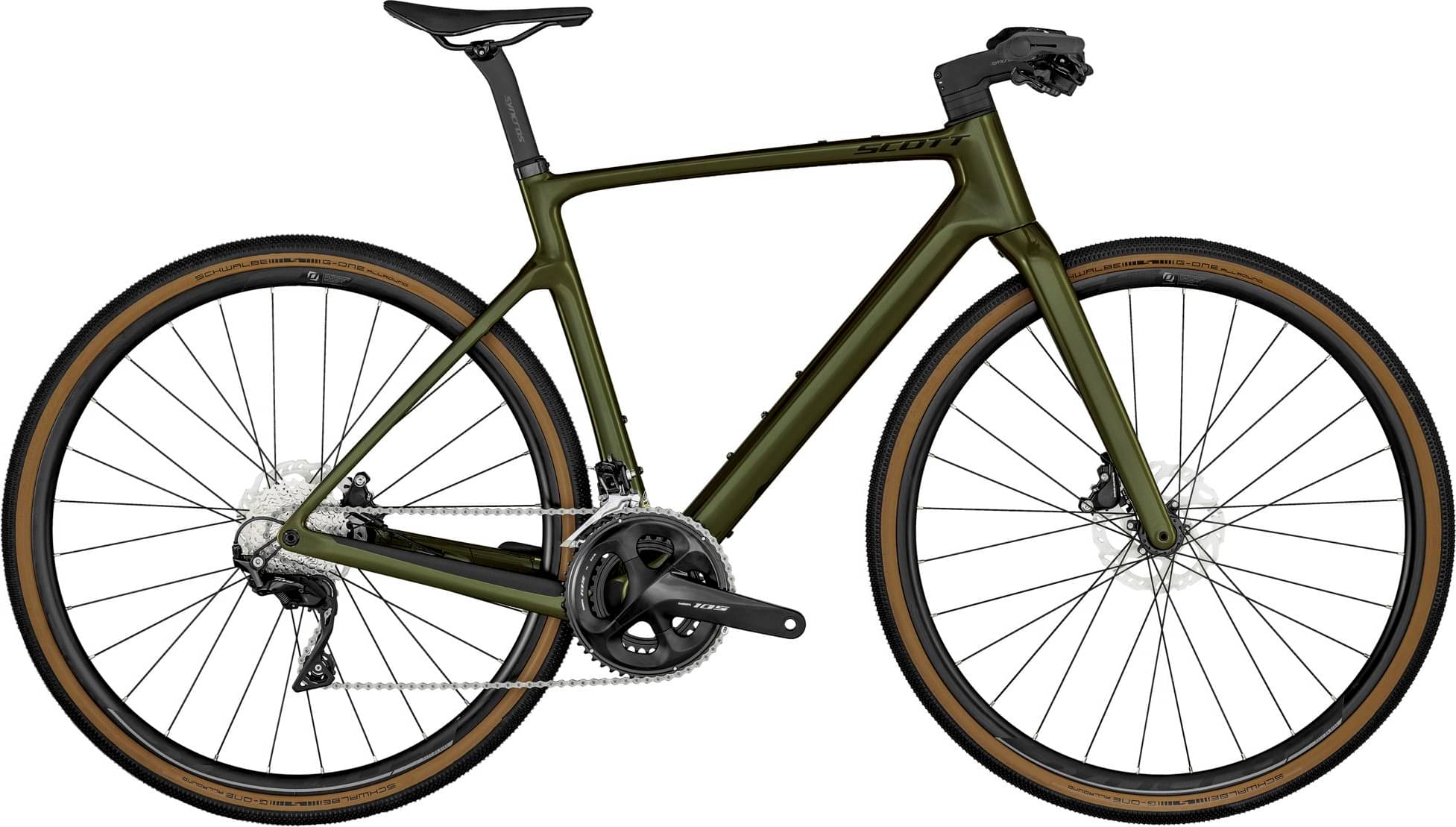

Scott Metrix 10 2024
2024 Urban
Estimate price |
2,522$
Weight | 9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Metrix Disc HMF Carbon; Endurance geometry / Replaceable Derailleur Hanger; Syncros fender kit ready
Suspension Fork
Metrix HMF Disc; 1 1/4"-1 1/2" Excentric Carbon steerer
Drivetrain
Rear Derailleur
Shimano 105 RD-R7000-GS Black; 22 Speed
Front Derailleur
Shimano 105 FD-R7000 Black
Shift Levers
Shimano SL-RS700
Cassette
Shimano CS-R7000; 11 Speed 11-32 T
Crank
PRAXIS ALBA M24; 50x34 T Black
Bottom Bracket
PRAXIS 86-0301 M24 BB86
Chain
KMC X11
Wheels
Front Hub
Formula Team II CL Disc 28 H
Rear Hub
Formula Team II CL Disc 28 H
Rims
Syncros Race 24 Disc; 28 Front / 28 Rear
Spokes
Black 2mm
Tires
Front: Schwalbe G-One Allround; 700x40C, Rear: Schwalbe G-One Allround; 700x40C
Brakes
Brakes
Shimano BR-RS405 Hyd.Disc
Brake Levers
Shimano BL-RS600
Cockpit
Stem
Syncros RR2.0; 1 1/4" / four Bolt 31.8mm
Handlebar
Syncros Flat-Bar FL2.0 620mm
Headset
Acros AIF-1134
Seat
Saddle
Syncros Tofino T-Channel 2.0
Seatpost
Syncros Duncan 1.0 D-Shape
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.439 mm | 1.46 mm | 1.481 mm | 1.501 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 595 mm | 608 mm | 614 mm | 634 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 67 mm | 67 mm | 67 mm |
| Stack | 519 mm | 544.4 mm | 565.3 mm | 589.9 mm | 609.7 mm |
| Reach | 374.1 mm | 378.4 mm | 387.1 mm | 398.2 mm | 406.1 mm |
| Top Tube Length | 518 mm | 534.5 mm | 554.5 mm | 578.5 mm | 592.5 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 477 mm | 507 mm | 528 mm | 546 mm | 566 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 122 mm | 140 mm | 166 mm | 187 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1009 mm | 1022 mm | 1029 mm | 1048 mm | 1063 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 759 mm | 786 mm | 807 mm | 828 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
