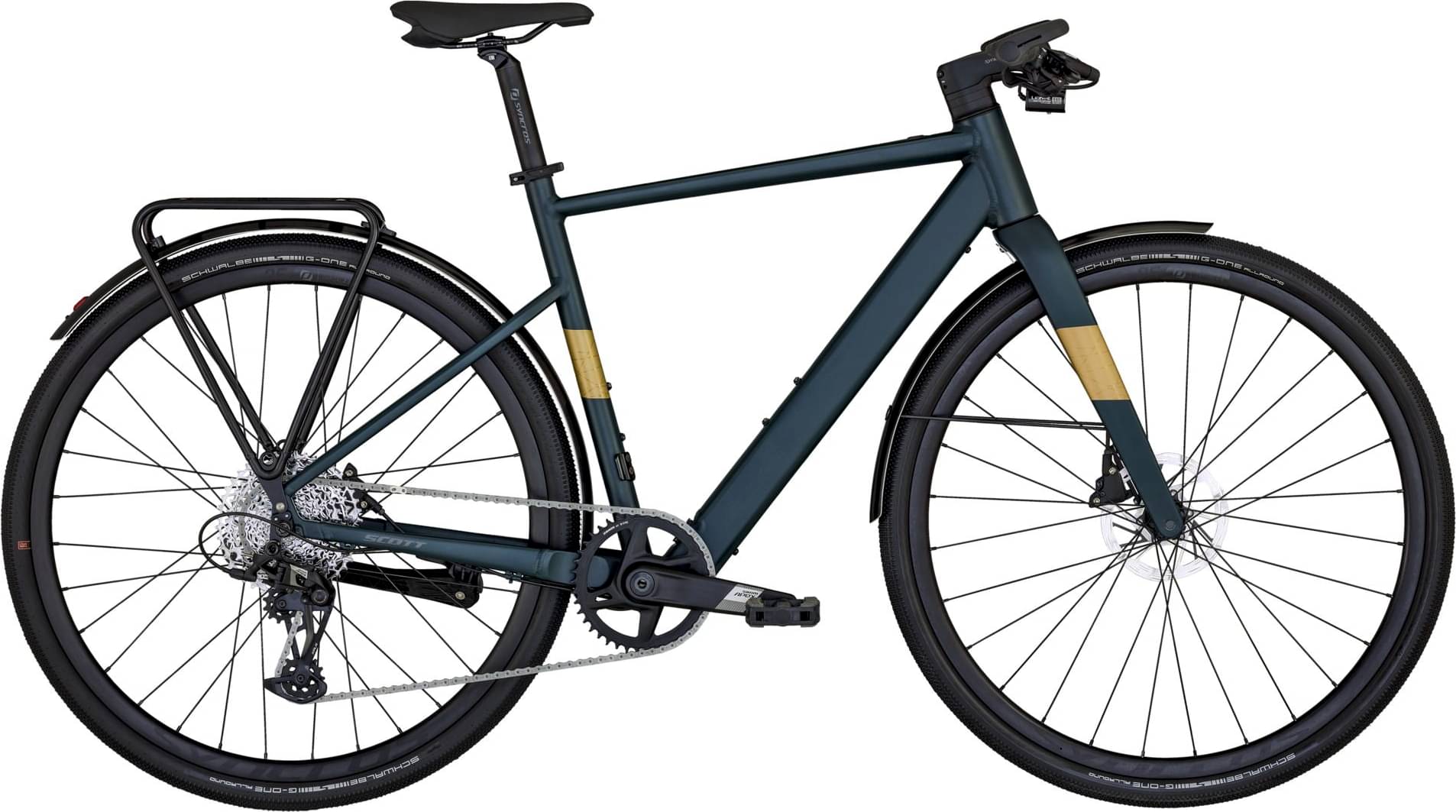

Scott Metrix eRIDE 2025
2025 E-bike
Estimate price |
4,334$
Weight | 15.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex XPLR, SX Eagle -
Suspension Rigid -
Motor MAHLE 40Nm hub-drive -
Battery Mahle Internal 36V-250Wh -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Metrix eRIDE Disc / D.Butted 6061 Alloy; SCOTT Gravel geometry / Replaceable Derailleur Hanger; Semi-internal cable routing; Syncros fender kit ready
Suspension Fork
Carbon Metrix eRIDE HMX Flatmount Disc; 1 1/4"-1 1/2" Excentric Carbon steerer
Drivetrain
Rear Derailleur
SRAM APEX XPLR; 12 Speed Mechanical Shift System
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM XPLR PG1231; 11-44
Crank
SRAM APEX Wide; 1x12speed; DUB
Bottom Bracket
SRAM BB; DUB; BSA
Chain
SRAM APEX 12speed
Wheels
Rims
Syncros Capital 2.0 Disc MahleX35; 28 Front 12x100mmTA /32 Rear 12x135mmBolt
Tires
Front: Schwalbe G-One Allround; 700x40C, Rear: Schwalbe G-One Allround; 700x40C
Brakes
Brakes
SRAM DB S300; Flatmount
Cockpit
Stem
Syncros RR2.0; 1 1/4" / four Bolt 31.8mm
Handlebar
Syncros Flat-Bar FL2.0 620mm
Headset
Acros AIF-1133
Seat
Saddle
Syncros Capilano Sport Foam
Seatpost
Syncros 3.0 31.6/350mm
Motor & Battery
Motor
Mahle X35+ Motor Hub drive 40Nm max Torque / EU: 25kmh / US: 20mph
Battery
Mahle Internal 36V-250Wh
Charger
Mahle X35+ Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.37 mm | 1.387 mm | 1.413 mm | 1.43 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 628 mm | 634 mm | 638 mm | 651 mm | 665 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 75.6 mm | 69 mm | 69 mm | 69 mm |
| Stack | 541.2 mm | 550.6 mm | 568.7 mm | 587.6 mm | 606.5 mm |
| Reach | 399 mm | 402 mm | 410 mm | 416 mm | 424 mm |
| Top Tube Length | 544 mm | 549.5 mm | 562.4 mm | 573.4 mm | 586.5 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 495 mm | 500 mm | 520 mm | 540 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1053 mm | 1059 mm | 1063 mm | 1076 mm | 1090 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 764 mm | 771 mm | 790 mm | 806 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
