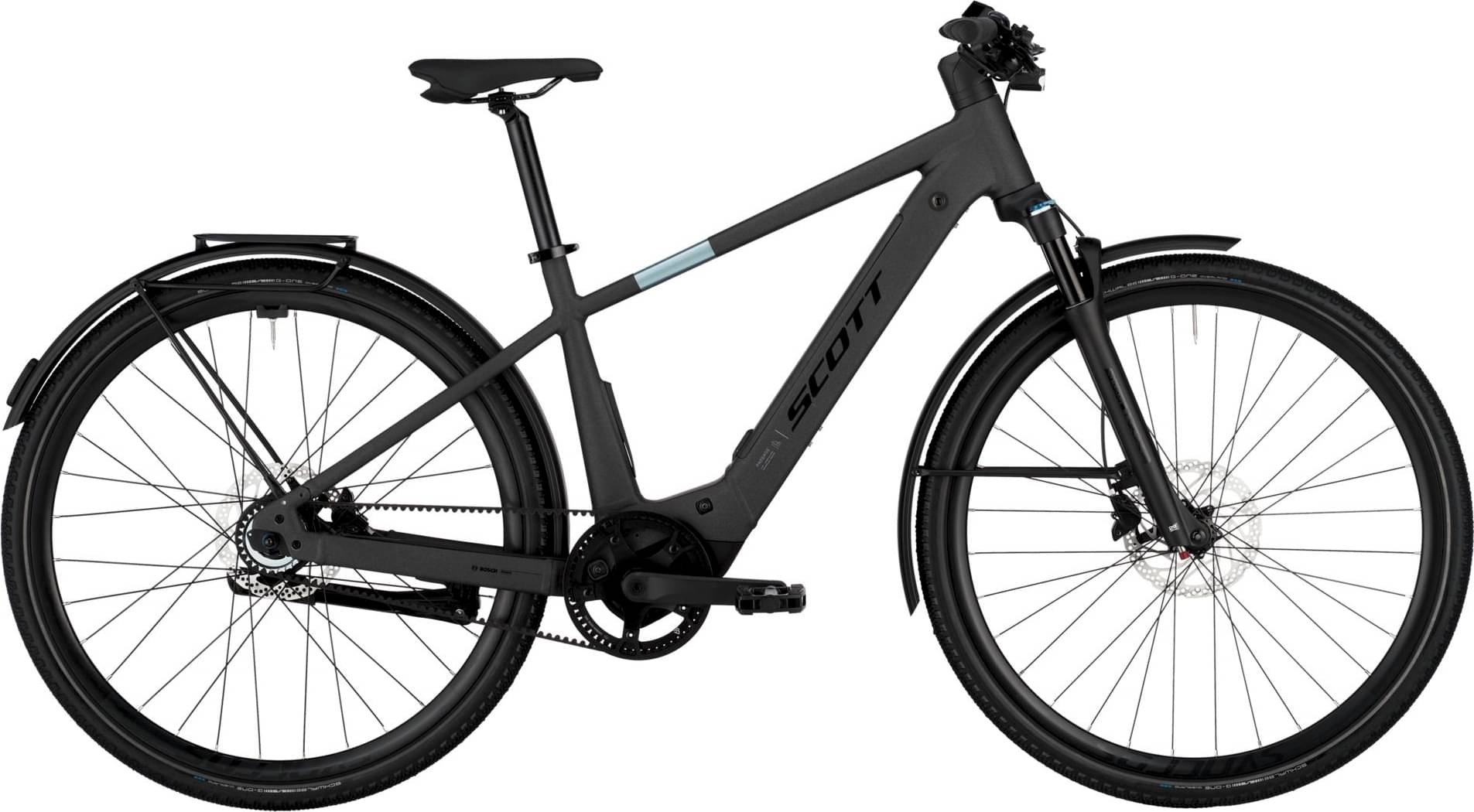

Scott Passage 10 Belt 2025
2025 E-bike
Estimate price |
4,536$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX
-
Groupset Alfine -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Compact Tube 400Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing; Top extraction battery
Suspension Fork
SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel
Drivetrain
Shift Levers
Shimano Alfine SL-S503 Rapid Fire Plus
Cassette
Gates CDC 26T
Crank
FSA CK-220 170mm
Chain
Gates CDC 125T
Pedals
Marwi SP-827
Wheels
Front Hub
Shimano HBTC50015B CL / 15x100mm
Rear Hub
Shimano Nexus 8 Speed
Rims
Syncros X15 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe G-One Overland 365 Performance; 700x45C, Rear: Schwalbe G-One Overland 365 Performance; 700x45C
Brakes
Brakes
Shimano BR-MT200 Disc
Cockpit
Handlebar
Syncros Welded Alloy Combo 680mm / Back Sweep 9° / Up Sweep 8° / 70mm / with front Light mount
Headset
Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance SX; EU: 25kmh
Battery
Compact Tube 400Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.394 mm | 1.36 mm | 1.356 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 691 mm | 712 mm | 734 mm | 756 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 96.6 mm | 96.6 mm | 96.6 mm | 96.6 mm |
| Stack | 599.6 mm | 608.9 mm | 618.2 mm | 636.7 mm |
| Reach | 419.3 mm | 436.8 mm | 454.4 mm | 469.4 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1160 mm | 1182 mm | 1203 mm | 1225 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 740 mm | 755 mm | 787 mm | 824 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
