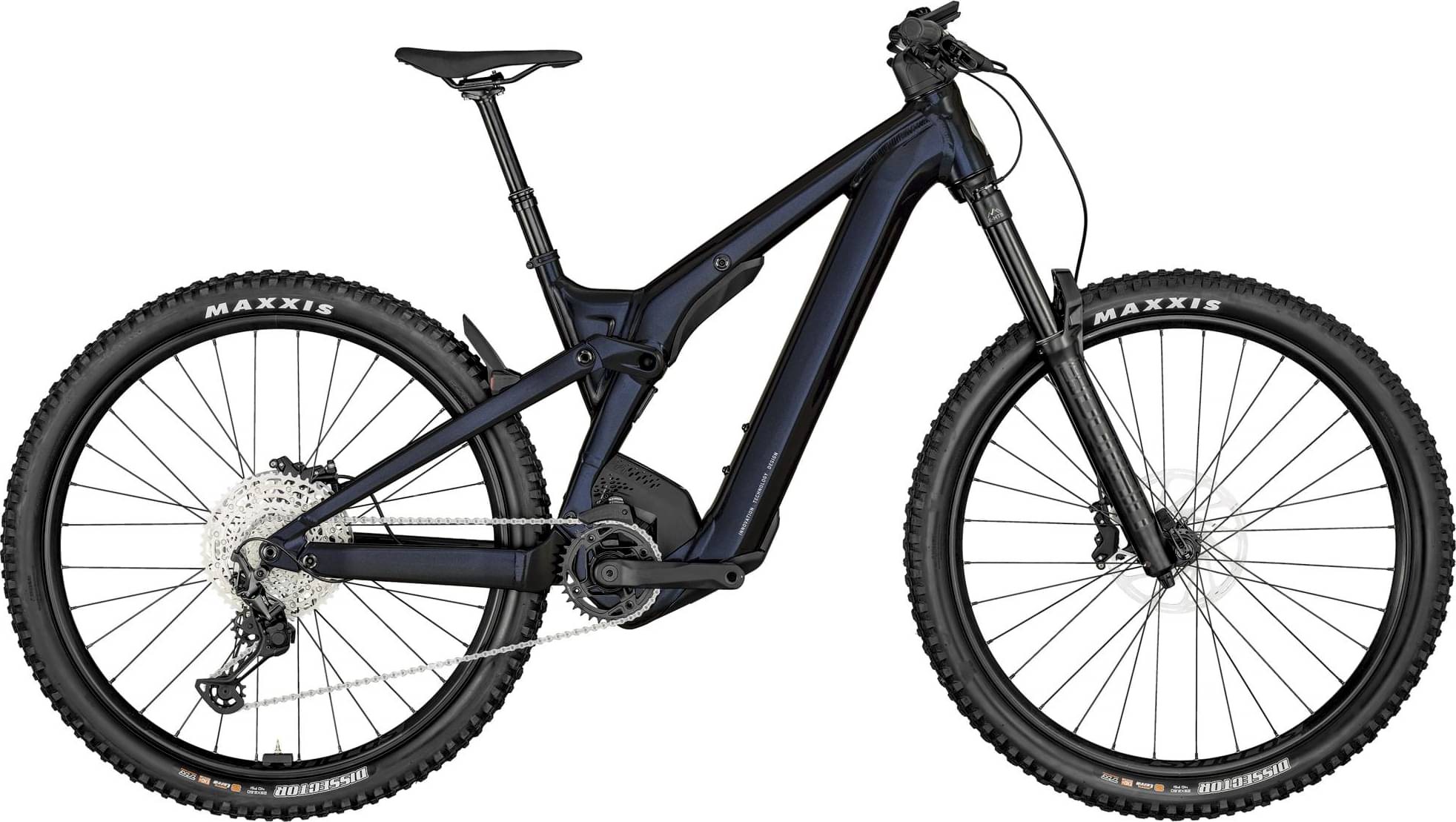

Scott Patron eRIDE 920 blue 2024
2024 E-bike
Estimate price |
6,155$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy Frame & Link; Virtual 4 link kinematic VLK; 29x2.6 / Boost 148x12mm UDH; 160mm travel / Bosch SmartSystem / Integr. removable Battery; 1.8" Headtube; Central Kickstand Mount; Integr. Cable
Suspension Fork
RockShox Domain Air; 15x110mm QR axle / 1.8" Tapered Steerer; Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
Rear Shock
FOX Float EVOL eRIDE Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 160mm / 205x60mm
Drivetrain
Rear Derailleur
Shimano XT / 12 Speed
Shift Levers
Shimano SL-M6100
Cassette
Shimano CS-M6100 / 10-51T
Crank
FSA CK-745 165mm / 34T
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Chain Guide
e*thirteen / e*spec Slider
Wheels
Front Hub
Shimano HB-MT410-B CL / 15x110mm
Rear Hub
Shimano FH-MT410-B CL / Boost 12x148mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Tires
Front: Maxxis Dissector 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra, Rear: Maxxis Dissector 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra
Brakes
Brakes
SRAM DB8 4 Piston Disc
Cockpit
Stem
Syncros AM2.0 / 6061 Alloy; 31.8mm / 4° / 1 1/8"
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B.; 12mm rise / 9° / 780mm; Syncros Endurance lock-on grips
Headset
Acros / 1.8"; ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Tofino 2.5 Regular
Seatpost
Syncros Duncan Dropper Post 2.5; Size S 125mm / Size M 150mm / Size L 170mm Size XL 200mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.441 mm | 1.375 mm | 1.318 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 769 mm | 779 mm | 811 mm | 843 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 133.3 mm | 129.5 mm | 129.5 mm | 129.5 mm |
| Stack | 634.8 mm | 642.2 mm | 651.3 mm | 660.4 mm |
| Reach | 432.7 mm | 445.8 mm | 473.6 mm | 501.2 mm |
| Top Tube Length | 579.4 mm | 595 mm | 625.6 mm | 656.4 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 410.5 mm | 440.5 mm | 470.4 mm | 500.4 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1221 mm | 1231 mm | 1263 mm | 1295 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 766 mm | 766 mm | 766 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
