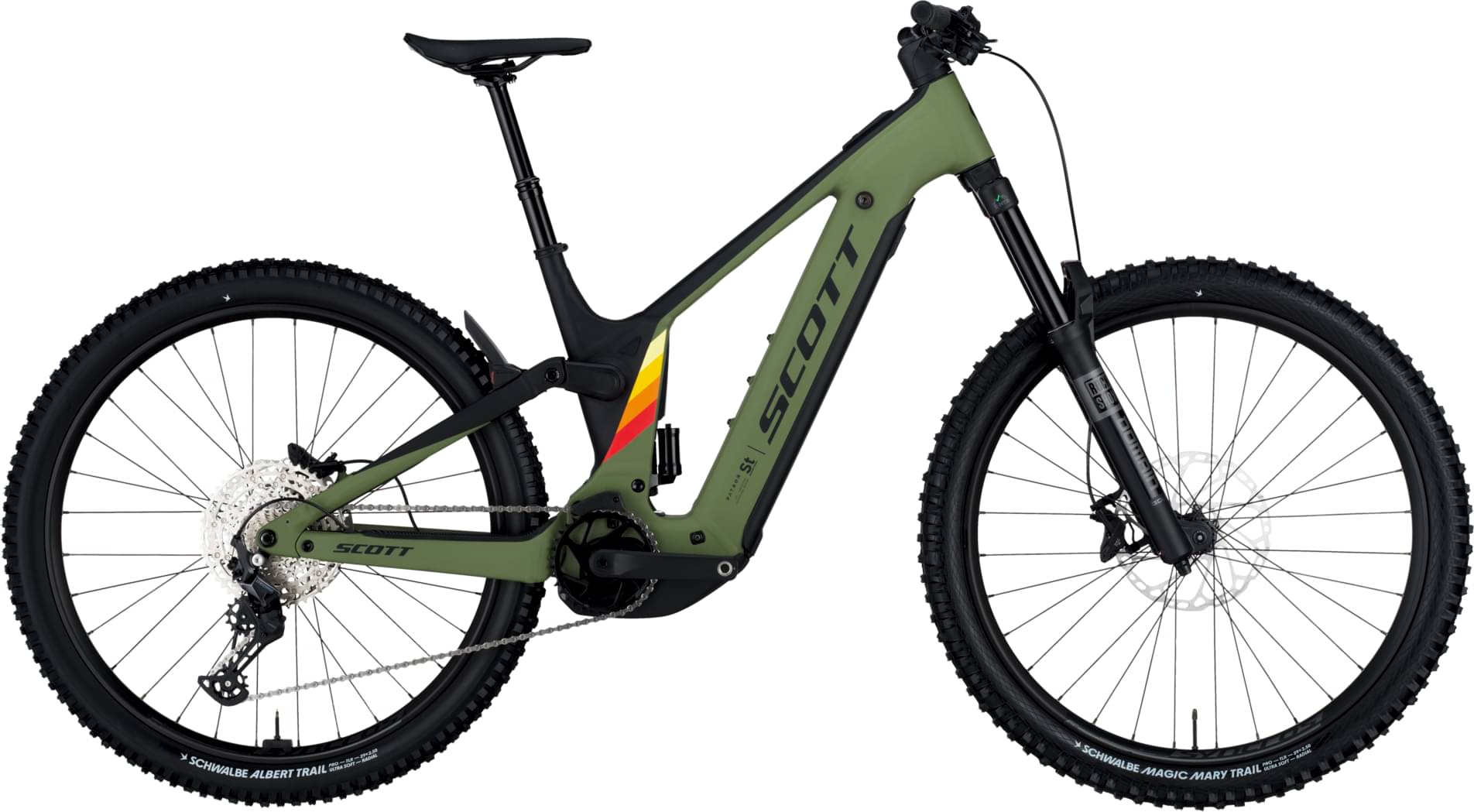

Scott Patron ST 910 2025
2025 E-bike
Estimate price |
7,561$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 800Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy Frame; Integrated Suspension Technology; Virtual 4 Link kinematic / Adjustable head angle; Syncros Cable Integration System; Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline; Bosch PowerMore Ready
Suspension Fork
RockShox Domain R Air / E-Bike / Reb Adj. / QR Axle 15x110mm axle; 44mm offset / tapered steerer / 170mm travel
Rear Shock
RockShox SuperDeluxe Piggy Back Trunnion / Reb Adj. / Large Air volume / T185X55mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 SGS; Shadow Plus / 12 Speed
Shift Levers
Shimano Deore SL-M6100-IR / Rapidfire Plus
Cassette
Shimano CS-M6100 / 10-51
Crank
FSA Alloy
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Chain Guide
e*thirteen / e*spec Slider
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula ECT-148M / Boost 148x12mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Tires
Front: Schwalbe Magic Mary 29x2.5"; SuperGravity / PSF / Ultra Soft; Tubeless ready; 120TPI Foldable Bead, Rear: Schwalbe Explore 29x2.5"; SuperGravity / PSF / Soft; Tubeless ready; 120TPI Foldable Bead
Brakes
Brakes
Shimano Deore M6120 4-Piston Disc
Cockpit
Stem
Syncros AM 2.0; Syncros Cable Integration System; 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Hixon 2.0 Alloy 6061; Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm; Syncros Endurance lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino-E 2.5 Regular
Seatpost
Syncros Duncan Dropper Post 2.5 / 31.6mm; S size 125mm / M size 150mm / L size 170mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 800Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.461 mm | 1.402 mm | 1.338 mm |
| Bottom Bracket Height | 348.6 mm | 348.6 mm | 348.6 mm | 348.5 mm |
| Front Center | 770 mm | 792 mm | 822 mm | 855 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 127.9 mm | 127.9 mm | 127.9 mm | 127.9 mm |
| Stack | 650.5 mm | 655 mm | 664.2 mm | 673.3 mm |
| Reach | 428.3 mm | 448.3 mm | 473.9 mm | 503.4 mm |
| Top Tube Length | 582.4 mm | 607.9 mm | 629.7 mm | 660.2 mm |
| Seat Tube Angle | 76.4 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 500 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1222 mm | 1244 mm | 1274 mm | 1308 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 719 mm | 719 mm | 729 mm | 732 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
