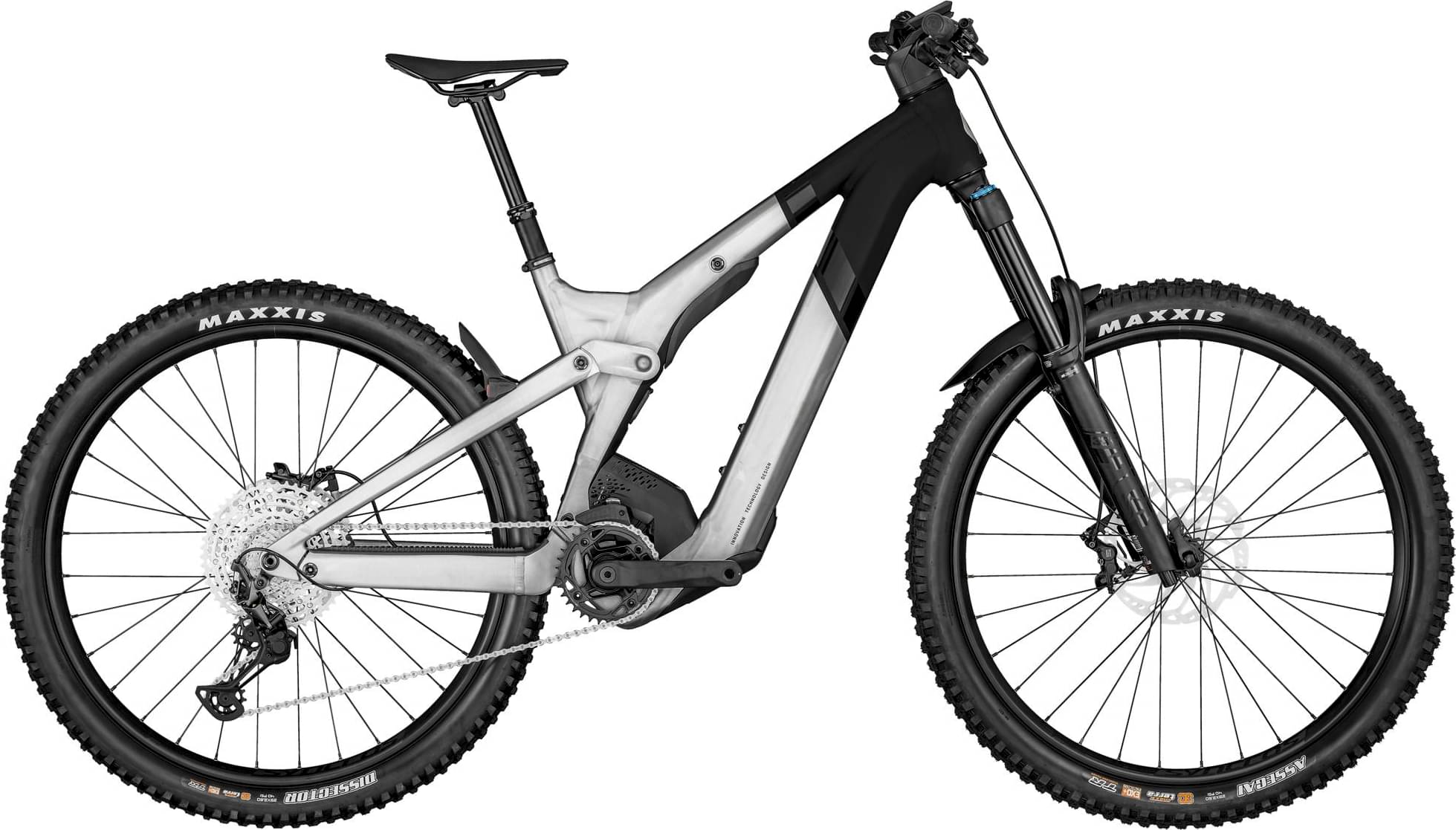

Scott Patron ST eRIDE 910 2024
2024 E-bike
Estimate price |
6,999$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy Frame & Link; Virtual 4 link kinematic VLK; 29x2.6 / Boost 148x12mm UDH; 160mm travel / Bosch SmartSystem / Integr. removable Battery; 1.8" Headtube; Central Kickstand Mount; Integr. Cable
Suspension Fork
FOX 38 FIT Perf Grip Air; Adjustable Rebound / QR Axle 15x110mm; 44mm offset / tapered steerer; 170mm travel
Rear Shock
FOX Float EVOL eRIDE Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 160mm / 205x60mm
Drivetrain
Rear Derailleur
Shimano XT / 12 Speed
Shift Levers
Shimano SL-M6100
Cassette
Shimano CS-M6100 / 10-51T
Crank
FSA CK-745 165mm / 34T
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100
Chain Guide
e*thirteen / e*spec Slider
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula ECT-148M / Boost 148x12mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Tires
Front: Maxxis Assegai 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra, Rear: Maxxis Dissector 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra
Brakes
Brakes
Shimano SLX / BR-M7120 4 Piston
Cockpit
Stem
Syncros AM2.0 / 6061 Alloy; 31.8mm / 4° / 1 1/8"
Handlebar
Syncros Hixon 2.0 / Alloy 6061D.B.; 12mm rise / 9° / 780mm; Syncros Endurance lock-on grips
Headset
Acros / 1.8"; ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Tofino 2.0 Regular
Seatpost
FOX Transfer Dropper Post; 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.477 mm | 1.408 mm | 1.348 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 778 mm | 788 mm | 820 mm | 851 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 135.4 mm | 131.6 mm | 131.4 mm | 131.3 mm |
| Stack | 639.7 mm | 647.3 mm | 656.5 mm | 665.8 mm |
| Reach | 425.4 mm | 438.4 mm | 466.3 mm | 493.9 mm |
| Top Tube Length | 579.4 mm | 595 mm | 625.6 mm | 656.4 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 470 mm | 470 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1230 mm | 1240 mm | 1272 mm | 1304 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 772 mm | 772 mm | 772 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
