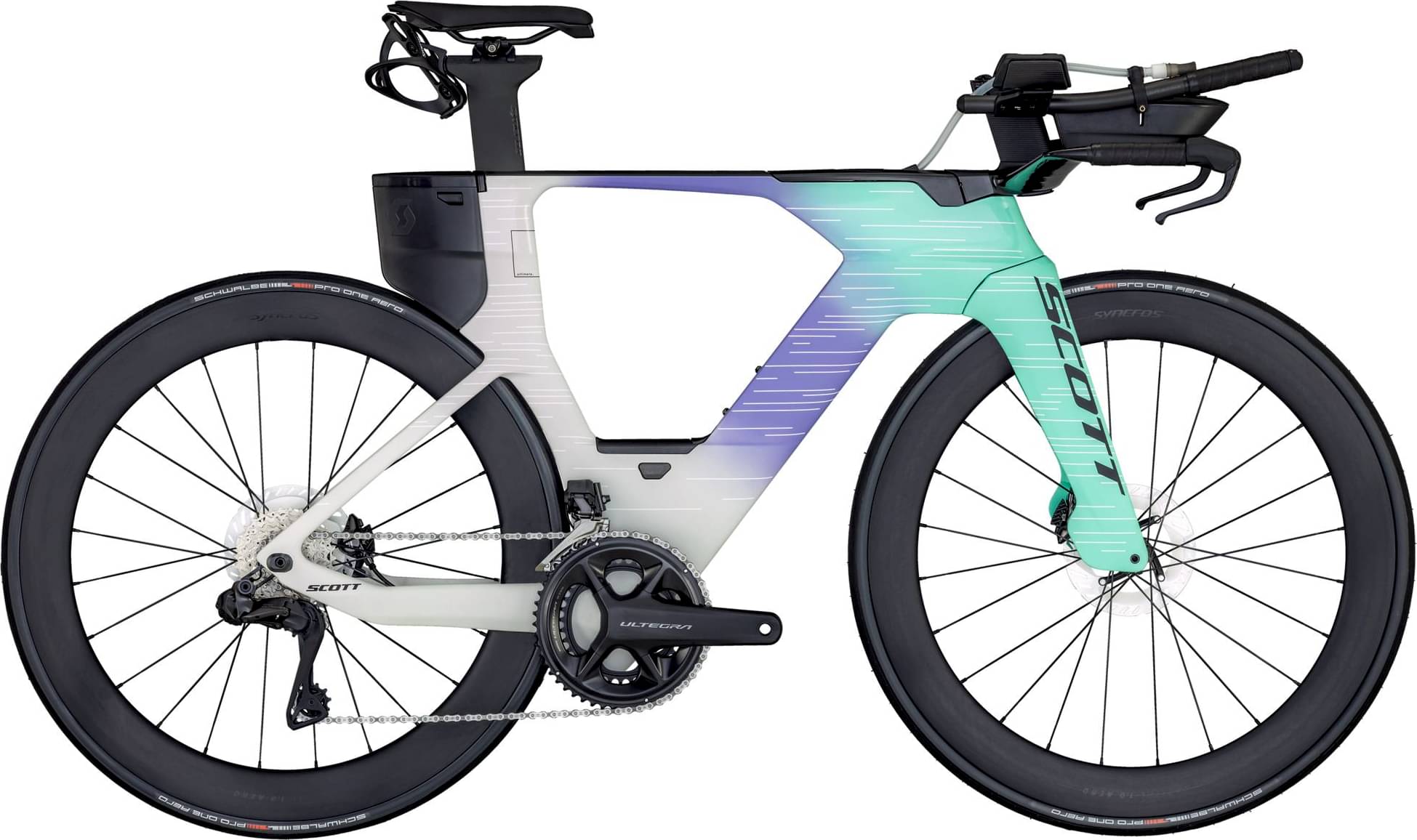

Scott Plasma RC Pro 2024
2024 Road
Estimate price |
9,999$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Plasma 6 Disc / HMX; TRI Geometry / Plasma HMX seatpost / Replaceable Derailleur Hanger
Suspension Fork
Plasma 6 Disc; 1 1/4"- 1 1/2" Carbon / integrated
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 RD-R8150; 24 Speed Electronic Shift System
Front Derailleur
Shimano Ultegra Di2 FD-R8150; Electronic Shift System
Shift Levers
Shimano Di2 SW-R9160; Electronic Shift System
Cassette
Shimano Ultegra CS-R8100-12; 11-30
Crank
Shimano Ultegra FC-R8100; 52/36 T
Bottom Bracket
Shimano SM-BB71-41B
Chain
Shimano CN-M8100-12
Wheels
Rims
Syncros Capital 1.0 Aero 60mm; 24 Front / 24 Rear; Syncros SL Axle / Removable Lever with Tool
Tires
Front: Schwalbe PRO ONE Aero; TL-Easy; Fold; 700x28C, Rear: Schwalbe PRO ONE Aero; TL-Easy; Fold; 700x28C
Brakes
Brakes
Shimano BR-R9170 Hyd.Disc
Brake Levers
Shimano Di2 ST-R9180; Electronic Shift System
Cockpit
Handlebar
Syncros Creston iC TRI; 400mm; Syncros E1 Carbon extension
Headset
Syncros Integrated; 1 1/4"- 1 1/2" drop-in headset
Seat
Saddle
Syncros Belcarra 1.5 TRI
Seatpost
Syncros Plasma 6 HMX with Ritchey WCS clamp; adjustable head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.325 mm | 1.281 mm | 1.254 mm | 1.219 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 564 mm | 584 mm | 613 mm | 644 mm | 674 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 520 mm | 520 mm | 535 mm | 555 mm | 570 mm |
| Reach | 372.5 mm | 392.5 mm | 417.5 mm | 442.5 mm | 467.5 mm |
| Top Tube Length | 509.3 mm | 529.3 mm | 555.8 mm | 582.9 mm | 609.5 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 503 mm | 503 mm | 552.4 mm | 572.3 mm | 587.5 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 71.5 mm | 71.5 mm | 87 mm | 108 mm | 124 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 962 mm | 982 mm | 1011 mm | 1043 mm | 1072 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 746 mm | 746 mm | 795 mm | 815 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
