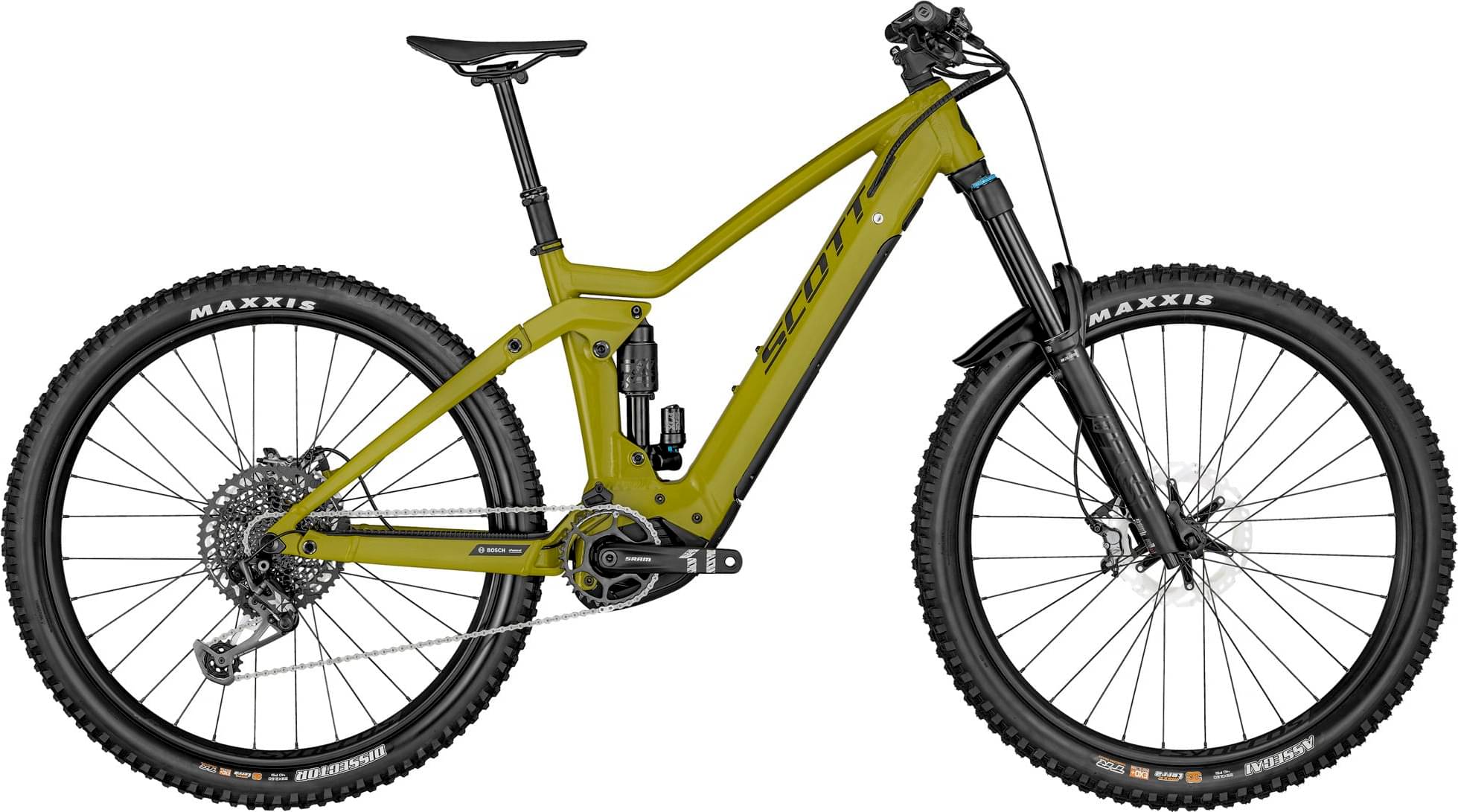

Scott Ransom eRIDE 910 2025
2025 E-bike
Estimate price |
6,979$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Performance Elite Float 38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy Frame / Virtual 4 link kinematic VLK; 27.5" and 29" compatible / geo adj. / Boost 148x12mm; 180mm travel / Bosch Gen4 / Integr. removable Battery; Tapered Headtube E2, Central Kickstand Mount
Suspension Fork
FOX 38 Performance Elite / Air / eMTB+; FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle; tapered steerer / Reb. Adj. / 180mm travel
Rear Shock
FOX Float X2 Performance / Air; LSC, LSR w/2-Pos. lever
Drivetrain
Rear Derailleur
SRAM X01 Eagle / 12 Speed
Shift Levers
SRAM NX Eagle Single Click
Cassette
SRAM XG1275 / 10-52 T
Crank
SRAM X1 1000 / 165mm / 34T
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle
Chain Guide
SCOTT Custom
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula ECT-1481 / Boost 148x12mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Tires
Front: Maxxis Assegai 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra, Rear: Maxxis Dissector 29x2.6"; 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra
Brakes
Brakes
Shimano XT / BR-M8120 4 Piston
Cockpit
Stem
Syncros XM1.5 / Alloy 6061; integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"
Handlebar
Syncros Hixon 1.5 Rise / Alloy 2014D.B.; 20mm rise / 8° / 800mm; Syncros Pro lock-on grips
Headset
Acros Blocklock / Tapered 1.5"-1 1/8"; OD 52/62mm / ID 44/56mm
Seat
Saddle
Syncros Tofino 1.5 Regular; Titanium rails
Seatpost
FOX Transfer Dropper Post; 31.6mm / S size 125mm / M size 150mm / size 175mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 625Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD High | LG Low | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.515 mm | 1.465 mm | 1.43 mm | 1.381 mm | 1.348 mm | 1.298 mm | 1.268 mm |
| Bottom Bracket Height | 353.5 mm | 348.5 mm | 353.5 mm | 348.5 mm | 353.5 mm | 348.5 mm | 353.5 mm | 348.5 mm |
| Front Center | 766 mm | 766 mm | 791 mm | 791 mm | 823 mm | 823 mm | 853 mm | 853 mm |
| Rake | 42 mm | 41 mm | 42 mm | 41 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 136.4 mm | 125.4 mm | 136.4 mm | 125.4 mm | 136.4 mm | 125.4 mm | 136.4 mm | 125.4 mm |
| Stack | 644.4 mm | 639.7 mm | 644.4 mm | 639.7 mm | 649 mm | 643.5 mm | 649 mm | 643.5 mm |
| Reach | 415 mm | 422.3 mm | 440 mm | 447.3 mm | 470 mm | 477.4 mm | 500 mm | 507.3 mm |
| Top Tube Length | 568 mm | 569.5 mm | 595.5 mm | 597 mm | 628.8 mm | 630.5 mm | 660.7 mm | 662.5 mm |
| Seat Tube Angle | 76.5 ° | 77.2 ° | 76.3 ° | 77 ° | 76.1 ° | 76.8 ° | 75.9 ° | 76.6 ° |
| Seat Tube Length | 420 mm | 420 mm | 440 mm | 440 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 64 ° | 64.6 ° | 64 ° | 64.6 ° | 64 ° | 64.6 ° | 64 ° | 64.6 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 465 mm | 462 mm | 465 mm | 462 mm | 465 mm | 462 mm | 465 mm | 462 mm |
| Wheelbase | 1230 mm | 1228 mm | 1255 mm | 1253 mm | 1287 mm | 1285 mm | 1317 mm | 1315 mm |
| Bottom Bracket Drop | 22 mm | 13 mm | 22 mm | 13 mm | 22 mm | 13 mm | 22 mm | 13 mm |
| Standover Height | 762 mm | 753 mm | 766 mm | 758 mm | 790 mm | 780 mm | 800 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
