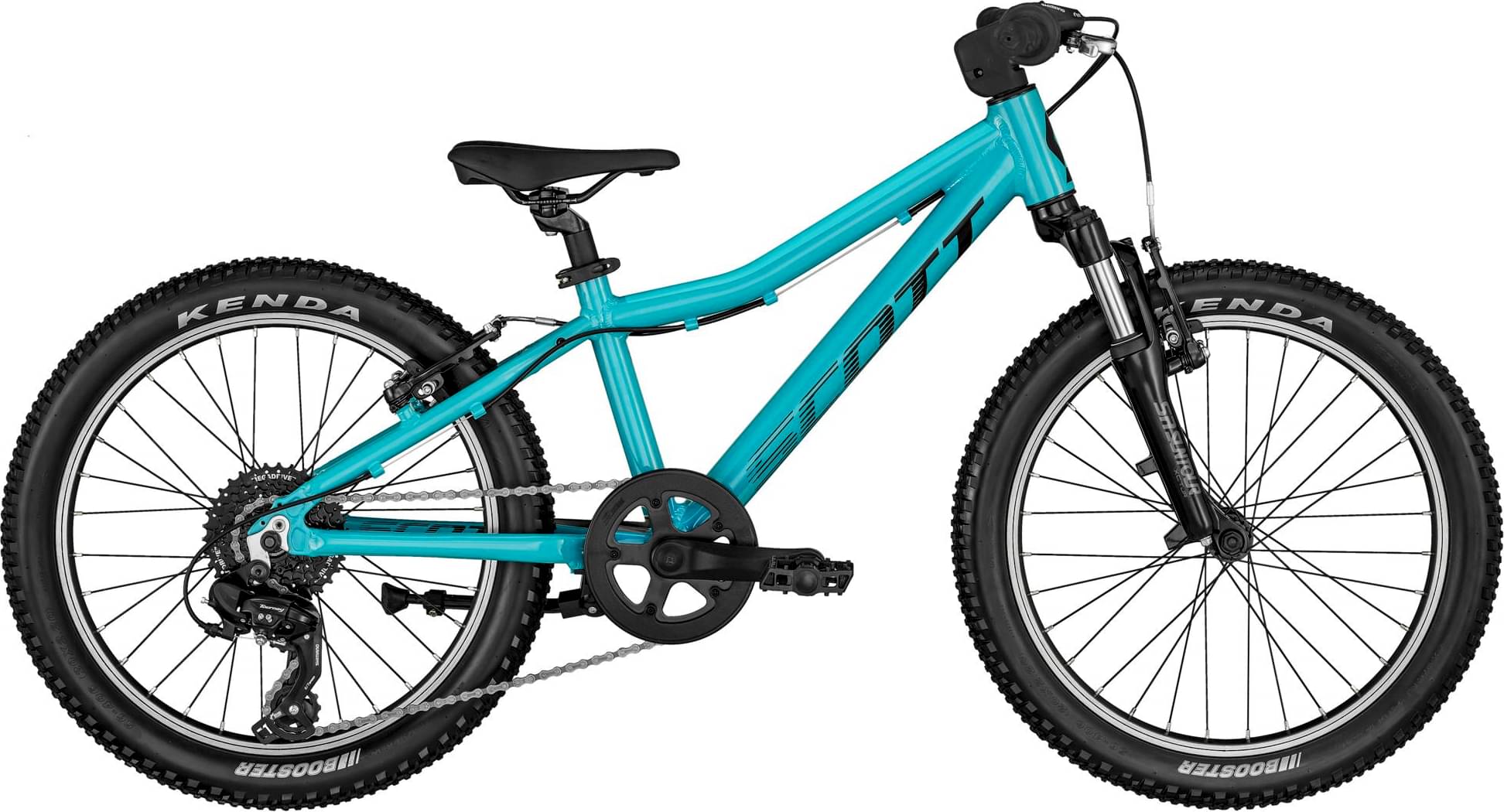

Scott Scale 20 blue (KH) 2024
2024 Youth
Estimate price |
458$
Weight | 10.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale 20 Junior; Alloy 6061 / Semi int. HT; SCOTT dropout / V-Brake
Suspension Fork
SR Suntour XCT-JR 20; 40mm travel; Softer spring setup
Drivetrain
Rear Derailleur
Shimano RD-TY300; 7 Speed
Shift Levers
Shimano SL-RV300-7; Revo Shifter
Cassette
SunRace MFM300; 7 Speed / 13-34T
Crank
Prowheel / Alloy Crank 127mm; 36T / w/CG PVG double cover
Bottom Bracket
Feimin / BB68 / cartridge / square taper
Chain
KMC Z7
Pedals
Kids Pedals / w/Reflector
Wheels
Front Hub
KT-122F / Nutted
Rear Hub
KT-122R / Nutted
Rims
Shining V-6NS
Spokes
15G / UCP / black
Tires
Front: Kenda K1227 Booster / 20x2.2" / 30TPI, Rear: Kenda K1227 Booster / 20x2.2" / 30TPI
Brakes
Brakes
Tektro V-Brakes; Kids' specific
Brake Levers
Tektro Junior JL-510 TS / RS
Cockpit
Stem
Alloy 50mm / +10° / 25.4mm clamp
Handlebar
Kids riser bar alloy; 540mm / 20mm Rise; Syncros Grips Kids100/80
Headset
Feimin FP-H807; 1 1/8" Semi Int.
Seat
Saddle
Syncros Future Pro
Seatpost
Alloy / 26.8mm / 250mm
Fit data
Geometry
