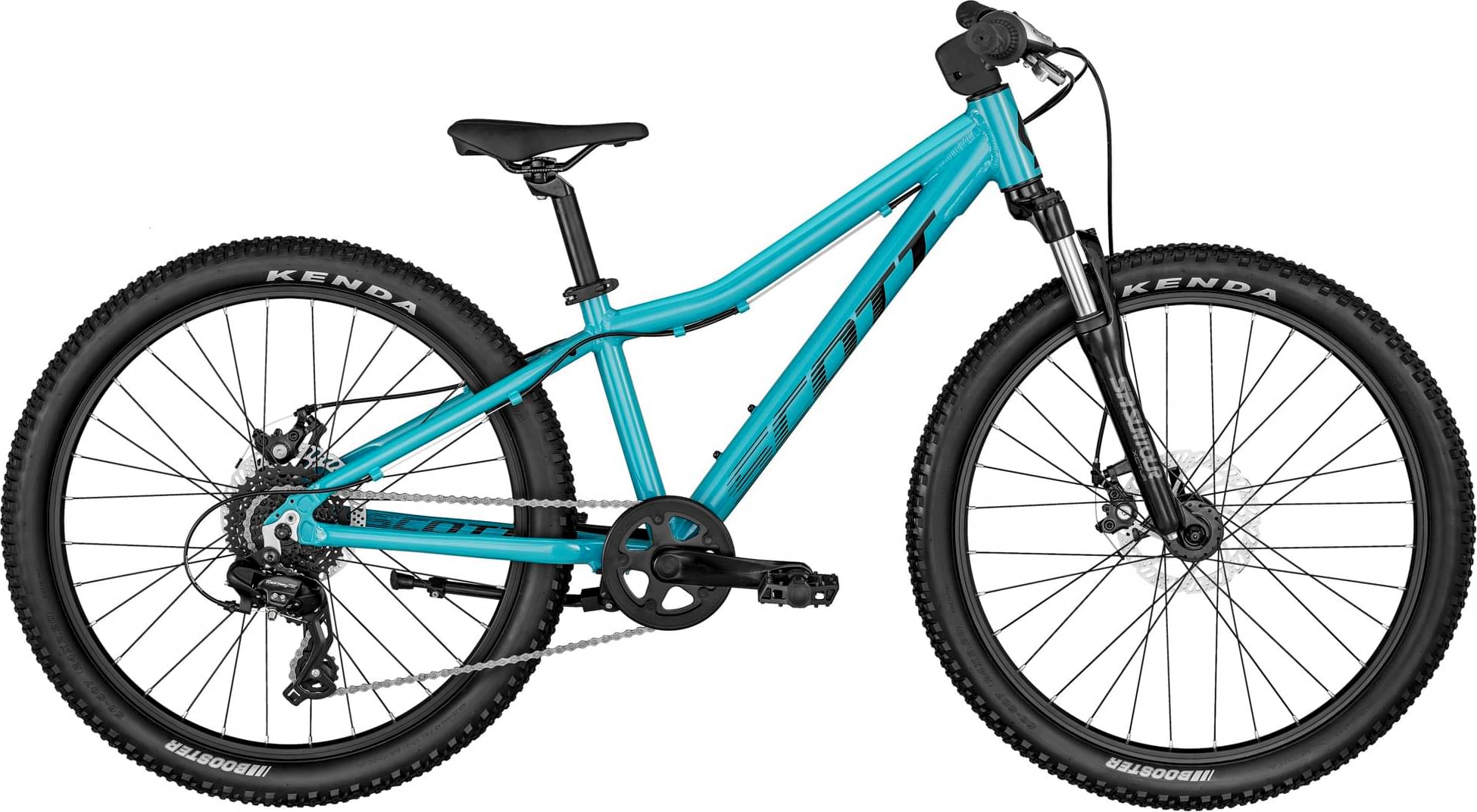

Scott Scale 24 2024
2024 Youth
Estimate price |
581$
Weight | 12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale 24 Disc Junior; Alloy 6061 / Semi int. HT; SCOTT dropout / IS
Suspension Fork
SR Suntour XCT-JR 24 Disc; 50mm travel; Softer spring setup
Drivetrain
Rear Derailleur
Shimano RD-TX800 Tourney; 8 Speed
Shift Levers
Shimano SL-RV400-8R; Revo Shifter
Cassette
SunRace CSM55; 8 Speed / 11-34T
Crank
Prowheel / Alloy Crank 140mm; 32T / w/CG PVG double cover
Bottom Bracket
Feimin / BB68 / cartridge / square taper
Chain
KMC Z8.3
Pedals
Kids Pedals / w/Reflector
Wheels
Front Hub
Formula DC-19-F / QR
Rear Hub
Formula DC-25-8-R / QR
Rims
Alex C-1000 Disc
Spokes
15G / UCP / black
Tires
Front: Kenda K1227 Booster / 24x2.2" / 30TPI, Rear: Kenda K1227 Booster / 24x2.2" / 30TPI
Brakes
Brakes
Tektro SCM-02; Mech. Disc Brake / 160mm rotor
Brake Levers
Tektro Junior / Twist Shifters
Cockpit
Stem
Alloy 50mm / +10° / 25.4mm clamp
Handlebar
Kids riser bar alloy; 560mm / 20mm Rise; Syncros Grips Kids100/80
Headset
Feimin FP-H807; 1 1/8" Semi Int.
Seat
Saddle
Syncros Future Pro
Seatpost
Alloy / 26.8mm / 300mm
Fit data
Geometry
