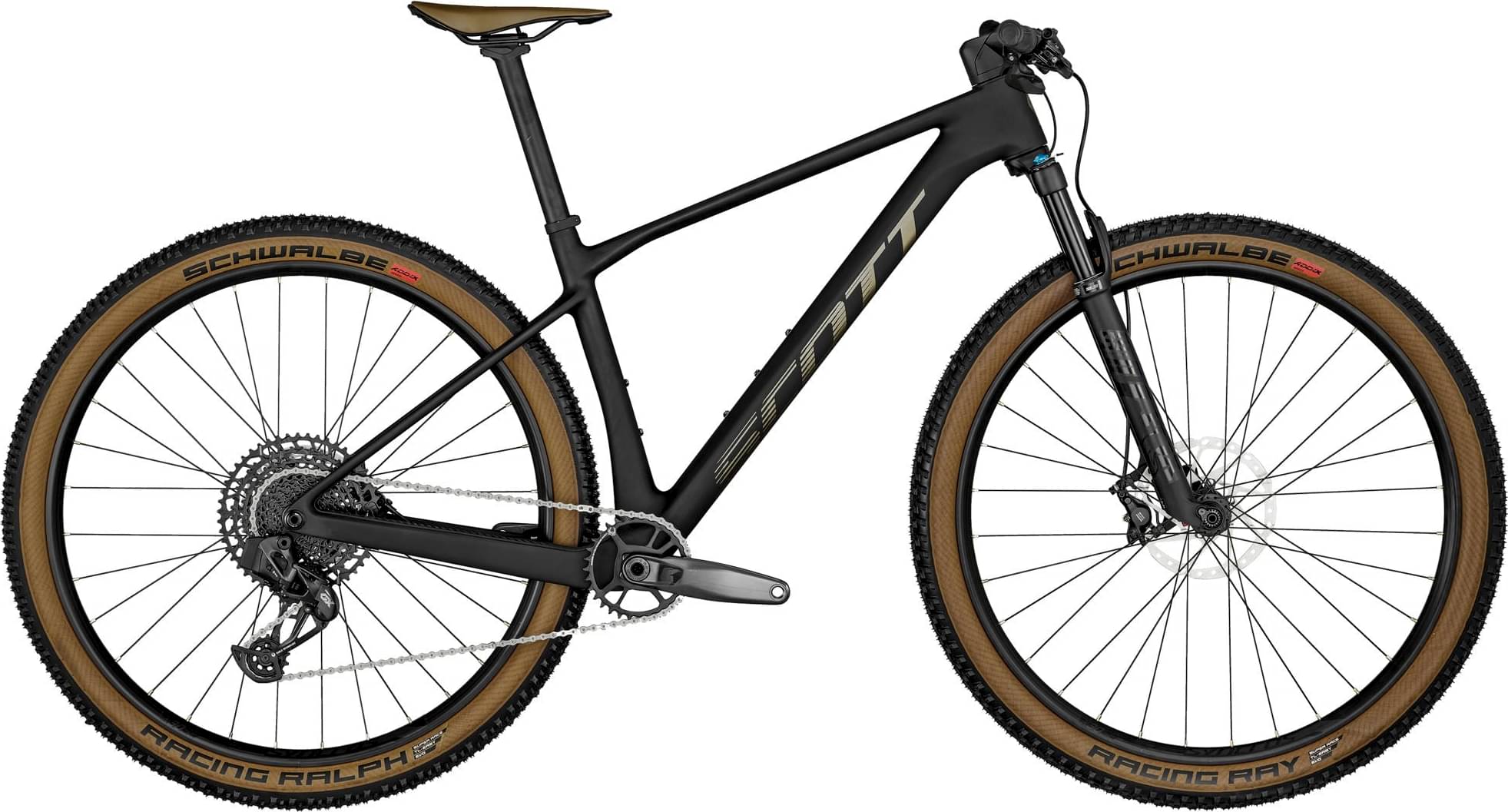

Scott Scale 910 2024
2024 Mountain
Estimate price |
4,071$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset X1, GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scale Carbon HMF; Adjustable head angle / Syncros Cable Integration System; Advanced Shock & Standing Damping System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 32 SC Float Performance Air Grip; 3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer; Lockout / Reb. Adj. / 100mm travel
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12 Speed; Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM NX-PG1230 / 11-50 T
Crank
SRAM X1 Eagle DUB; 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN NX Eagle
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula CL-148S / 12x148mm
Rims
Syncros X-30SE / 32H / 30mm; Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Schwalbe Racing Ray 29x2.35" EVO; Super Race / TLE / 67EPI / Addix Speed Grip, Rear: Schwalbe Racing Ralph 29x2.35" EVO; Super Race / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
Shimano SLX M7100 Disc Brake
Cockpit
Stem
Syncros XC 1.5; Syncros Cable Integration System; -12° rise / 7050 Alloy / 31.8mm / 1 1/8"
Handlebar
Syncros Fraser 1.5 XC Alloy 7075 D.B.; Flat Bar / 8° / 740mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra Regular 2.0; CrMo rails
Seatpost
Syncros Duncan 2.0; 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.368 mm | 1.335 mm | 1.279 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 688 mm | 713 mm | 740 mm | 771 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105.1 mm | 105 mm | 105 mm | 105 mm |
| Stack | 600.3 mm | 604.9 mm | 618.9 mm | 628.1 mm |
| Reach | 418.5 mm | 442.3 mm | 463.6 mm | 491.2 mm |
| Top Tube Length | 575 mm | 600.2 mm | 626 mm | 656.5 mm |
| Seat Tube Angle | 75.4 ° | 75.4 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1105 mm | 1131 mm | 1158 mm | 1189 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 752 mm | 781 mm | 800 mm | 835 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
