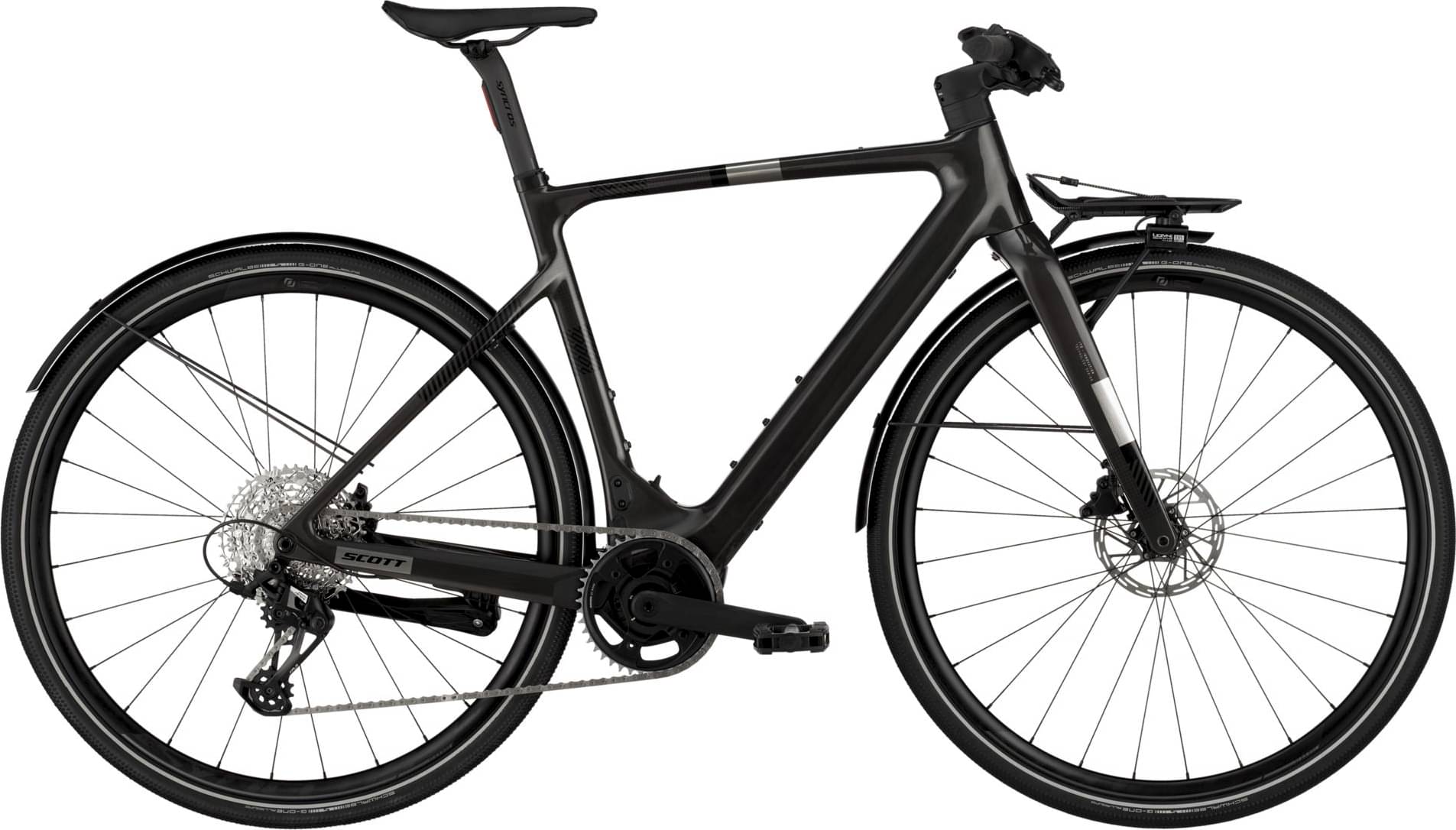

Scott Silence 20 2025
2025 E-bike
Estimate price |
6,979$
Weight | 14.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Apex XPLR, SX Eagle -
Suspension Rigid -
Motor TQ 50Nm mid-drive -
Battery TQ Internal 360Wh -
Drivetrain 1 × 12 -
Brakes TRP Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silence Disc HMX; Urban/Street geometry / Syncros Cable Integration System; TQ HPR50 / UDH Interface / Range Extender Ready
Suspension Fork
Silence HMF Flatmount Disc; 1 1/4"-1 1/2" Eccentric Carbon steerer
Drivetrain
Rear Derailleur
SRAM APEX XPLR; 12 Speed Mechanical Shift System
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM XPLR PG1231; 11-44
Crank
FSA eBike Alloy CK-746
Chain
SRAM APEX
Pedals
Syncros urban flat
Wheels
Rims
Syncros Capital 2.0 Disc; 28 Front 12x100mmTA / 28 Rear 12x142mmTA
Tires
Front: Schwalbe G-One Comp K-Guard; 700x40C, Rear: Schwalbe G-One Comp K-Guard; 700x40C
Brakes
Brakes
TRP HD-EU818s; flatmount
Brake Levers
TRP HD-EU818s; Clean cockpit
Cockpit
Handlebar
Syncros Creston UC iC sport 2.0; Rise Bar Alloy combo
Headset
Acros AIF-1112
Seat
Saddle
Syncros Tofino E 2.0 Channel
Seatpost
Syncros Duncan 1.0 iL D-shape
Motor & Battery
Motor
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 28mph
Battery
TQ Internal 360Wh
Charger
TQ 100-240V-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.518 mm | 1.526 mm | 1.54 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 690 mm | 692 mm | 702 mm | 717 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93.3 mm | 89.7 mm | 82.6 mm | 82.6 mm |
| Stack | 632.2 mm | 634.6 mm | 658 mm | 676.8 mm |
| Reach | 412 mm | 418 mm | 431.3 mm | 439.5 mm |
| Top Tube Length | 585 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74.7 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1150 mm | 1151 mm | 1161 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 800 mm | 810 mm | 825 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
