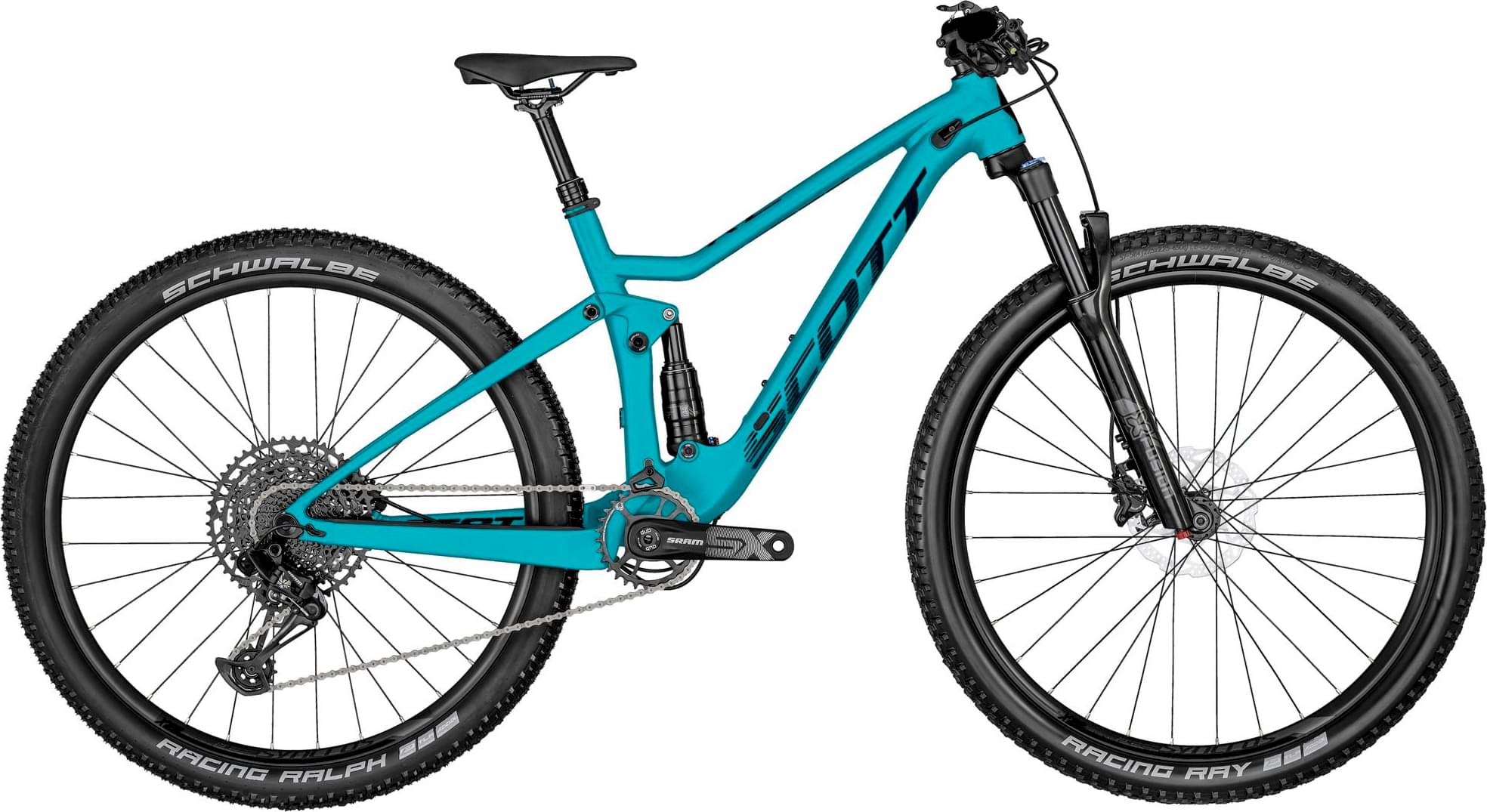

Scott Spark 700 2024
2024 Mountain
Estimate price |
3,489$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork X-Fusion RC32
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark 27.5" Alloy SL 6011; Custom butted hydroformed tubes; Tapered headtube / BB92 / Boost 12x148mm
Suspension Fork
X-Fusion RC32 RC 27.5 / 120mm; Tapered / 15x110mm / Kids' Bike Tune
Rear Shock
X-Fusion 02Pro RL Trunnion; Lockout / Rebound Adjuster / Kids' Bike Tune; Travel 120mm / 165x45mm
Drivetrain
Rear Derailleur
SRAM NX Eagle 12 Speed
Shift Levers
SRAM NX Eagle Trigger / MMX
Cassette
SRAM SX Eagle / PG-1210 / 11-50
Crank
SRAM SX Eagle DUB Boost / 155mm / 30T
Bottom Bracket
SRAM DUB Pressfit / MTB 92
Chain
SRAM CN SX Eagle
Chain Guide
SCOTT custom
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X-25 / 32H / 25mm; Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Front: Schwalbe Racing Ray; Performance / TLR / ADDIX / 27.5x2.25 / 67EPI / folding, Rear: Schwalbe Racing Ralph; Performance /TLR / ADDIX / 27.5x2.5 / 67EPI / folding
Brakes
Brakes
Shimano BR-MT500
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Syncros 6061 Alloy; Oversized 31.8mm / 1 1/8" / 7° angle
Handlebar
Syncros T-Bar / Alloy 6061; T shape Flat / 9° / 680mm; Syncros Youth 115
Headset
Syncros Pro Press Fit / Tapered 1.5"-1 1/8"; OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Future Pro
Seatpost
Syncros Dropper Ducan Remote; 31.6mm / 80mm/ Kid centric custom tune
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.508 mm |
| Bottom Bracket Height | 338.2 mm |
| Front Center | 649 mm |
| Rake | 44 mm |
| Trail | 99.5 mm |
| Stack | 566.7 mm |
| Reach | 375.7 mm |
| Top Tube Length | 550 mm |
| Seat Tube Angle | 72.9 ° |
| Seat Tube Length | 402 mm |
| Head Tube Angle | 67.6 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 428 mm |
| Wheelbase | 1076 mm |
| Bottom Bracket Drop | 19 mm |
| Standover Height | 735 mm |
| Wheels | 27" |
