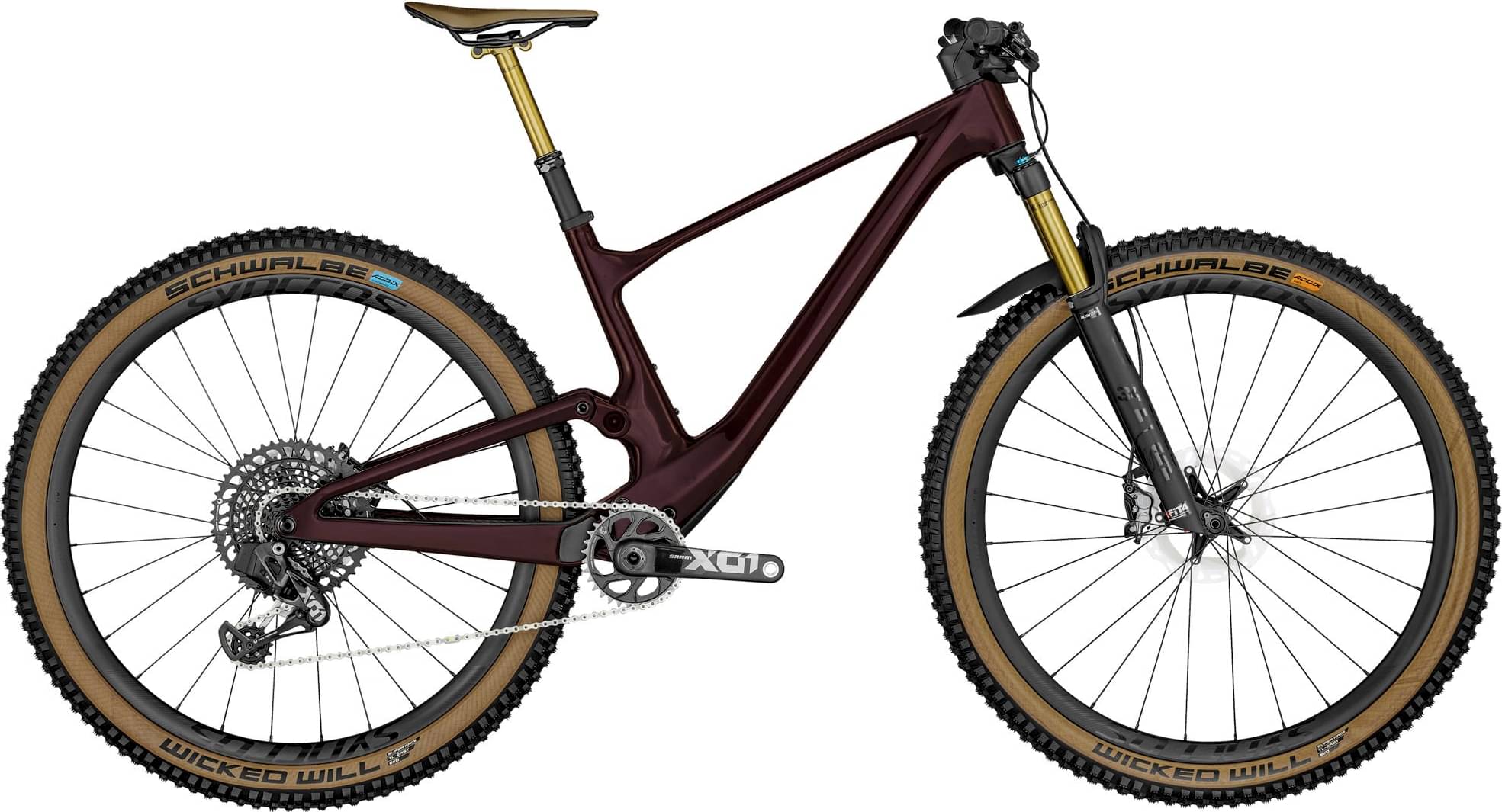

Scott Spark 900 2024
2024 Mountain
Estimate price |
8,999$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X01, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark Carbon HMF; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 Float Factory Air / Kashima FIT4; 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset; Tapered steerer / Lockout / Reb. Adj.; 130mm travel
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Custom large Air volume / DPS / Kashima / Reb. Adj.; Travel 120-80-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS 12 Speed; Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM X01 XG1295 / 10-52 T
Crank
SRAM X01 DUB Eagle Carbon crankarm; 55mm CL / 32T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN X01 Eagle
Wheels
Rims
Syncros Silverton 1.0-30 6 Bolt; F: 15x110mm, R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss Ratchet Hubs / XD Driver; SRAM TyreWiz / Syncros SL Axle w/Removable Lever; with 6mm Allen, T30 and T25 Tools
Tires
Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
Shimano XT M8120 4 Piston Disc
Cockpit
Handlebar
Syncros Fraser iC SL DC Carbon; 0° rise / back sweep 8° / mini Rise / 760mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino 1.5 Regular; Titanium rails
Seatpost
FOX Transfer Factory Dropper Post Kashima; 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.381 mm | 1.314 mm | 1.254 mm |
| Bottom Bracket Height | 331.5 mm | 331.5 mm | 331.5 mm | 331.5 mm |
| Front Center | 711 mm | 740 mm | 771 mm | 802 mm |
| Rake | 42 mm | 41 mm | 38 mm | 35 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 607.5 mm | 607.5 mm | 617.7 mm | 627 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 561 mm | 589 mm | 613 mm | 641 mm |
| Seat Tube Angle | 75.7 ° | 75.9 ° | 76.4 ° | 76.7 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1145 mm | 1174 mm | 1205 mm | 1236 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 759 mm | 767 mm | 778 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
