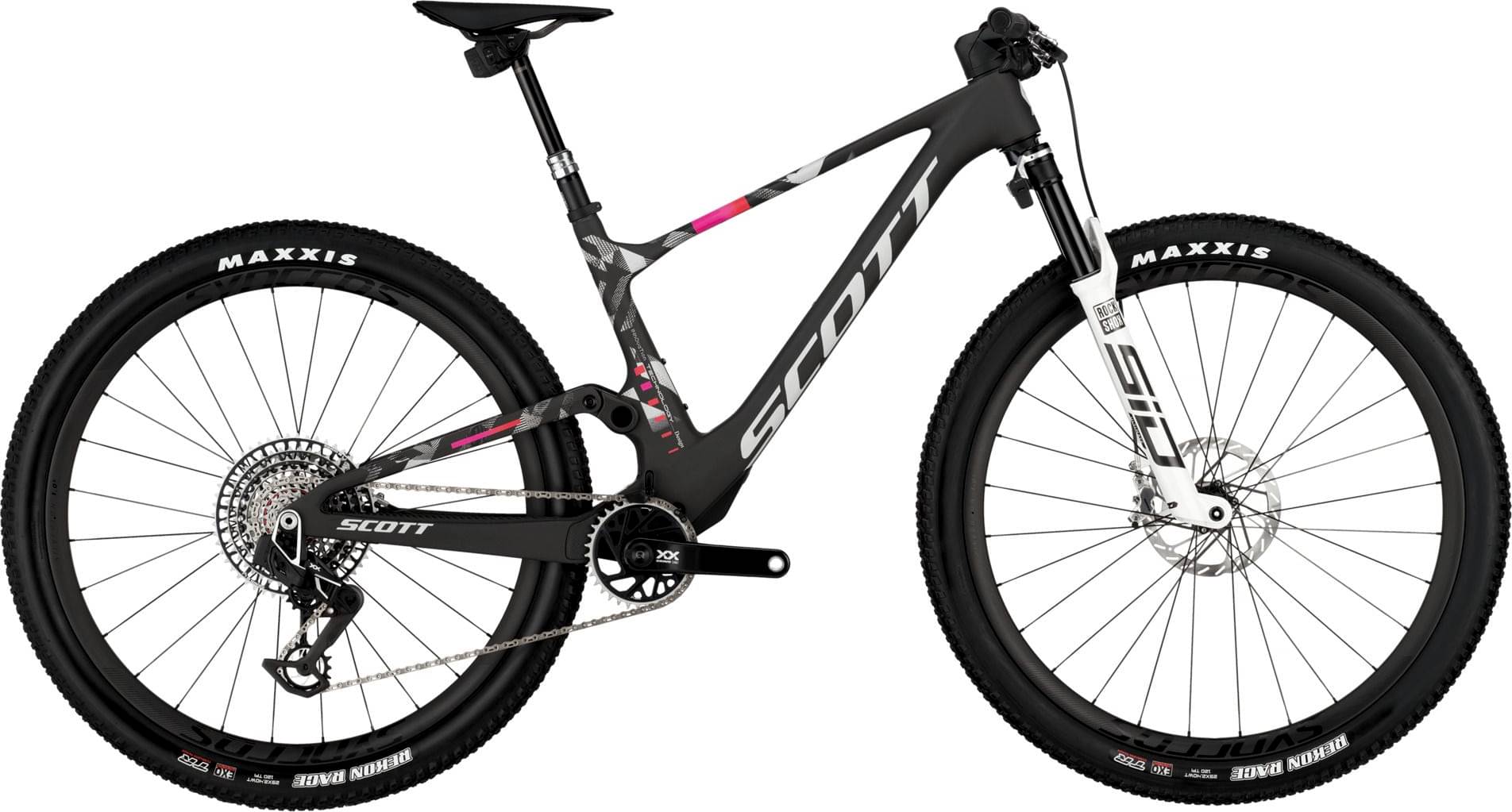

Scott Spark RC World Cup EVO 2025
2025 Mountain
Estimate price |
13,959$
Weight | 10.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission, XX Eagle Transmission -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spark RC Carbon HMX; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
RockShox SID Ultimate Flight Attendant; Electronically controlled Suspension; FA Race Day damper 3 Modes; 15x110mm Maxle Stealth / 44mm offset /Tapered steerer; Lockout / Reb. Adj. / 120mm travel
Rear Shock
RockShox SIDLuxe Ultimate Flight Attendant Custom; Electronically controlled Suspension; 3 Modes Lockout-Pedal-Descend; Solo Air / Reb. Adj./ Lockout / Travel 120mm / T165X45mm
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System
Shift Levers
SRAM AXS Rocker Pod Controller
Cassette
SRAM XX SL Eagle XS 1299 Transmission 10-52
Crank
SRAM XX Eagle AXS Transmission; Carbon crankarm / Spindle Power Meter; DUB / 55mm CL / 34T
Bottom Bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN XX SL Eagle Transmission
Chain Guide
SCOTT custom
Wheels
Rims
Syncros Silverton 1.0S-30 CL; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss 240 Ratchet EXP 36 / XD Driver; SRAM TyreWyz Ready / Syncros SL Axle w/Removable Lever; with 6mm Allen; T30 and T25 Tools
Tires
Front: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead; Tubeless Ready / EXO, Rear: Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead; Tubeless Ready / EXO
Brakes
Brakes
SRAM Level Ultimate Stealth 4-Piston Disc
Cockpit
Handlebar
Syncros Fraser iC SL XC Carbon; -12° rise / back sweep 8° / 740mm; Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; Stainless; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Belcarra 1.0 Regular 1.0; Carbon rails
Seatpost
Rock Shox Reverb AXS 31.6mm / S size 100mm / M; L & XL size 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.366 mm | 1.308 mm | 1.248 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 695 mm | 725 mm | 756 mm | 797 mm |
| Rake | 45 mm | 45 mm | 40 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 602.5 mm | 602.5 mm | 616 mm | 625 mm |
| Reach | 411 mm | 441 mm | 471 mm | 501 mm |
| Top Tube Length | 562 mm | 590 mm | 614 mm | 642 mm |
| Seat Tube Angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| Seat Tube Length | 415 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1129 mm | 1159 mm | 1190 mm | 1231 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 758 mm | 765 mm | 776 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
