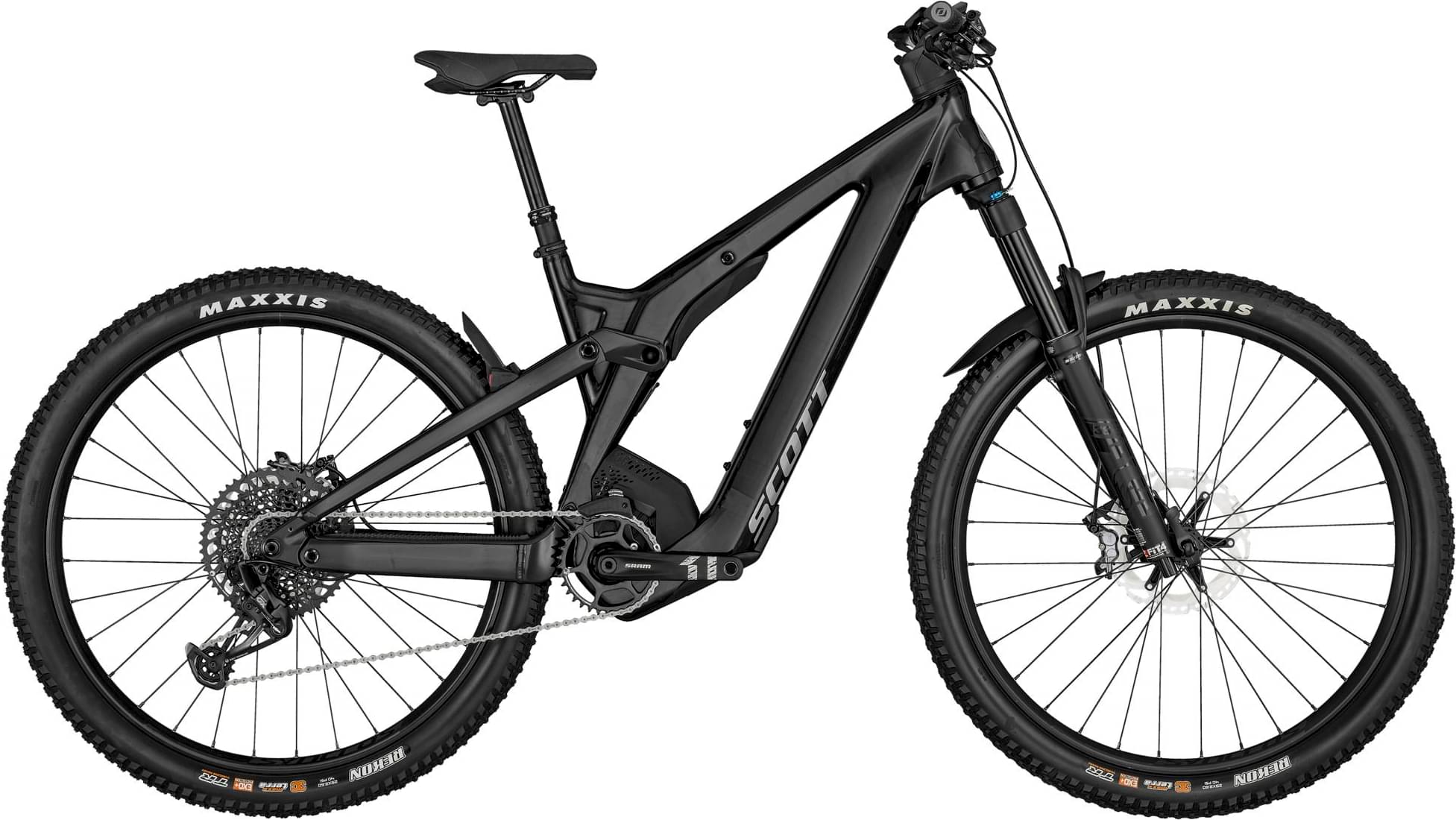

Scott Strike eRIDE 900 EVO 2024
2024 E-bike
Estimate price |
7,999$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset X1, GX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Main Frame / Alloy SST-CST-Link; Virtual 4 link kinematic VLK; 29x2.6 / Boost 148x12mm UDH; 150mm travel / Bosch Gen4 / Integr. removable Battery; 1.8" Headtube, Central Kickstand Mount; Integr. Cable
Suspension Fork
FOX 36 Perf. Elite Air / eMTB+ / FIT4; 3 modes with low Speed adj. / QR Axle 15x110mm axle; 44mm offset / tapered steerer / Reb. Adj. / Lockout / 150mm travel
Rear Shock
FOX Float EVOL eRIDE Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 150mm / 205x55mm
Drivetrain
Rear Derailleur
SRAM GX Eagle / 12 Speed
Shift Levers
SRAM GX Eagle Single Click
Cassette
SRAM XG1275 / 10-52T
Crank
SRAM X1 1000 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM CN NX Eagle
Chain Guide
e*thirteen / e*spec Slider
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula ECT-1481 / Boost 148x12mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint; Tubeless ready
Spokes
Stainless Black
Tires
Front: Maxxis Rekon / 29x2.6" / 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra, Rear: Maxxis Rekon / 29x2.6" / 120TPI Foldable Bead; EXO+ / TR Tubeless ready; 3C Maxx Terra
Brakes
Brakes
Shimano XT / BR-M8120 4 Piston
Cockpit
Stem
Syncros AM1.5 / 7050 Alloy; 31.8mm / 4° / 1 1/8"
Handlebar
Syncros Hixon 1.5 Rise / Alloy 2014D.B.; 20mm rise / 8° / 760mm; Syncros Comfort lock-on grips
Headset
Acros / 1.8"; ZS66 OD74 / 12mm Adapter / integr. Cable
Seat
Saddle
Syncros Capilano
Seatpost
FOX Transfer Dropper Post; 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.441 mm | 1.375 mm | 1.318 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 769 mm | 779 mm | 811 mm | 843 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 133.3 mm | 129.5 mm | 129.5 mm | 129.5 mm |
| Stack | 634.8 mm | 642.2 mm | 651.3 mm | 660.4 mm |
| Reach | 432.7 mm | 445.8 mm | 473.6 mm | 501.2 mm |
| Top Tube Length | 579.4 mm | 595 mm | 625.6 mm | 656.4 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 410.5 mm | 440.5 mm | 470.4 mm | 500.4 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1228 mm | 1238 mm | 1270 mm | 1302 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 766 mm | 766 mm | 766 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
