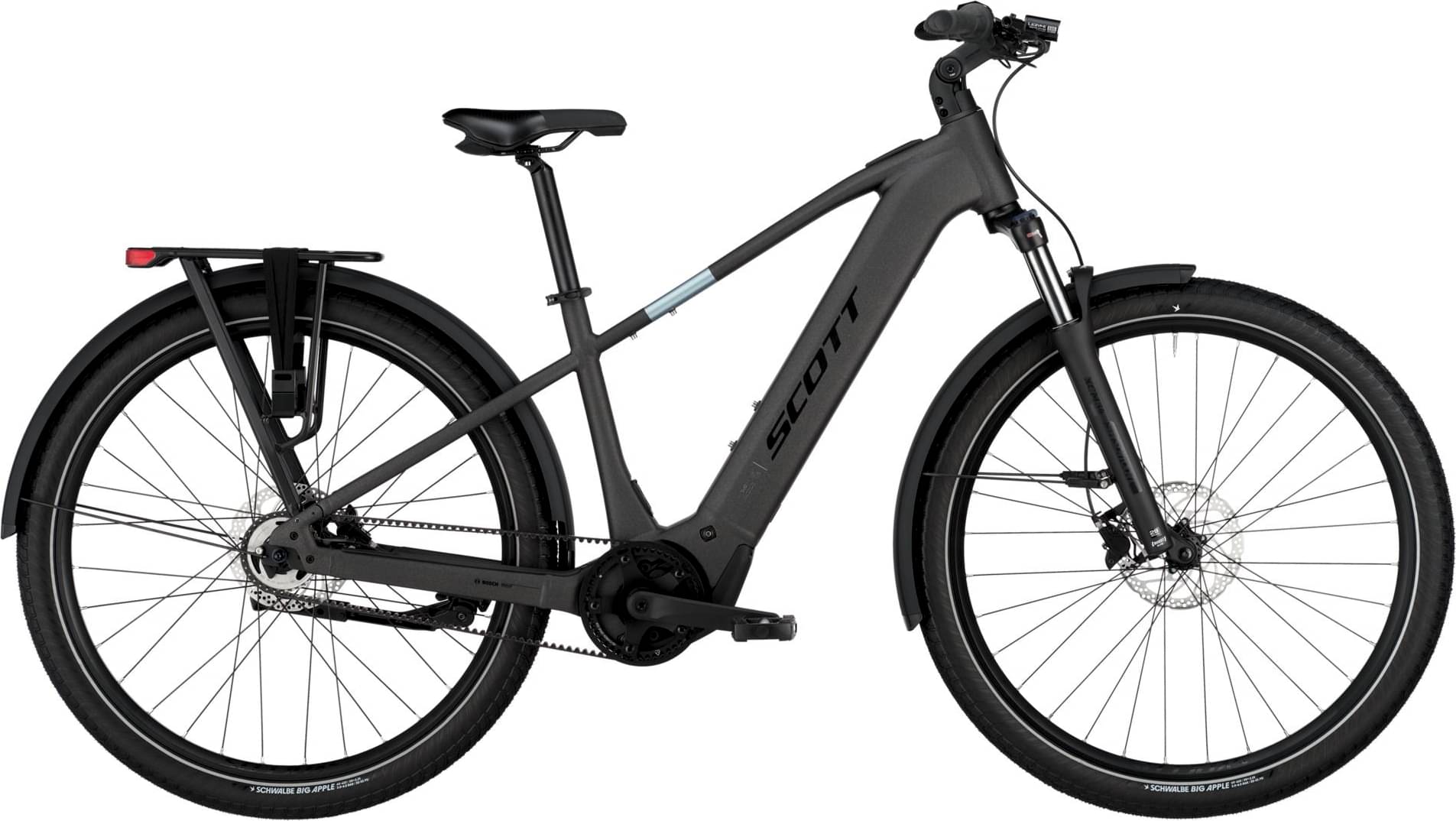

Scott Sub 20 Belt 2025
2025 E-bike
Estimate price |
5,234$
Weight | 28.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 46mm -
Fork Suntour XCM
-
Groupset Nexus -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery PowerTube 800Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing; Side extraction battery; UDH Interface / 135mm with 46mm Beltline
Suspension Fork
SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 100mm Travel
Drivetrain
Shift Levers
Shimano Nexus Inter 5e
Cassette
Gates CDX 32T
Crank
FSA CK-220 170mm
Chain
Gates CDX 130T
Pedals
Marwi SP-828
Wheels
Front Hub
Shimano HBTC50015BB CL / 15x110mm
Rear Hub
Shimano Nexus Inter 5e
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Big Apple Performance; 60-622, Rear: Schwalbe Big Apple Performance; 60-622
Brakes
Brakes
Shimano BR-MT200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
Handlebar
Syncros UC3.0 680mm / Rise 12mm / Backsweep 15°
Headset
Acros / 1.5"- 1.5"; semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Performance CX; EU: 25kmh
Battery
PowerTube 800Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.495 mm | 1.443 mm | 1.41 mm | 1.377 mm |
| Bottom Bracket Height | 302.4 mm | 302.4 mm | 302.4 mm | 302.4 mm | 302.4 mm |
| Front Center | 733 mm | 724 mm | 733 mm | 754 mm | 776 mm |
| Rake | 62 mm | 54 mm | 54 mm | 53 mm | 54 mm |
| Trail | 115.6 mm | 115.6 mm | 108.3 mm | 108.3 mm | 108.3 mm |
| Stack | 636 mm | 636 mm | 641 mm | 651 mm | 660 mm |
| Reach | 425.4 mm | 425.4 mm | 444.2 mm | 461.8 mm | 479.4 mm |
| Top Tube Length | 577 mm | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 370 mm | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1205 mm | 1197 mm | 1205 mm | 1227 mm | 1248 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 752 mm | 767 mm | 768 mm | 805 mm | 840 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
